PROGRESSA+ PUSH - USA

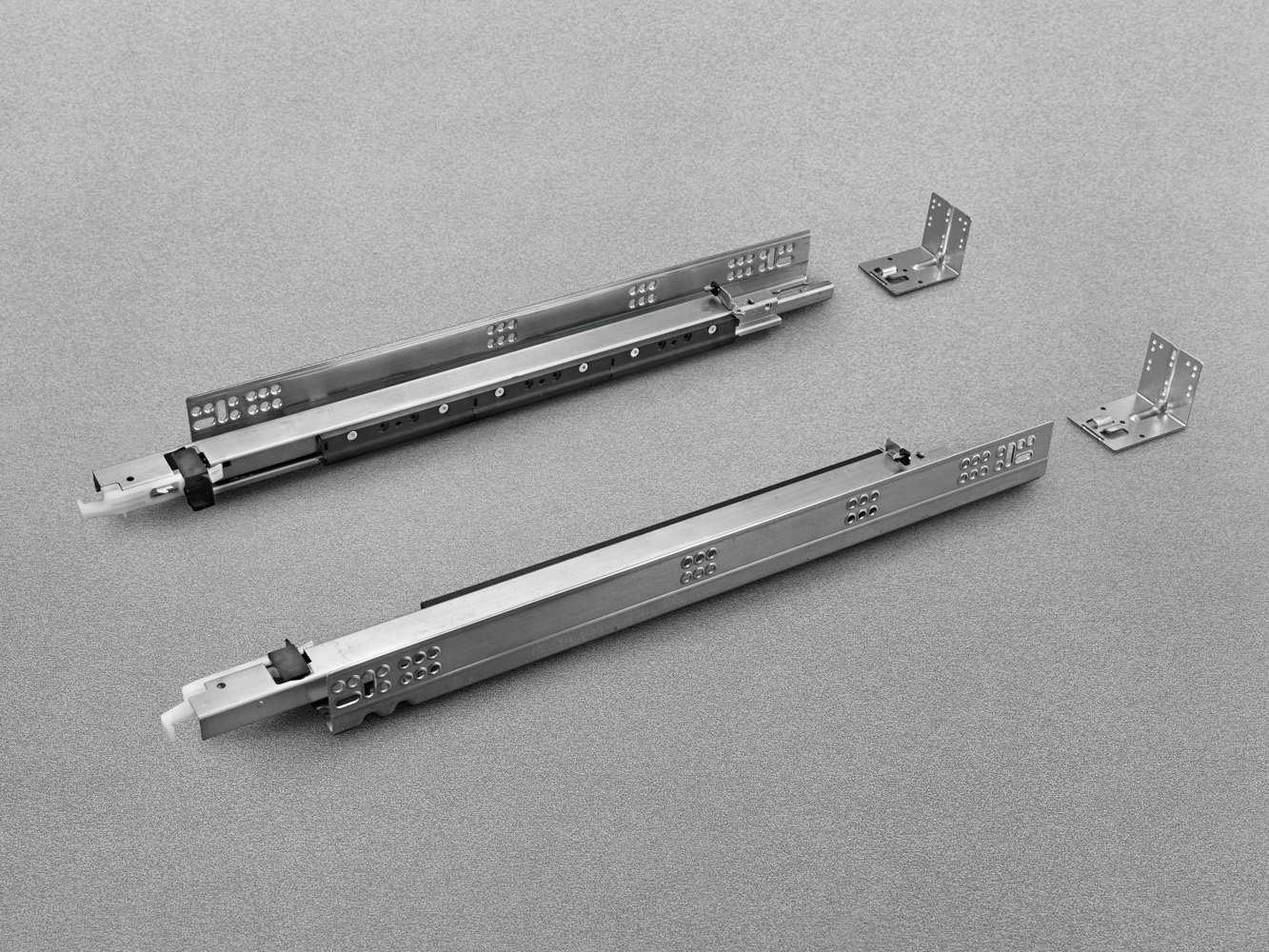

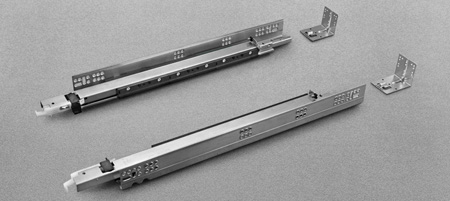

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Face frame assembly with socket.
Blocked out face frame cabinets or frameless.
Please note that any load over 75 LBS requires a filler in addition to rear sockets.

Drawer length (LC): 381 mm (15")
Runner length (LN): 390 mm
Minimum inside cabinet depth: 399 mm
Minimum inside cabinet depth (metal socket): 402 mm
Maximum inside cabinet depth (metal socket): 447 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Face frame assembly with socket.
Blocked out face frame cabinets or frameless.
Please note that any load over 75 LBS requires a filler in addition to rear sockets.

Drawer length (LC): 457 mm (18")
Runner length (LN): 466 mm
Minimum inside cabinet depth: 475 mm
Minimum inside cabinet depth (metal socket): 478 mm
Maximum inside cabinet depth (metal socket): 523 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Face frame assembly with socket.
Blocked out face frame cabinets or frameless.
Please note that any load over 75 LBS requires a filler in addition to rear sockets.

Drawer length (LC): 533 mm (21")
Runner length (LN): 542 mm
Minimum inside cabinet depth: 551 mm
Minimum inside cabinet depth (metal socket): 554 mm
Maximum inside cabinet depth (metal socket): 599 mm

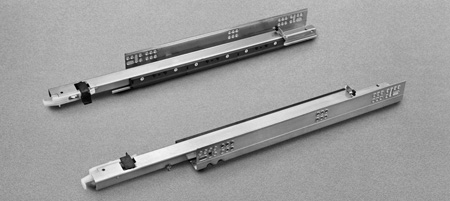

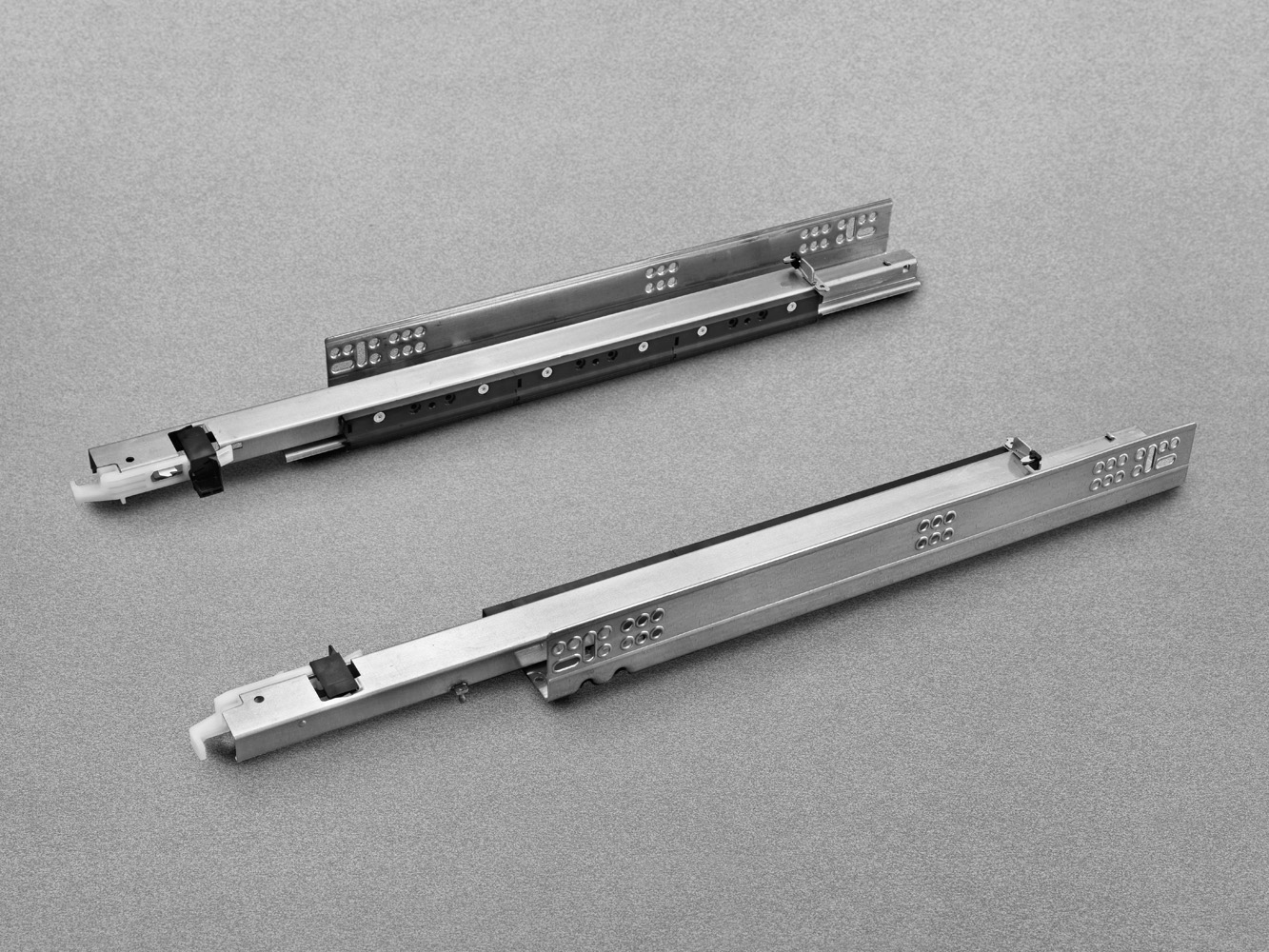

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 457 mm (18")
Runner length (LN): 465 mm
Minimum inside cabinet depth: 474 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 533 mm (21")
Runner length (LN): 541 mm
Minimum inside cabinet depth: 550 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 610 mm (24")
Runner length (LN): 618 mm
Minimum inside cabinet depth: 627 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 686 mm (27")
Runner length (LN): 694 mm
Minimum inside cabinet depth: 703 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 762 mm (30")
Runner length (LN): 770 mm
Minimum inside cabinet depth: 779 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Face frame assembly with socket.
Blocked out face frame cabinets or frameless.

Drawer length (LC): 381 mm (15")
Runner length (LN): 392 mm
Minimum inside cabinet depth: 401 mm
Minimum inside cabinet depth (metal socket): 404 mm
Maximum inside cabinet depth (metal socket): 447 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Face frame assembly with socket.
Blocked out face frame cabinets or frameless.

Drawer length (LC): 457 mm (18")
Runner length (LN): 468 mm
Minimum inside cabinet depth: 477 mm
Minimum inside cabinet depth (metal socket): 480 mm
Maximum inside cabinet depth (metal socket): 523 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Face frame assembly with socket.
Blocked out face frame cabinets or frameless.

Drawer length (LC): 533 mm (21")
Runner length (LN): 544 mm
Minimum inside cabinet depth: 553 mm
Minimum inside cabinet depth (metal socket): 556 mm
Maximum inside cabinet depth (metal socket): 599 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 457 mm (18")
Runner length (LN): 468 mm
Minimum inside cabinet depth: 477 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 533 mm (21")
Runner length (LN): 544 mm
Minimum inside cabinet depth: 553 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 610 mm (24")
Runner length (LN): 621 mm
Minimum inside cabinet depth: 630 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 686 mm (27")
Runner length (LN): 697 mm
Minimum inside cabinet depth: 706 mm

Full extension runner for 19 mm (3/4”) drawer material thickness.

Blocked out face frame cabinets or frameless.

Drawer length (LC): 762 mm (30")
Runner length (LN): 773 mm
Minimum inside cabinet depth: 782 mm

Front locking devices - Standard mount - Side and depth adjustments

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Pre-drilling recommended ø 2.5 mm (3/32”).

Front locking devices - Vertical mount - Side and depth adjustments

For all Progressa and Progressa+ slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Height of the sub front must be 13 mm (1/2”).
Pre-drilling recommended ø 2.5 mm (3/32”).

Push Synchronizer

The synchronization system for Push-to-Open Progressa+ slides has been developed to ensure that wider drawers can be opened with minimum effort.
The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.
1 box = 20 single kits.

Standard metal socket

For Progressa full extension runners.
Lateral self-alignment feature.
One piece stamped metal, zinc-coated.
Non-handed.
Use a minimum of 4 screws per socket.
1 box = 100 pcs.

Narrow metal socket

For Progressa full extension runners.
Lateral self-alignment feature.
One piece stamped metal, zinc-coated.
Non-handed.
Use a minimum of 4 screws per socket.
1 box = 100 pcs.

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

Optional tilt adjustment levers

Maximum 3 mm (1/8”) rise of drawer back (tool free).
1 box = 12 pcs right / 12 pcs left.

Side spacer

For spacing out Progressa runners for clearance on interior roll-outs.
1 box = 100 pcs.

Spacer for 1/2" drawer sub-fronts

For drawer sides with sub-fronts between 12 and 13 mm (1/2"), we recommend the use of the build-up spacer.
To be used with AFCGXX3B and AFCEX56B front locking device (right and left).
Spacer can be fit to any size by breaking tabs.
1 box = 100 pcs.

Wood screw

Wood screw # 6 x 16 mm (5/8").
1 box = 100 pcs.

Euro screws

Euro screws # 6 x 11 mm (7/16").
1 box = 100 pcs.

Euro screws

Euro screws # 6 x 14.5 mm (9/16").
1 box = 100 pcs.

Pozi driver

1 box = 100 pcs.

ø 6 mm drill bit for rear hook

1 box = 1 pc.

Hex key to lock the stop collar set screw onto the 6 mm drill bit

1 box = 1 pc.

Drill bit stop collar for 6 mm bit

1 box = 1 pc.
