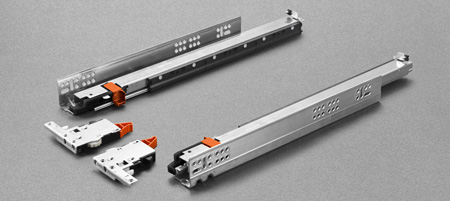

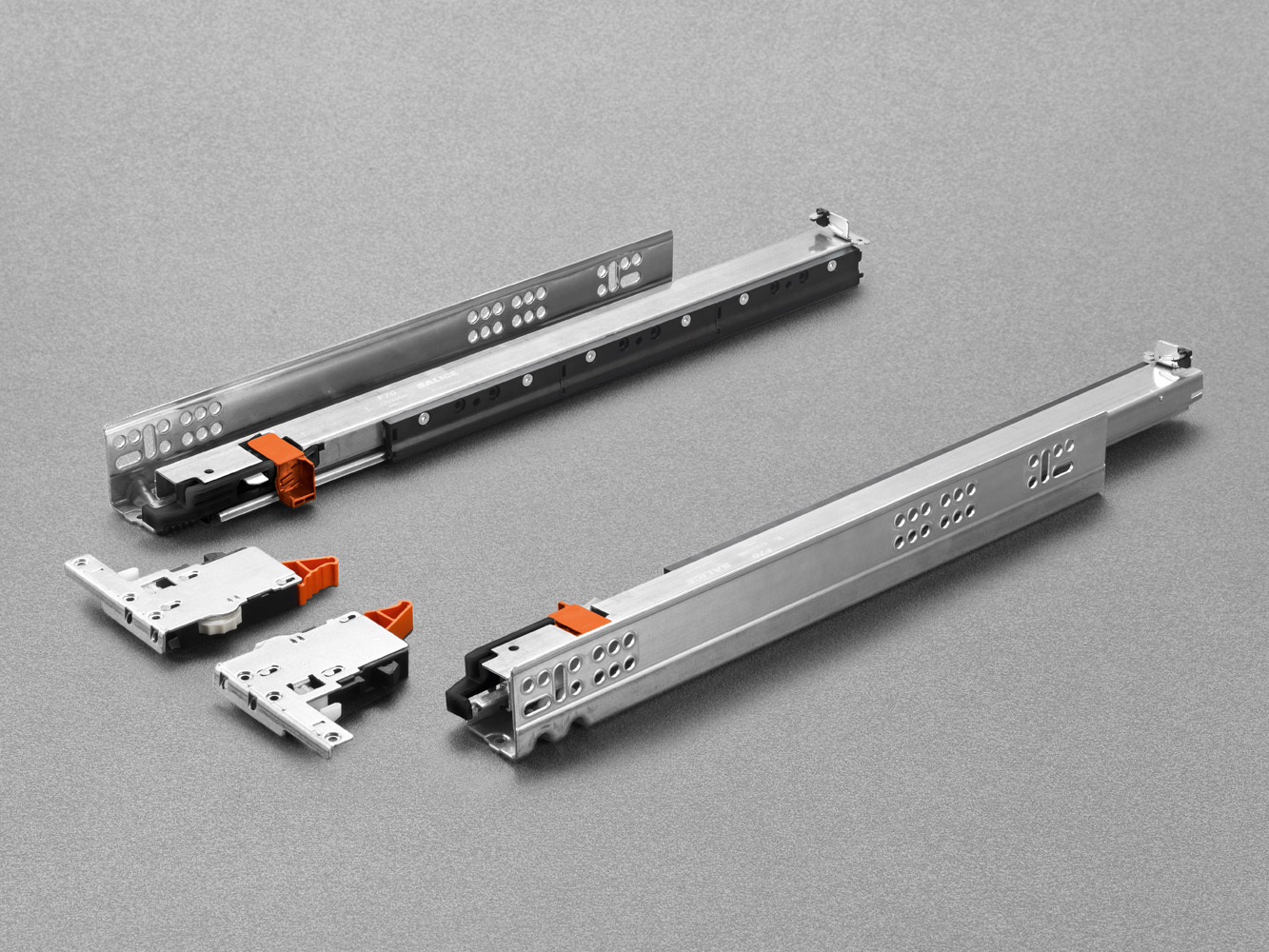

PROGRESSA SMOVE - CANADA
True progressive actionHigh-performance, undermount drawer runner that redefines precision and durability
- 55 kg Static Load Capacity
- 45 kg Dynamic Load Capacity
- Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard
- Compatible with drawers sides thickness between 13 mm (1/2”) and 16 mm (5/8”)
A cutting-edge generation of high-performance, full extension undermount slides
Crafted using state-of-the-art technology, Progressa slides feature our “S Drive” progressive module, ensuring an unparalleled level of functionality. The rack and pinion guarantees impeccable synchronization, silent movement and optimal stability for a seamless user experience.
A full range of fixing clip options, ranging from stamped steel 6-way adjustable clips with intuitive side, depth and height adjustments to 2-way adjustable locking devices for more competitive markets.
Progressa slides are available in Soft Close version for an enhanced smooth closing action.
- True progressive action
- 55 kg Static Load Capacity, 45 kg Dynamic Load capacity
- Full extension with a synchronized mechanism
- Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard
- Available in lengths ranging from 350 mm to 550 mm in 50 increments
- Enhanced smooth soft closing action
- No additional stabilizer bar needed
- Elongated holes for depth and height adjustments
- Adjustable clips allow for easy drawer insertion and removal
- Tool free height adjustments +2.5 mm
- Tool free depth adjustments +/- 3 mm
- Tool free side adjustments + / - 1.5 mm
- Optional tool free tilt adjustment +3 mm
- Compatible with drawers sides thickness between 13 mm (1/2”) and 16 mm (5/8”)
- Maximum reliability at an everyday price
- 100% Made in Italy
A6555/25 CP6
Full-extension runner fixed to the drawer by clip.
Runner length: 10" (250 mm)
Min. depth of the cabinet: 260 mm
A6555/30 CP6
Full-extension runner fixed to the drawer by clip.
Runner length: 12" (300 mm)
Min. depth of the cabinet: 310 mm
G5E6S350XXF6
Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.
Runner length (LN): 350 mm
Min. depth of the cabinet (PM): 360 mm
G5E6S400XXF6
Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.
Runner length (LN): 400 mm
Min. depth of the cabinet (PM): 410 mm
G5E6S450XXF6
Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.
Runner length (LN): 450 mm
Min. depth of the cabinet (PM): 460 mm
G5E6S500XXF6
Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.
Runner length (LN): 500 mm
Min. depth of the cabinet (PM): 510 mm
G5E6S550XXF6
Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.
Runner length (LN): 550 mm
Min. depth of the cabinet (PM): 560 mm
AFCGXX3B
Front locking devices - Standard mount - Side and depth adjustments
For all Progressa, Progressa+ and Progressa+ Shelf slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Pre-drilling recommended ø 2.5 mm (3/32”).
AFCEX56B
Front locking devices - Standard mount - Front and side fixing
For all Progressa, Progressa+ and Progressa+ Shelf slides.
Engineered thermoplastics.
Compatible with all Progressa slides.
Side fixing option.
Pre-drilling recommended ø 2.5 mm (3/32”).
Minimum inside drawer width 130 mm.
Minimum inside cabinet width 172 mm.
ASGD704U3XA
Drilling templates for drawers
Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.
ASGD504U6XA
Drilling templates for drawers
Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.
AGLRXX3F
Optional tilt adjustment levers
Maximum 3 mm (1/8”) rise of drawer back (tool free).
1 box = 12 pcs right / 12 pcs left.
ASPACERFUT
Side spacer
For spacing out Progressa runners for clearance on interior roll-outs.
1 box = 100 pcs.
AFSFXXB
Spacer for 1/2" drawer sub-fronts
For drawer sides with sub-fronts between 12 and 13 mm (1/2"), we recommend the use of the build-up spacer.
To be used with AFCGXX3B and AFCEX56B front locking device (right and left).
Spacer can be fit to any size by breaking tabs.
1 box = 100 pcs.
V234X164
Wood screw
Wood screw # 6 x 16 mm (5/8").
1 box = 100 pcs.
V136X114
Euro screws
Euro screws # 6 x 11 mm (7/16").
1 box = 100 pcs.
V136X154
Euro screws
Euro screws # 6 x 14.5 mm (9/16").
1 box = 100 pcs.
D2A7XCXCP
Pozi driver
1 box = 100 pcs.
TDB7406R
ø 6 mm drill bit for rear hook
1 box = 1 pc.
TLKEY332
Hex key to lock the stop collar set screw onto the 6 mm drill bit
1 box = 1 pc.
TSC06MM
Drill bit stop collar for 6 mm bit
1 box = 1 pc.
