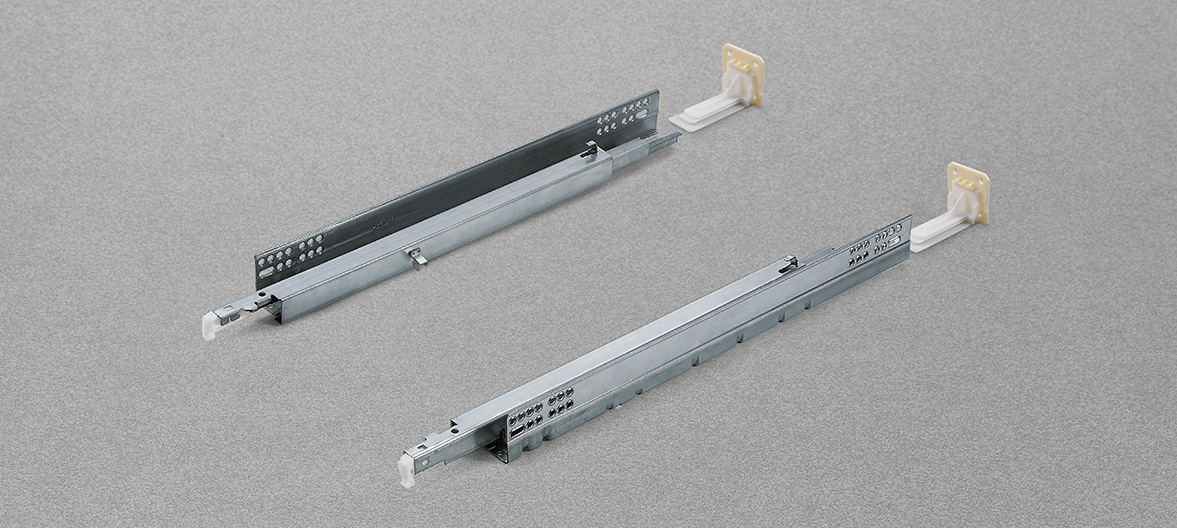

FUTURA PUSH - USA Full extension - A7557-1

FUTURA PUSH - USA

Full extension - A7557

Full-extension runner fixed to the drawer by clip

  • Load capacity: 100 lbs static/75 lbs dynamic
  • Clip with height, side and depth adjustment
  • Full-extension
Fluid, silent and progressive sliding movement

It is available in three versions: with traditional Self-closing, with Push opening in handle-less furniture and with Smove decelerated closing.

FUTURA PUSH - USA Full extension - A7557-2

Push: the opening system for handle-less drawers, is fully integrated in the runner. a slight pressure of the drawer front is enough for the drawer to self-open.



  • For blocked out face frame cabinets or frameless.
  • Product features: ANSI - Grade 1
  • Load capacity: 100 lbs static/75 lbs dynamic.
  • With Push opening system.
  • Adjustable clips allow for easy drawer insertion and removal.
  • The drawer is latched when closed.
  • Finish: bright zinc-plated.
  • For 12 mm (1/2”) to 16 mm (5/8”) drawer material.
  • Optional: Futura Push Synchronizer
  • The synchronization system for Push-to-open Futura runners has been developed to ensure that drawers of any width can be opened with minimum effort. The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.
A7557/229 CP6

Full-extension runner fixed to the drawer by clip.

Drawer length (LC): 229 mm (9")

Runner length (LN): 263 mm

Minimum inside cabinet depth (plastic socket): 266 mm (10-3/4'')

A7557/305 CP6

Full-extension runner fixed to the drawer by clip.

Drawer length (LC): 305 mm (12")

Runner length (LN): 315 mm

Minimum inside cabinet depth (metal socket): 326 mm (12-13/16'')

Minimum inside cabinet depth (plastic socket): 330 mm (13'')

A7557/381 CP6

Full-extension runner fixed to the drawer by clip.

Drawer length (LC): 381 mm (15")

Runner length (LN): 391 mm

Minimum inside cabinet depth (metal socket): 403 mm (15-7/8'')

Minimum inside cabinet depth (plastic socket): 407 mm (16'')

A7557/457 CP6

Full-extension runner fixed to the drawer by clip.

Drawer length (LC): 457 mm (18")

Runner length (LN): 467 mm

Minimum inside cabinet depth (metal socket): 479 mm (18-7/8'')

Minimum inside cabinet depth (plastic socket): 483 mm (19'')

A7557/533 CP6

Full-extension runner fixed to the drawer by clip.

Drawer length (LC): 533 mm (21")

Runner length (LN): 543 mm

Minimum inside cabinet depth (metal socket): 555 mm (21-7/8'')

Minimum inside cabinet depth (plastic socket): 559 mm (22-3/4'')

A710.610
Height adjustable clip
A750.010
6-way adjustable clip

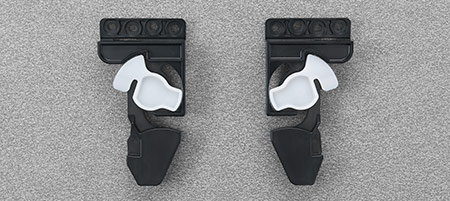

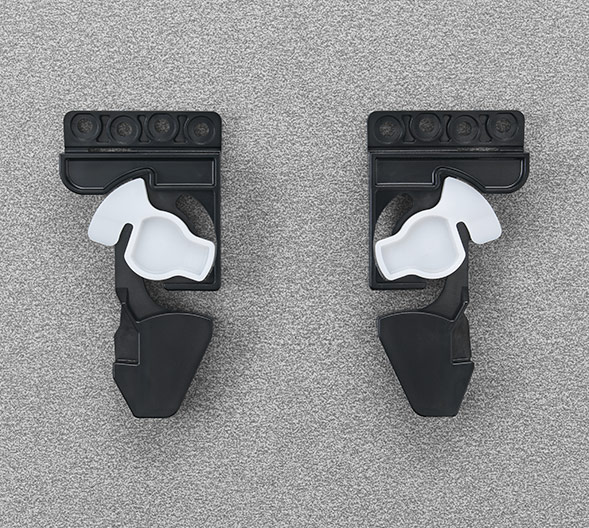

A720.610
Narrow drawer clip
APKFGT51150

Futura Push synchronizer

Developed to ensure that drawers of any width can be opened with minimum effort. Applying pressure on any part of the drawer front (even at the extremities) is sufficient for the drawer to open

A199800755009
Template for drawer drilling and 1-way adjustable clip fixing
A199800755010
Template for drawer drilling and 6-way adjustable clip fixing
A6869400000202

Stabilizer for drawers

To be fitted on both right and left sides of the drawer.
Cam adjustment to allow a perfect bearing of the rollers on the cabinet side.
It improves the overall stability of the drawer.

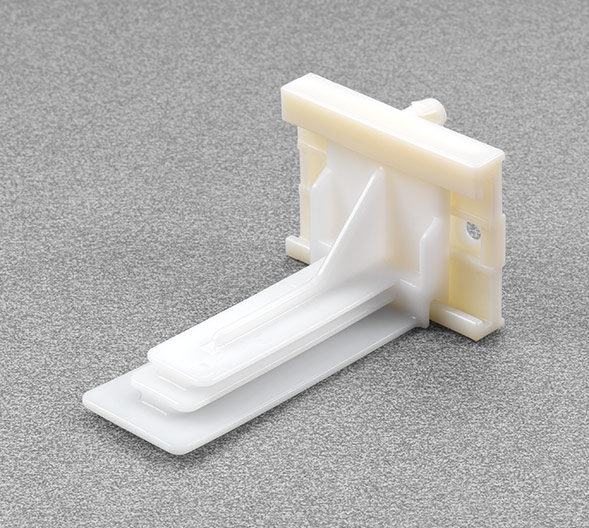

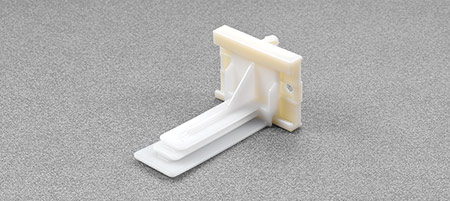

ASO755AJYD

Plug in socket

Lateral self-alignment feature
Two pieces synthetic, natural color
Non-handed
Non-detachable 8 (5/16”) dowels

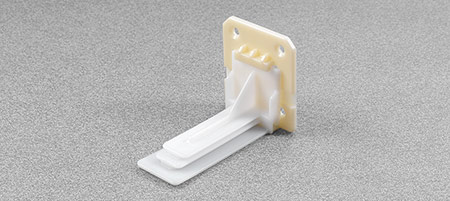

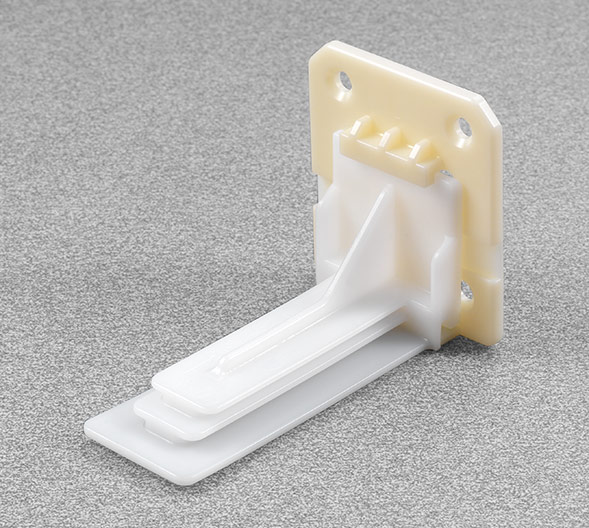

ASO755AJND

Screw on socket

Lateral self-alignment feature
Two pieces synthetic, natural color
Non-handed

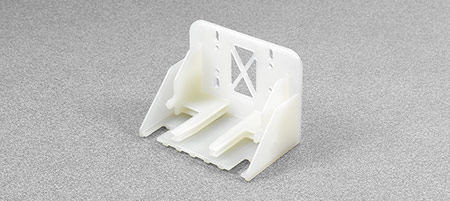

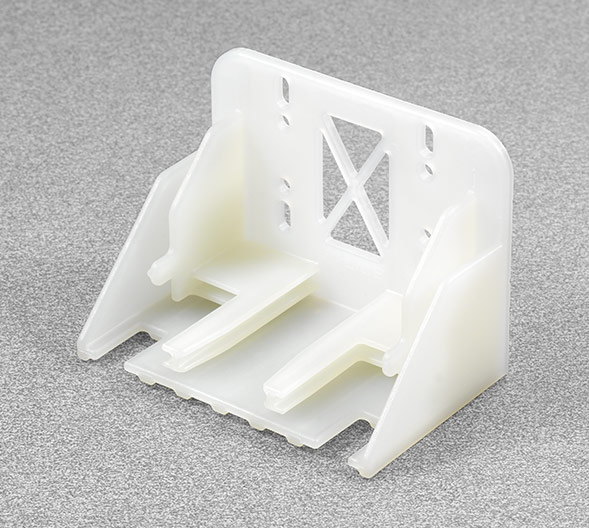

ASO755NAND9

Screw on socket for 9” runner

For 9” Futura runner
One piece synthetic natural color
Lateral self-alignment feature
Non-handed
Use at least two fixing screws

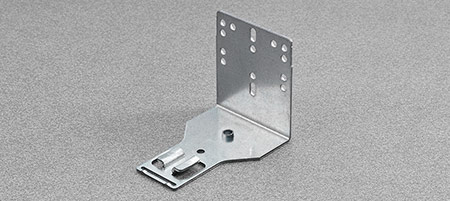

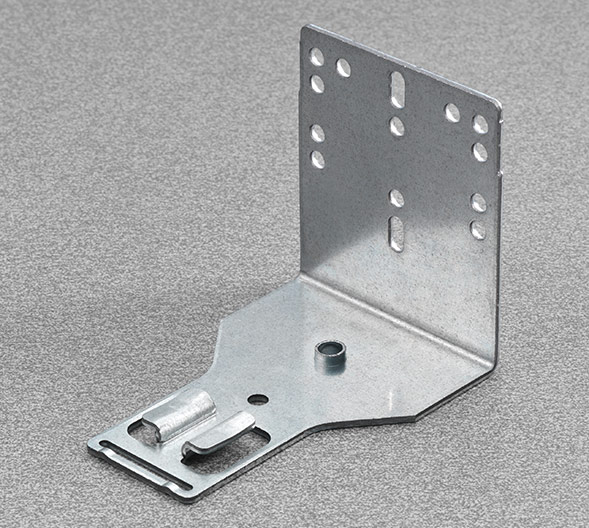

AGSKXC5

Standard steel socket

Lateral self-alignment feature
One piece stamped steel, zinc-coated
Non-handed
Use at least two fixing screws

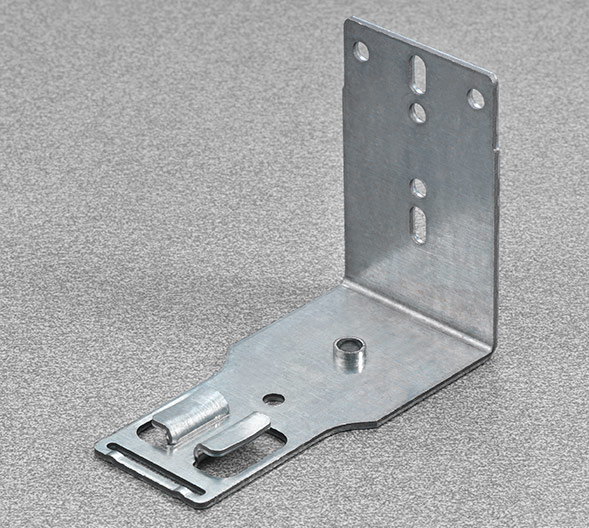

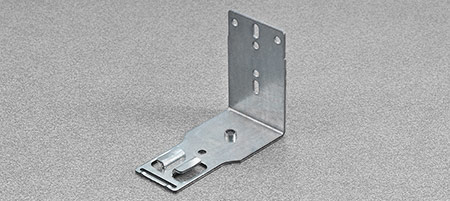

AGSKXR5

Narrow steel socket

Lateral self-alignment feature
One piece stamped steel, zinc-coated
Non-handed
Use at least two fixing screws

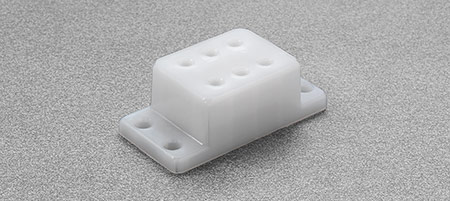

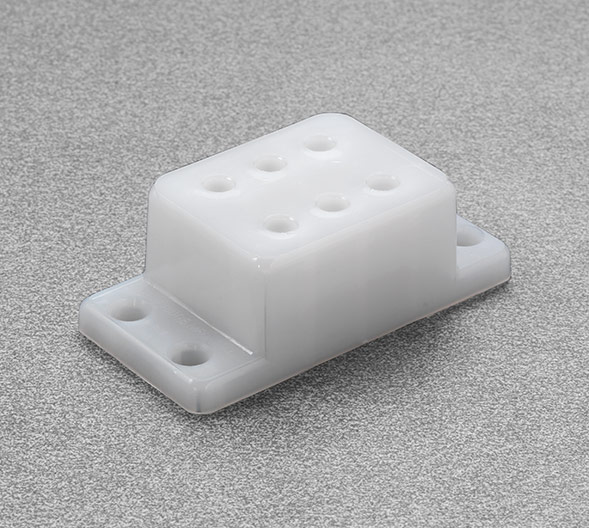

ASPACERFUT

Side spacer

For spacing out Futura runners for clearance on interior roll-outs

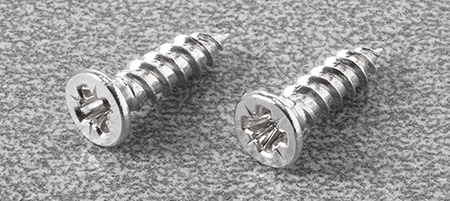

VU73X154

Wood screw

# 6 x 16 mm (5/8”)

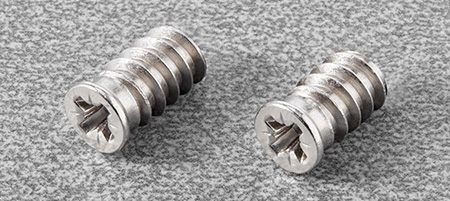

V136X114

Euro screw

# 6 x 11 mm (7/16")

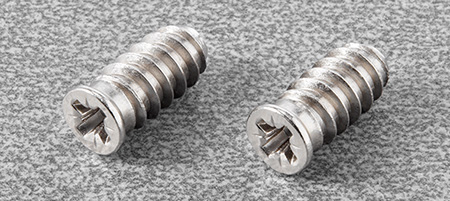

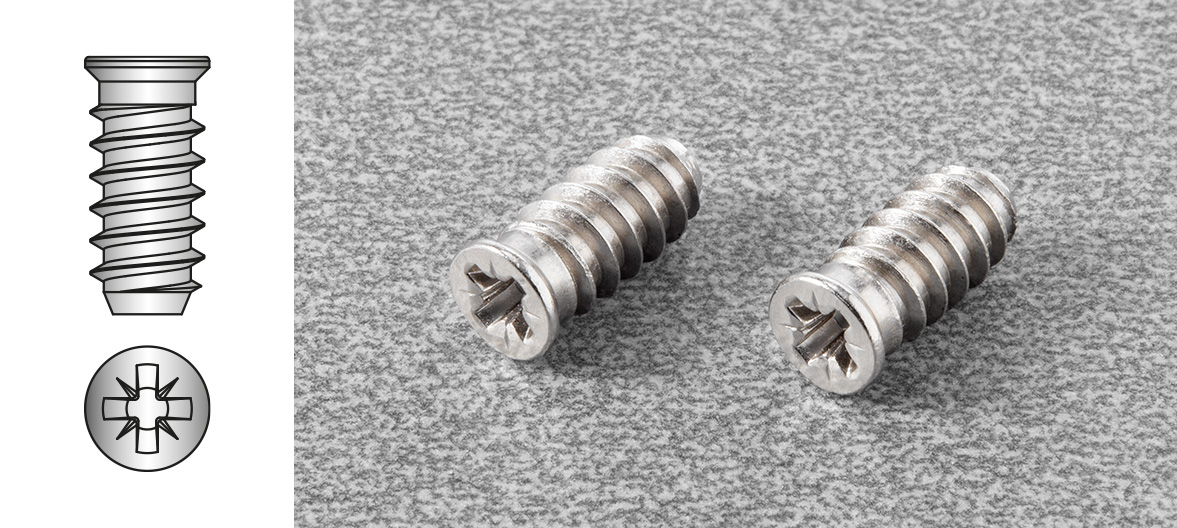

V136X154

Euro screw

# 6 x 14,5 mm (9/16")

Pozi screwdriver D2A7XCXCP

Pozi screwdriver
