Simple clean lines with a minimal wall thickness
Clean and streamlined aestetics uncluttered with holes or assembly components, Lineabox is very versatile and highly customizable. Assembly is rapid without the need for machinery.
Versions:
• Front panel for internal drawer
• Front panel for internal drawer with insert
Available heights:
- Available heights:
• Height of Lineabox side 75 mm - Max. height of front panel 100 mm
• Height of Lineabox side 101 mm - Max. height of front panel 126 mm
• Height of Lineabox side 178 mm - Max. height of front panel 203 mm

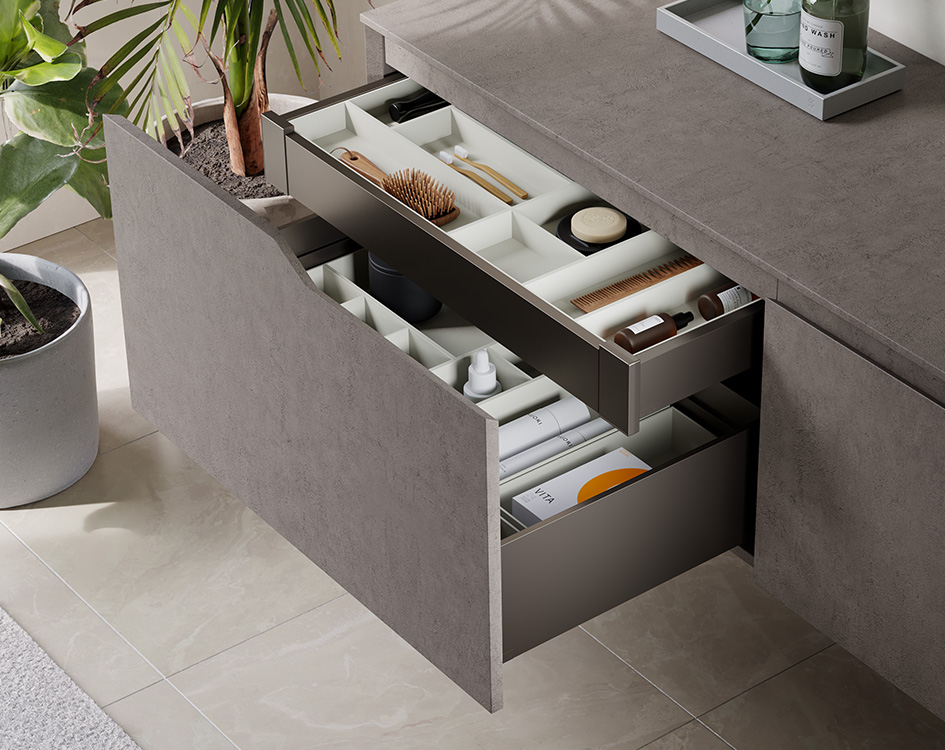

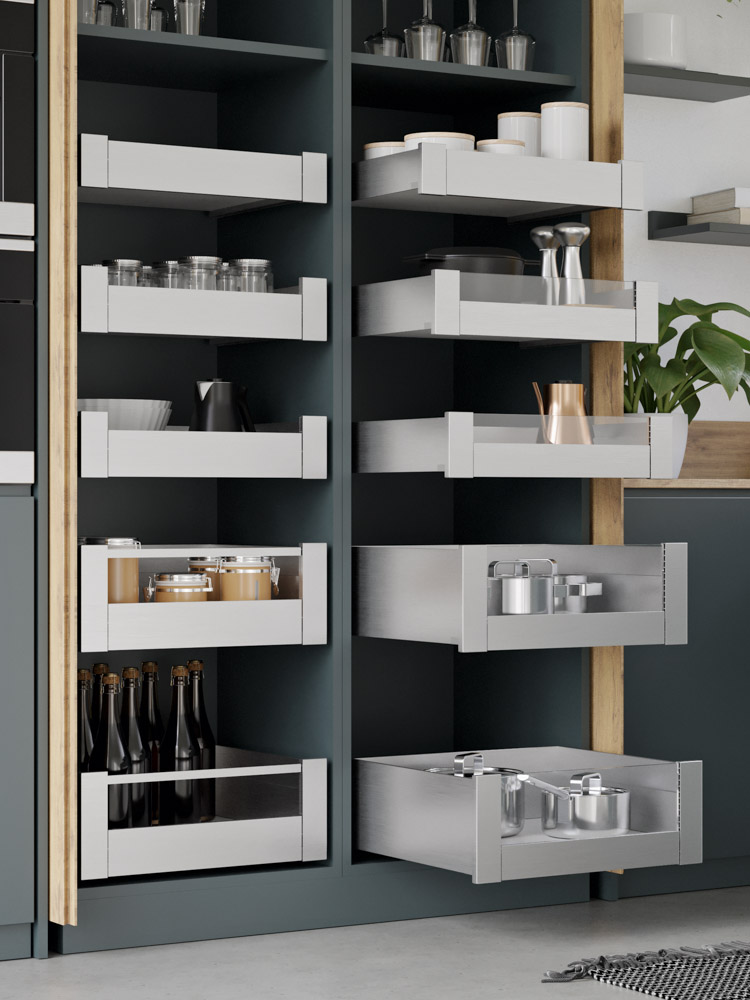

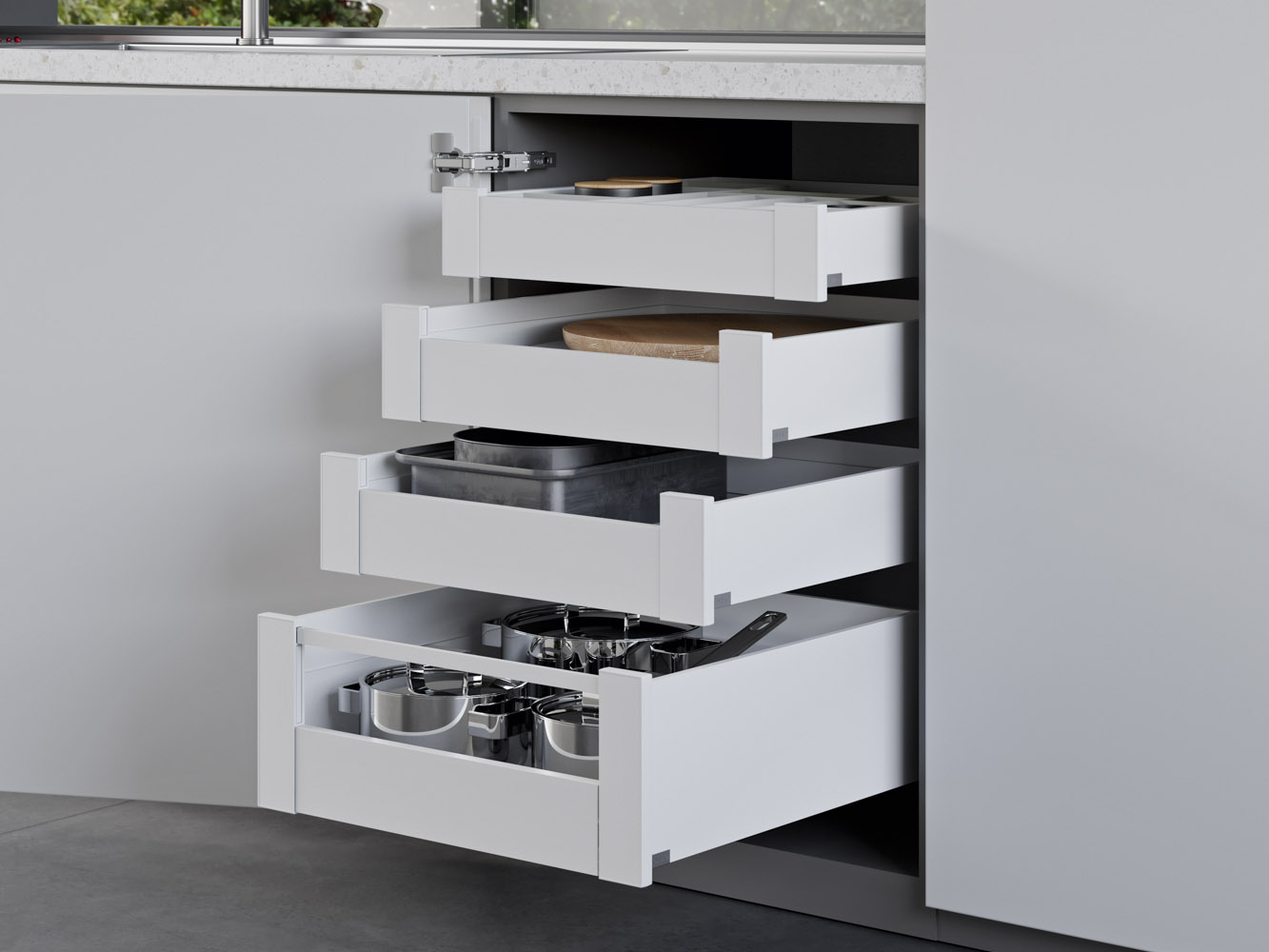

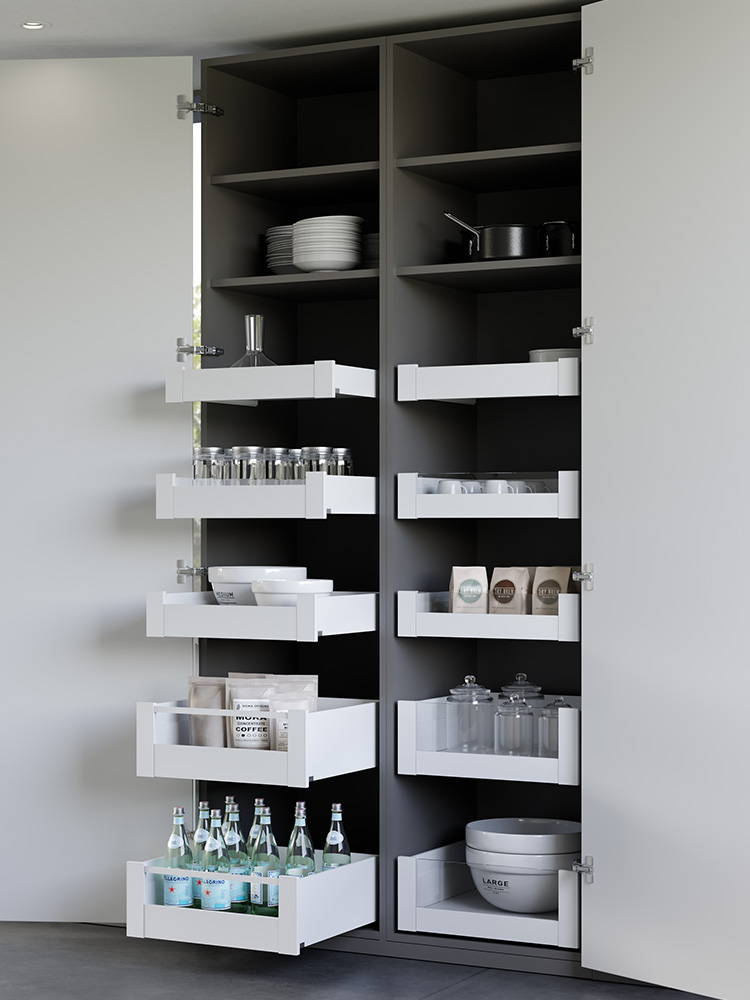

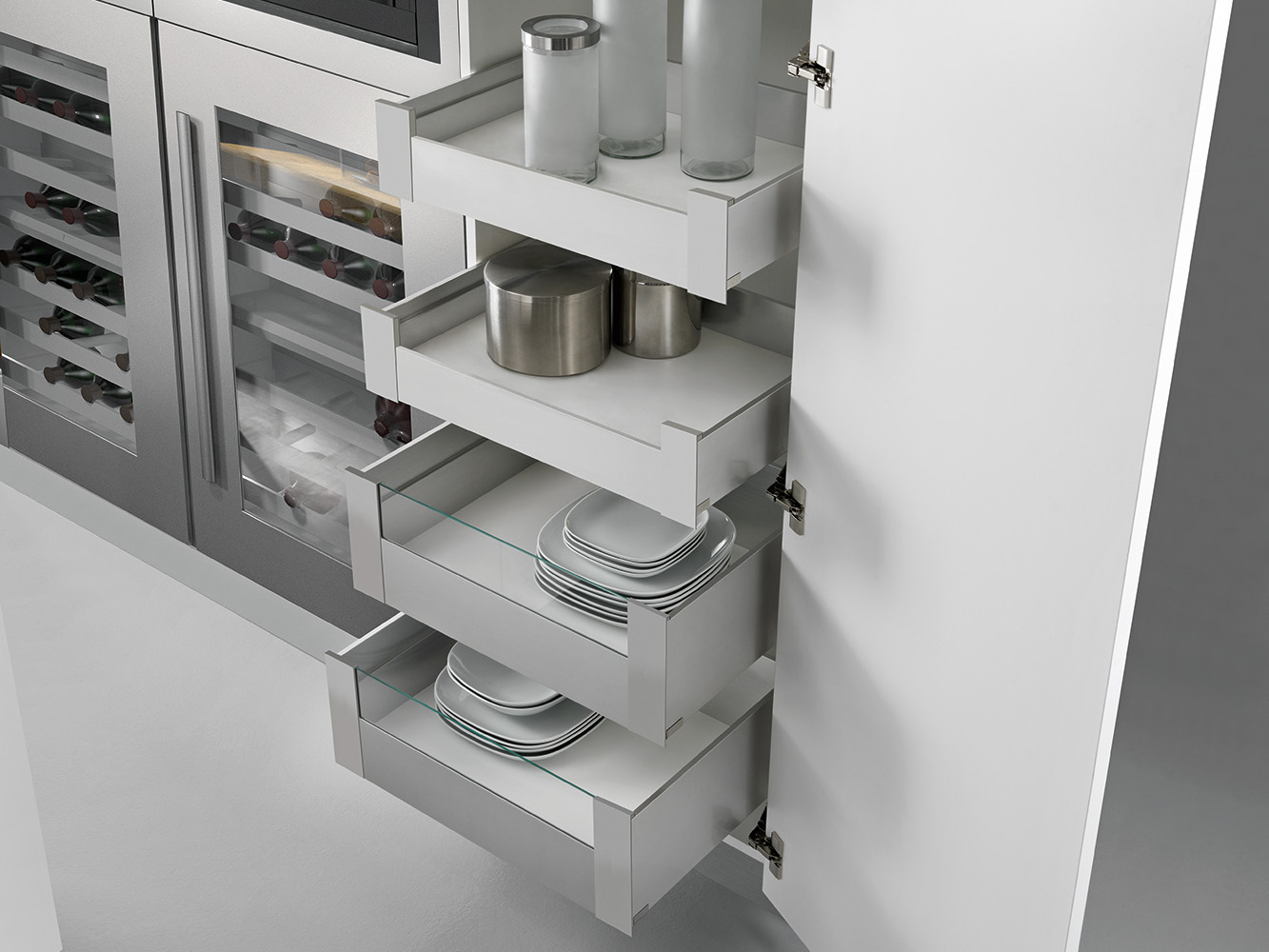

A light and thin drawer, suitable for applications including kitchens, living rooms and office furniture.
Full extension runners enable a fluid and sliding movement.
- For use with Progressa and Futura full-extension runners
- Included material:
- aluminium for front panel
- aluminium railing (only for front panel for internal drawer - H 178 mm)
- plastic for front panel adapters
- metal for covers - Complementary material:
- Lineabox Easy: to choose between 2-Sided, 2-Sided - Inset Back and 3-Sided
- decorative insert not included - Rapid assembly system, with no machinery needed
- Frontal fixings are already premounted
- Rapid mounting and removal of front panel
- Finishes: White - Slate grey - Champagne - Stainless steel
- Internal width of the cabinet: max. 1168 mm

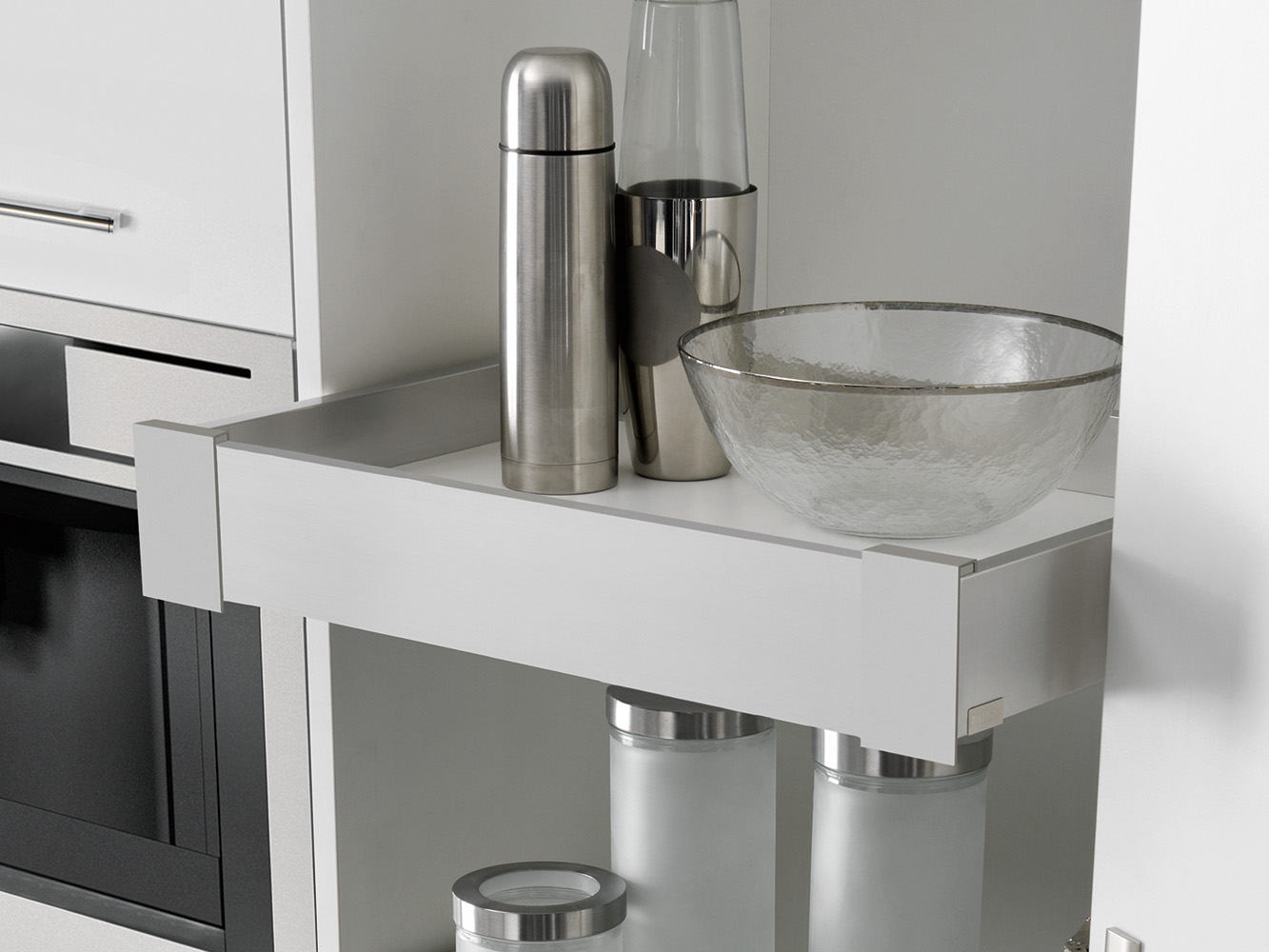

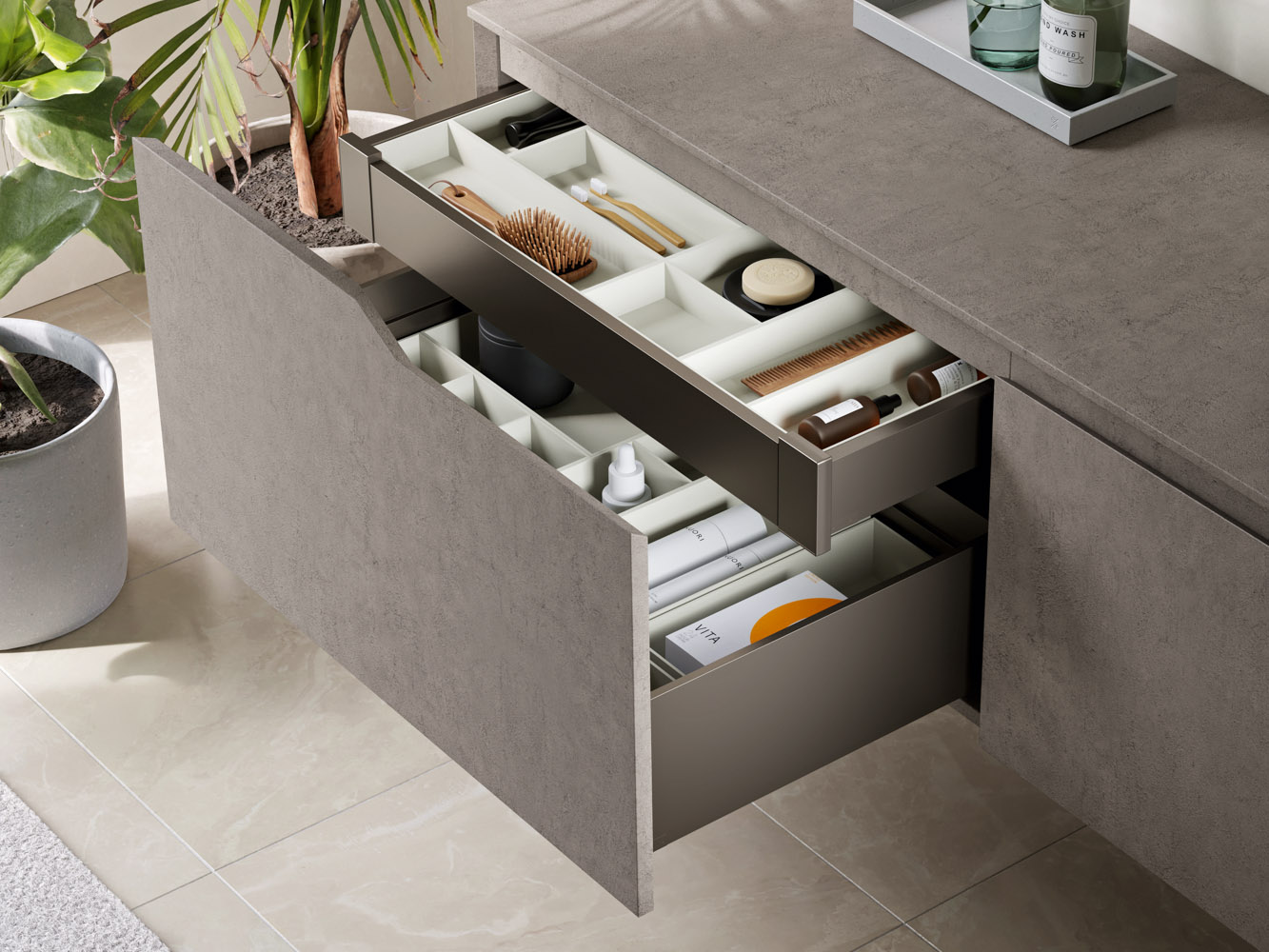

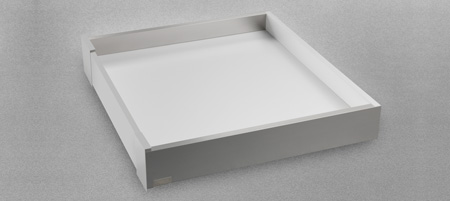

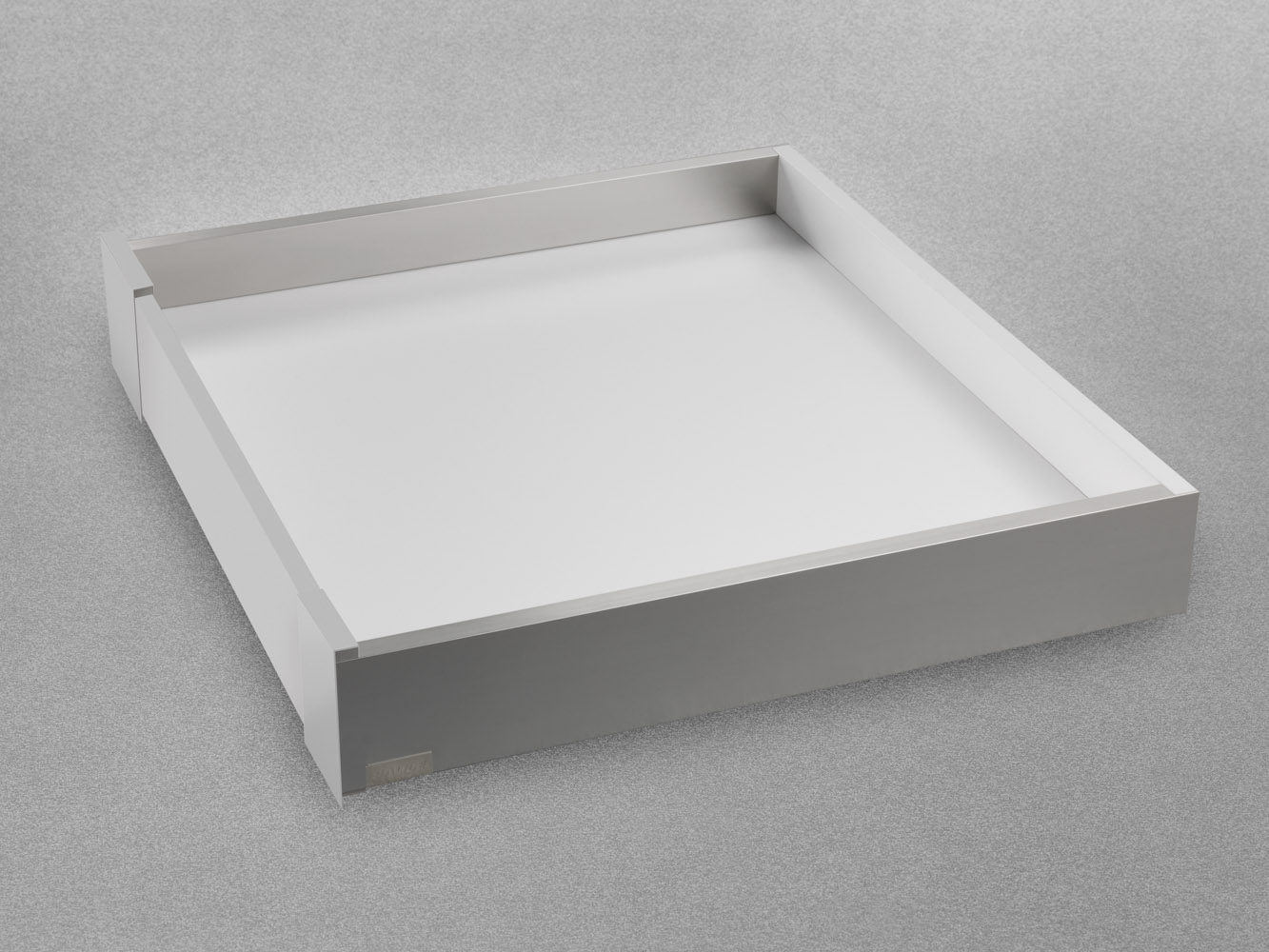

Front panel for internal drawer - H 75 mm
Height of Lineabox Easy side 75 mm
Max. height of front panel 100 mm

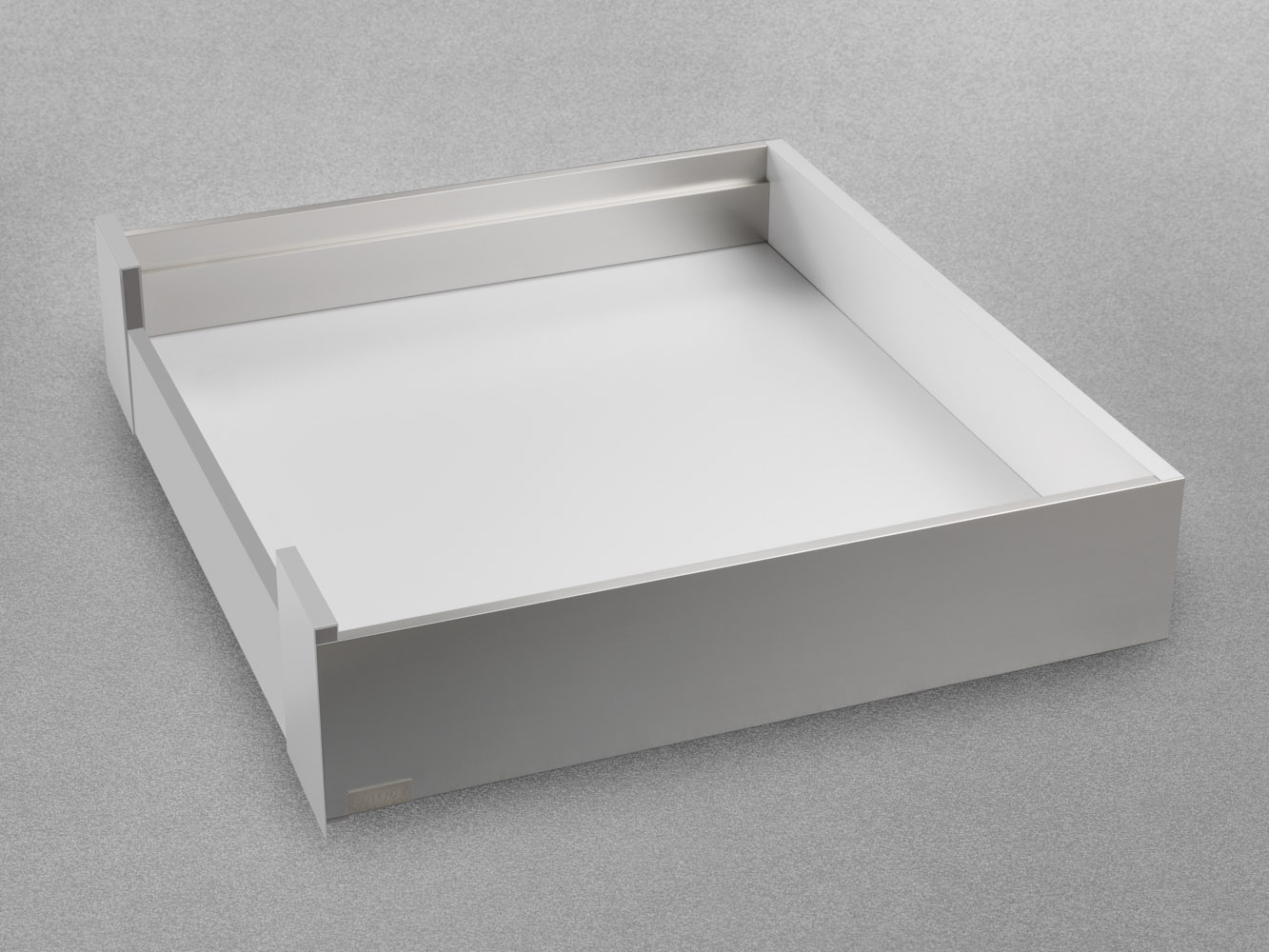

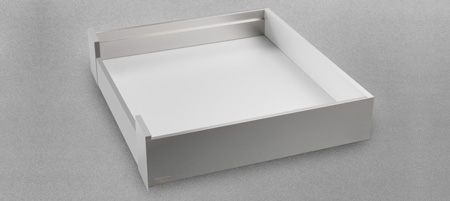

Front panel for internal drawer - H 101 mm
Height of Lineabox Easy side 101 mm
Max. height of front panel 126 mm

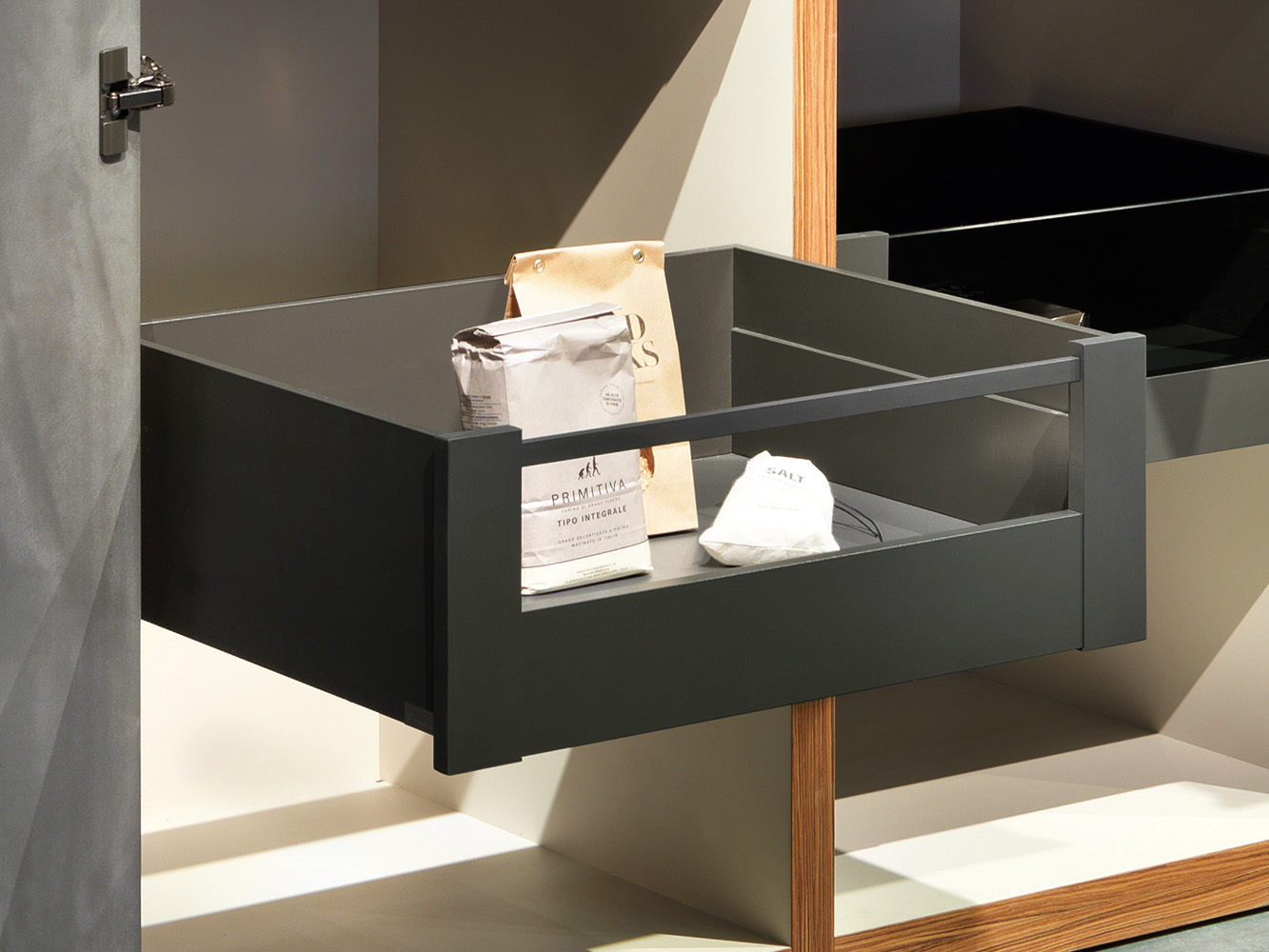

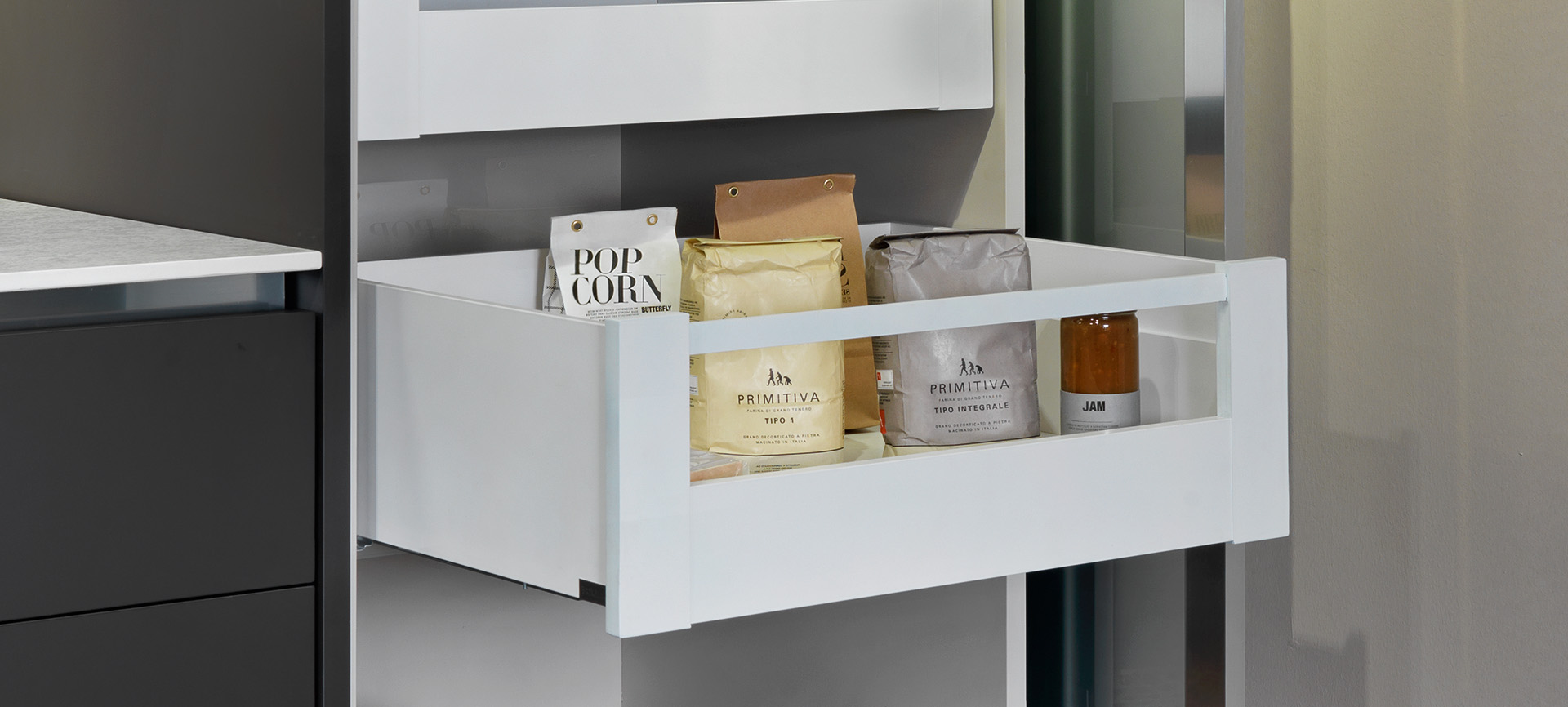

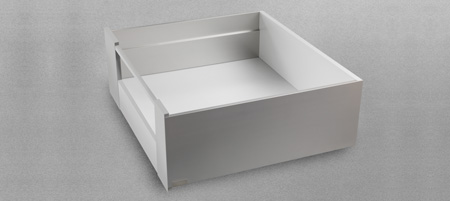

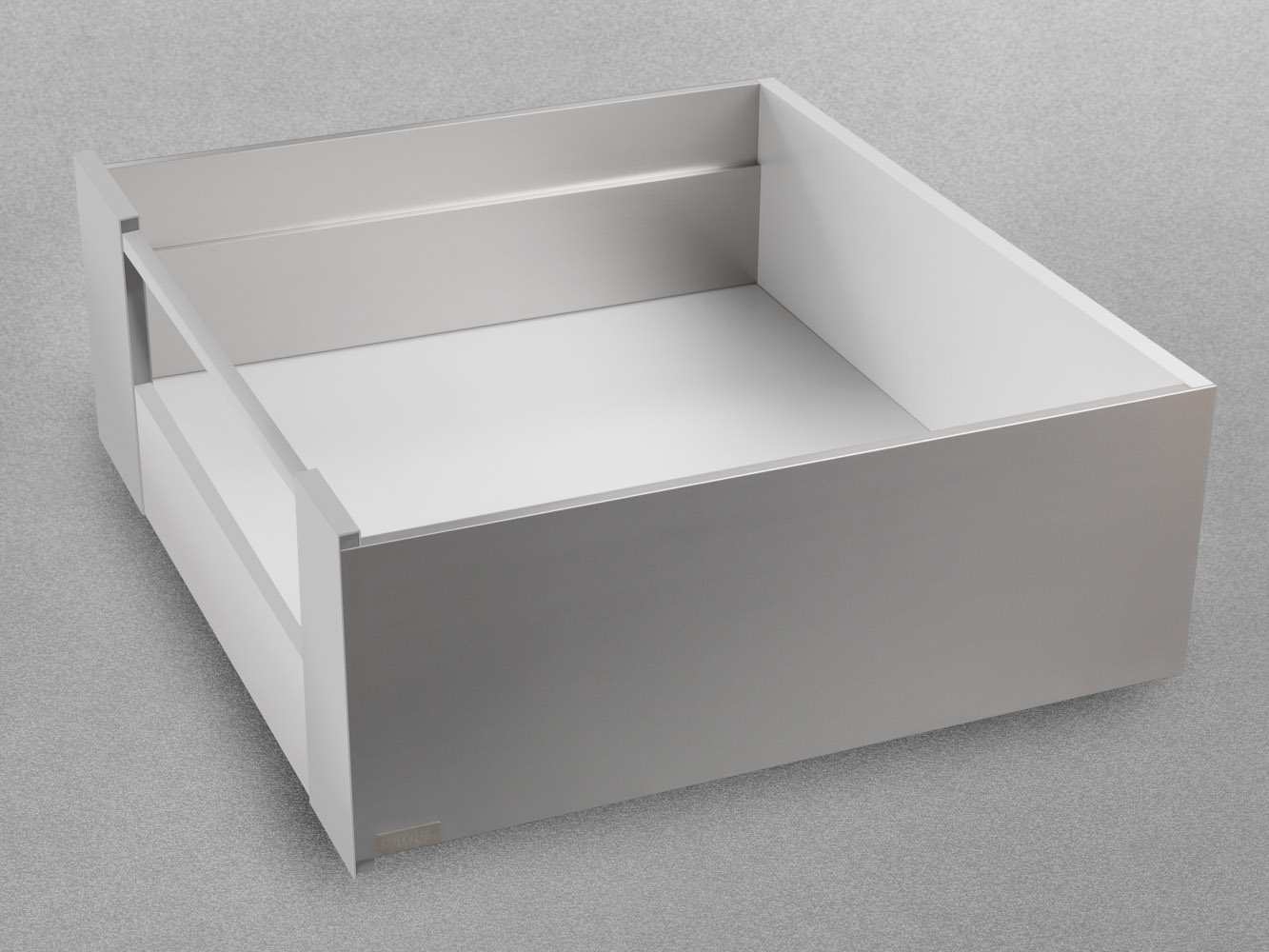

Front panel for internal drawer - H 178 mm
Height of Lineabox Easy side 178 mm
Max. height of front panel 203 mm

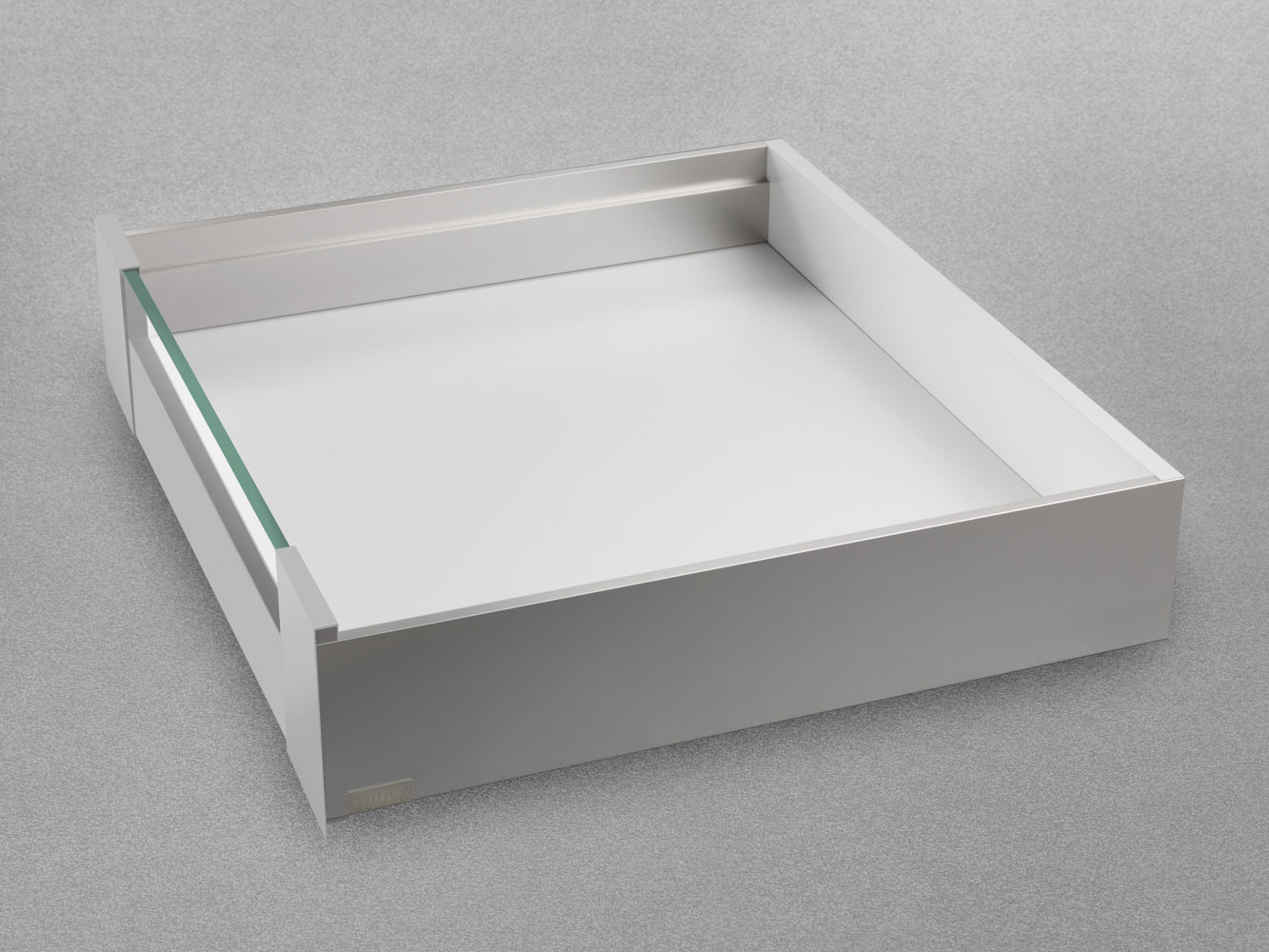

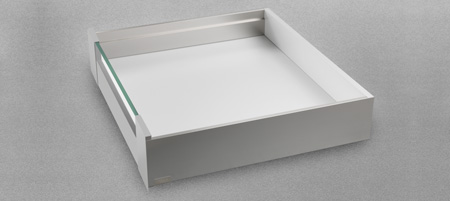

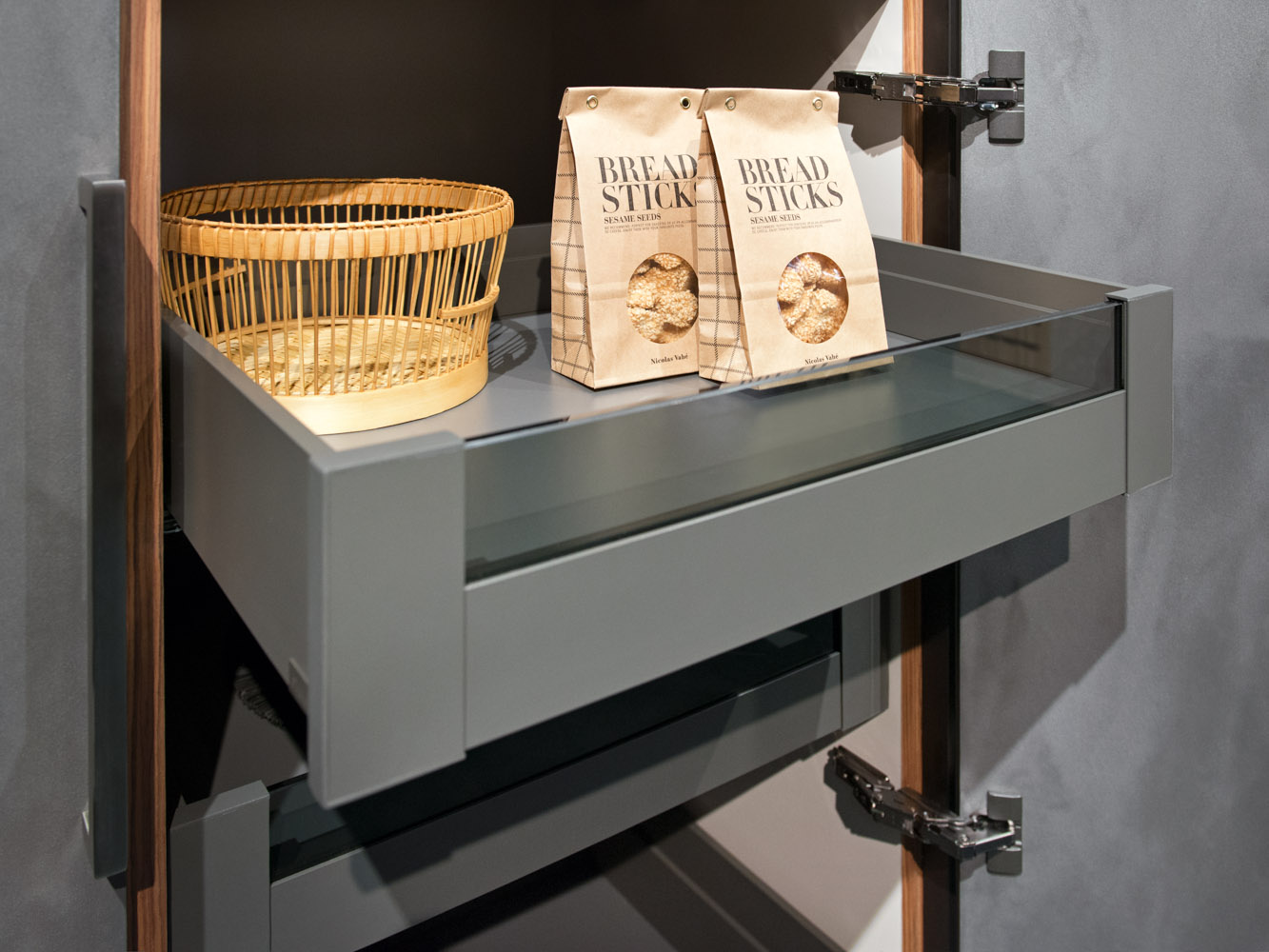

Front panel for internal drawer with insert - H 101 mm
Height of Lineabox Easy side 101 mm
Max. height of front panel 126 mm

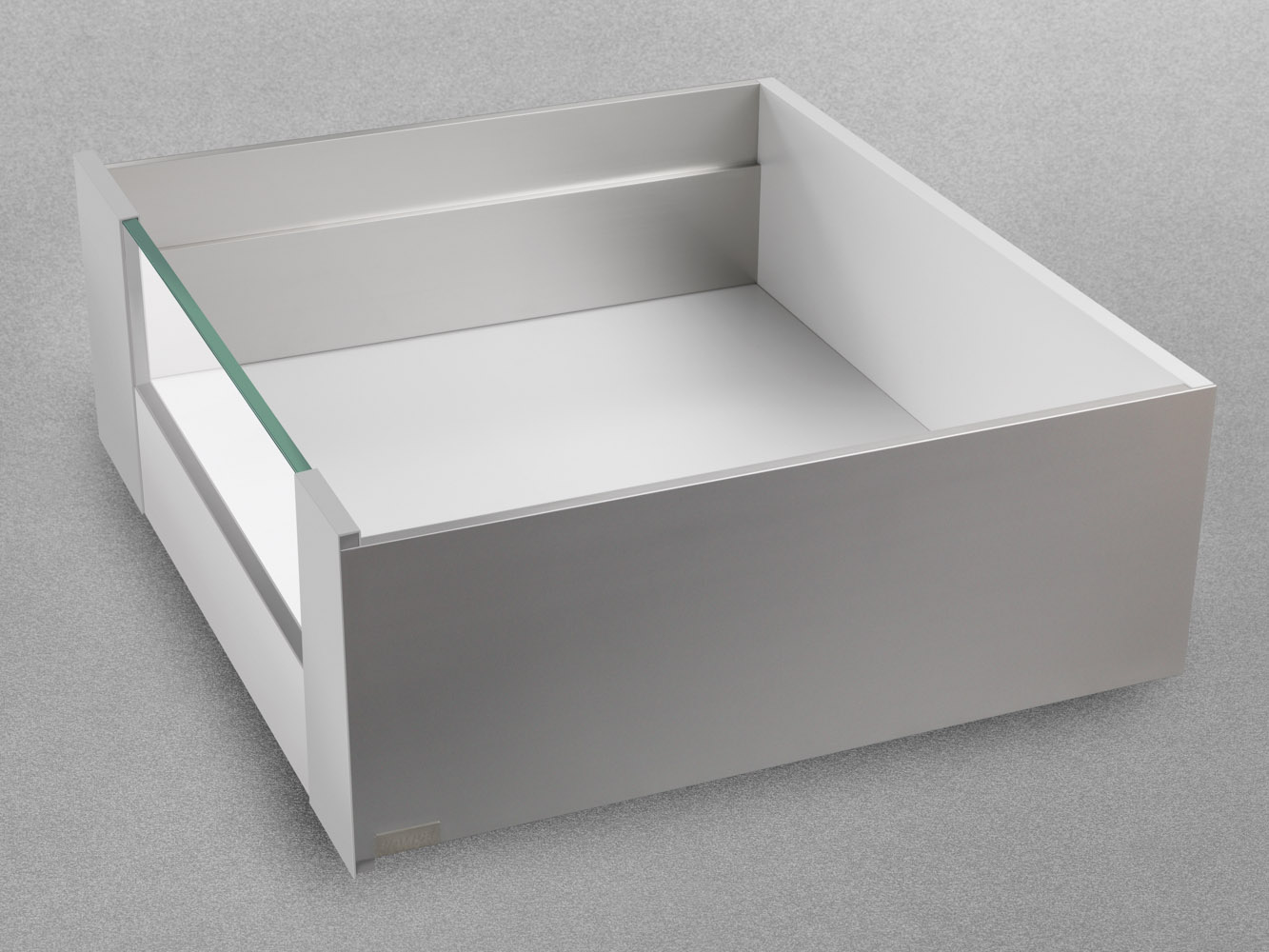

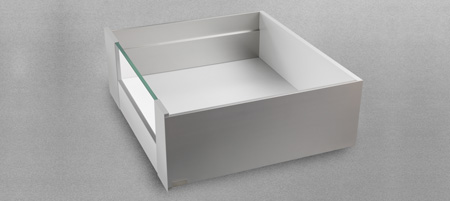

Front panel for internal drawer with insert - H 178 mm
Height of Lineabox Easy side 178 mm
Max. height of front panel 203 mm

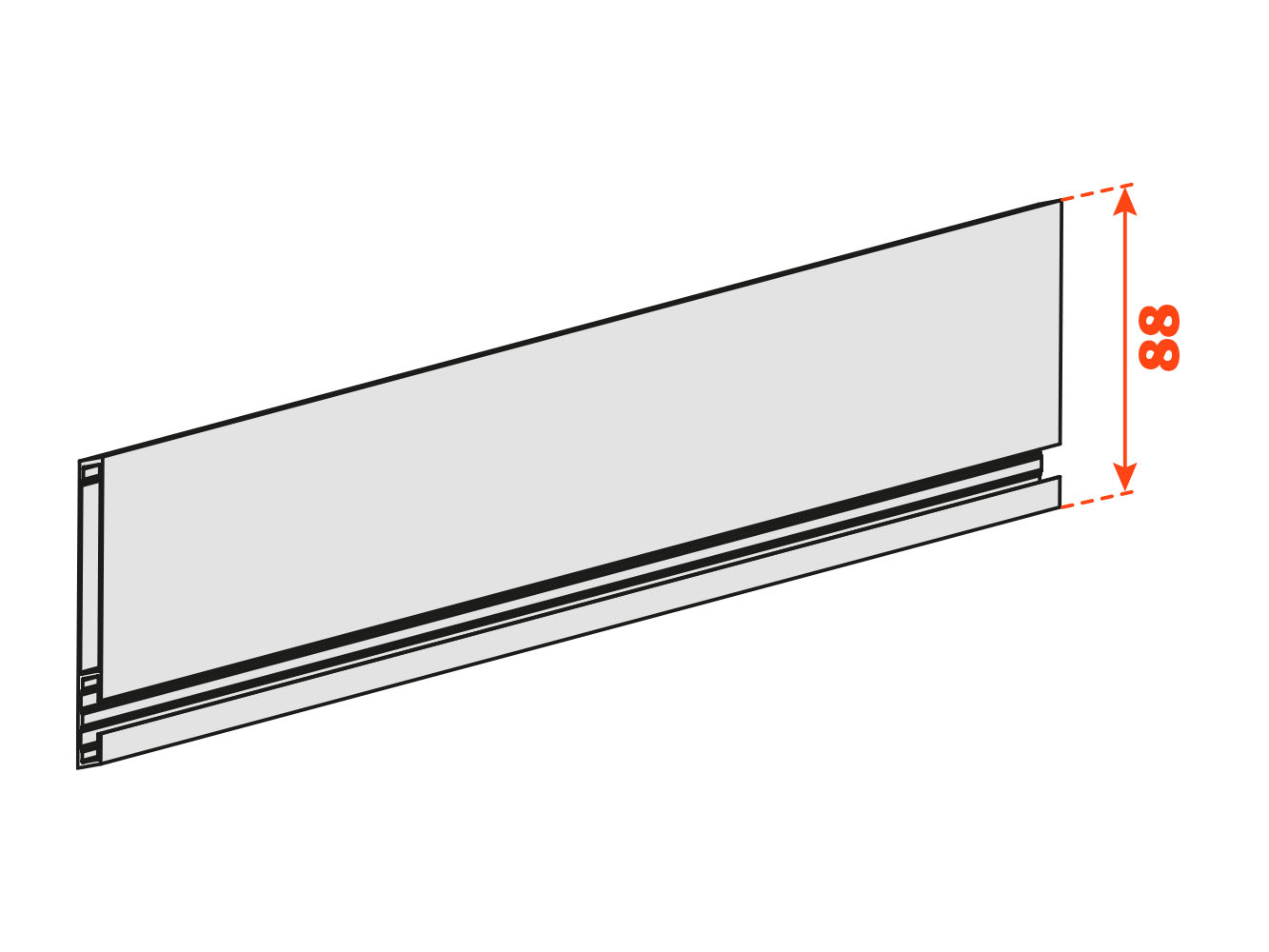

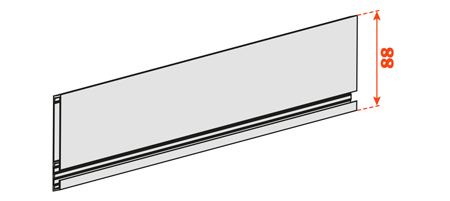

Front panel H 88 mm
Aluminium front panel for internal drawer (H 75, H 101, H 178).
Standard length = 1062 mm.
AMFLP411062F = White
AMFLP4G1062F = Slate grey
AMFLP4C1062F = Champagne
AMFLP4S1062F = Stainless steel

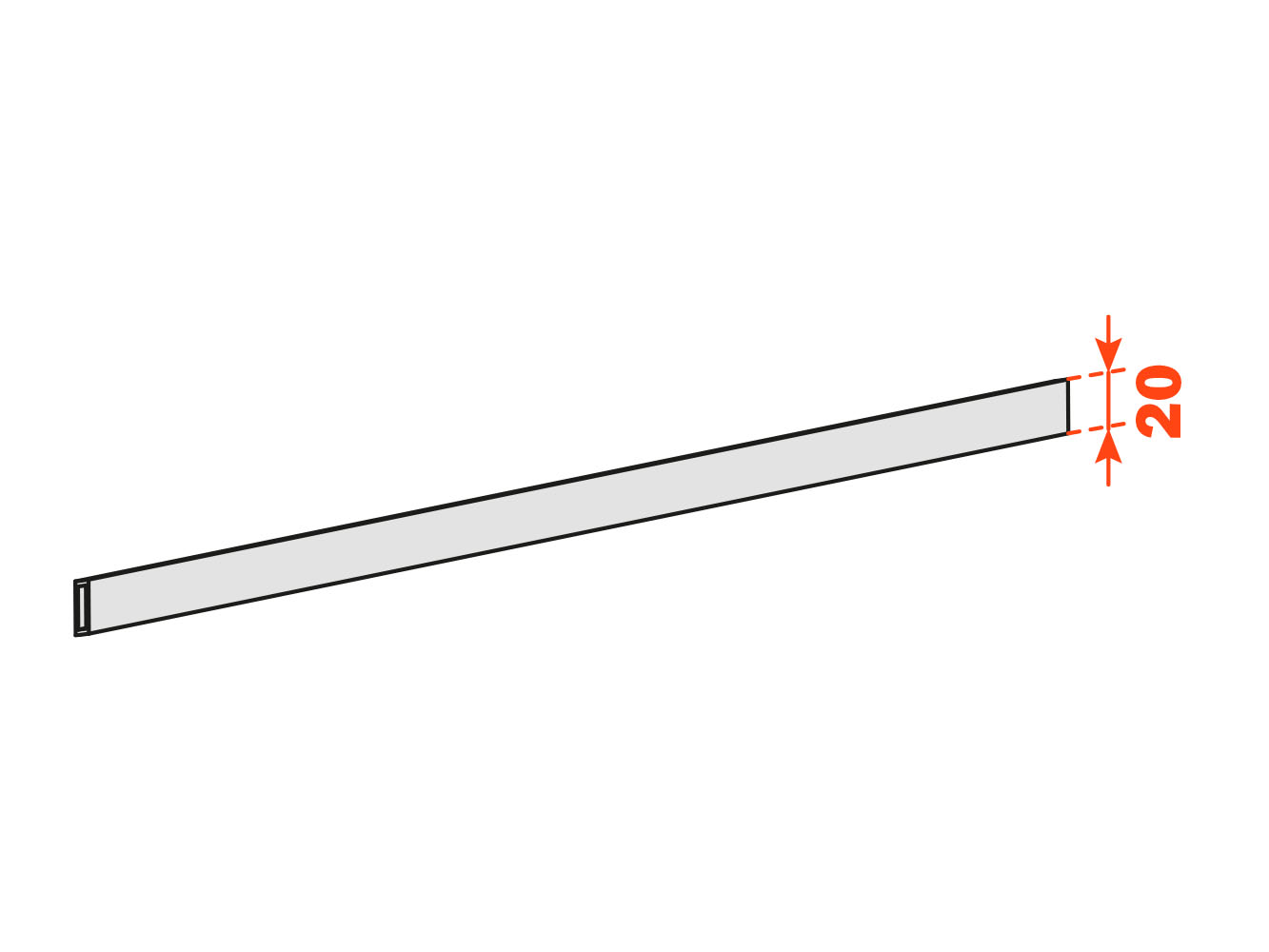

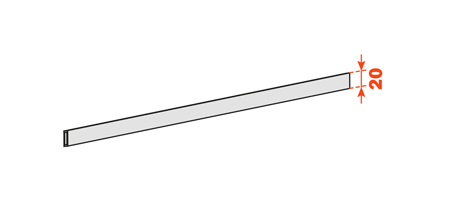

Aluminium railing H 20 mm
Aluminium railing for front panel for internal drawer (H 178).
Standard length = 1062 mm.
AMBFP411062F = White
AMBFP4G1062F = Slate grey
AMBFP4C1062F = Champagne
AMBFP4S1062F = Stainless steel

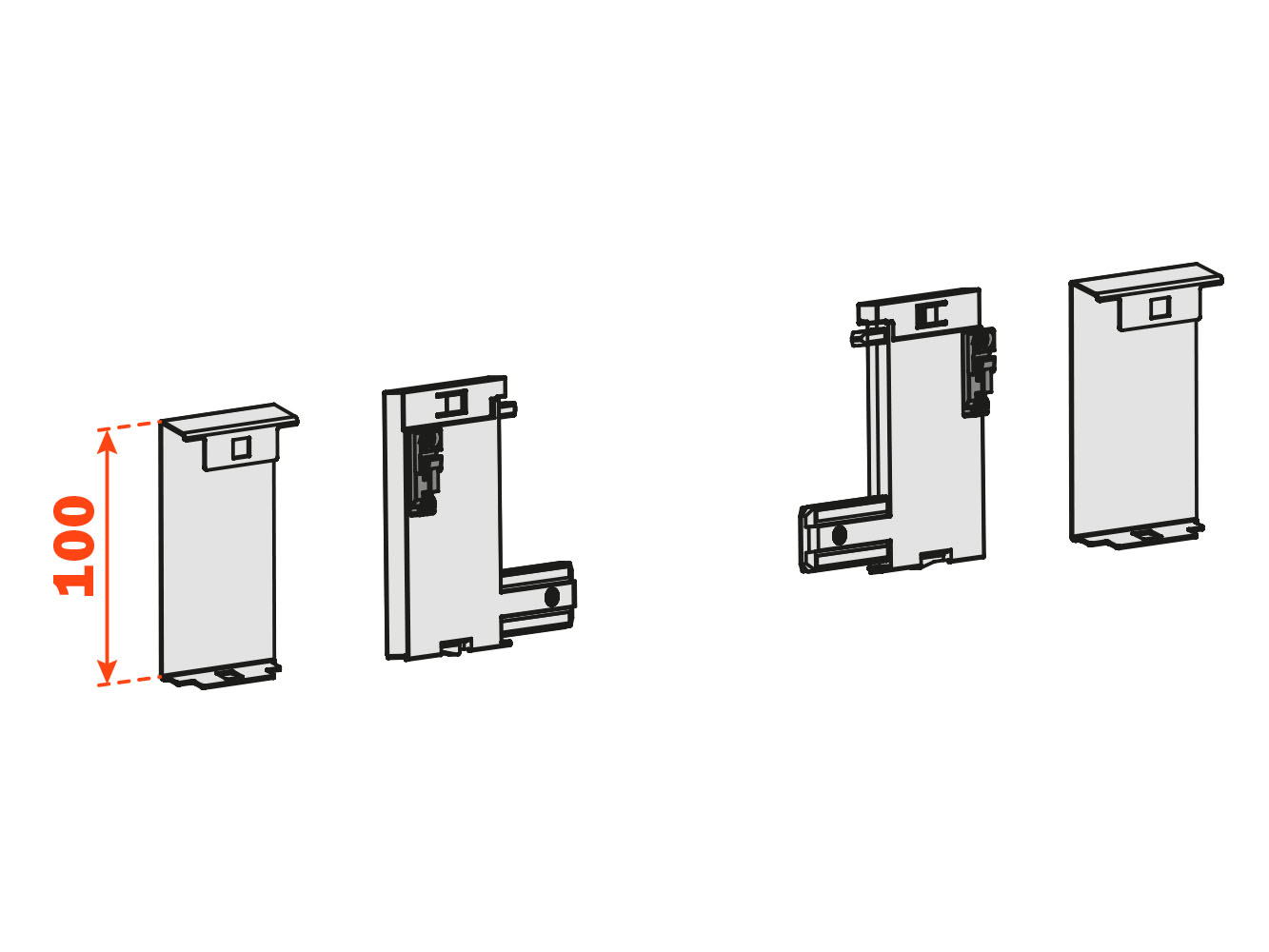

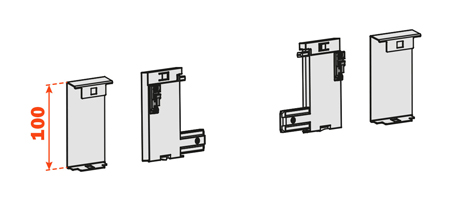

Front panel adapters and covers H 100 mm
Front panel adapters and covers right/left for front panel for internal drawer (H 75).
AMABPE1F = White
AMABPEGF = Slate grey
AMABPECF = Champagne
AMABPESF = Stainless steel

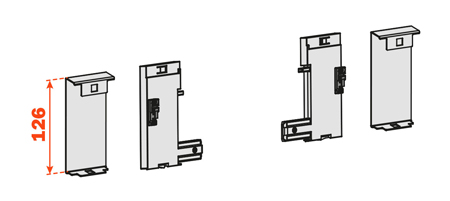

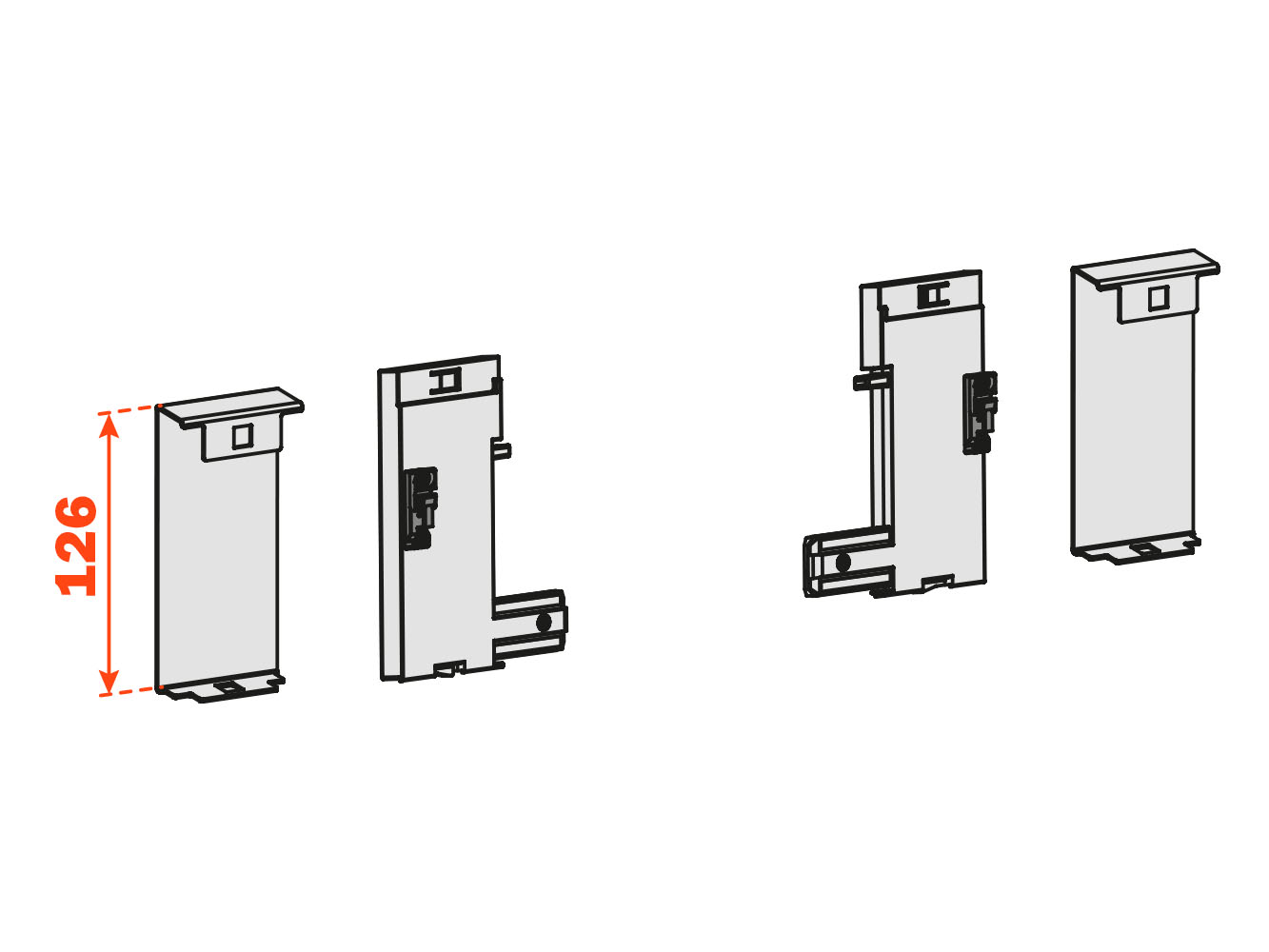

Front panel adapters and covers H 126 mm
Front panel adapters and covers right/left for front panel for internal drawer (H 101).
AMAMPE1F = White
AMAMPEGF = Slate grey
AMAMPECF = Champagne
AMAMPESF = Stainless steel

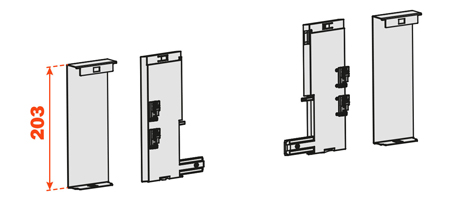

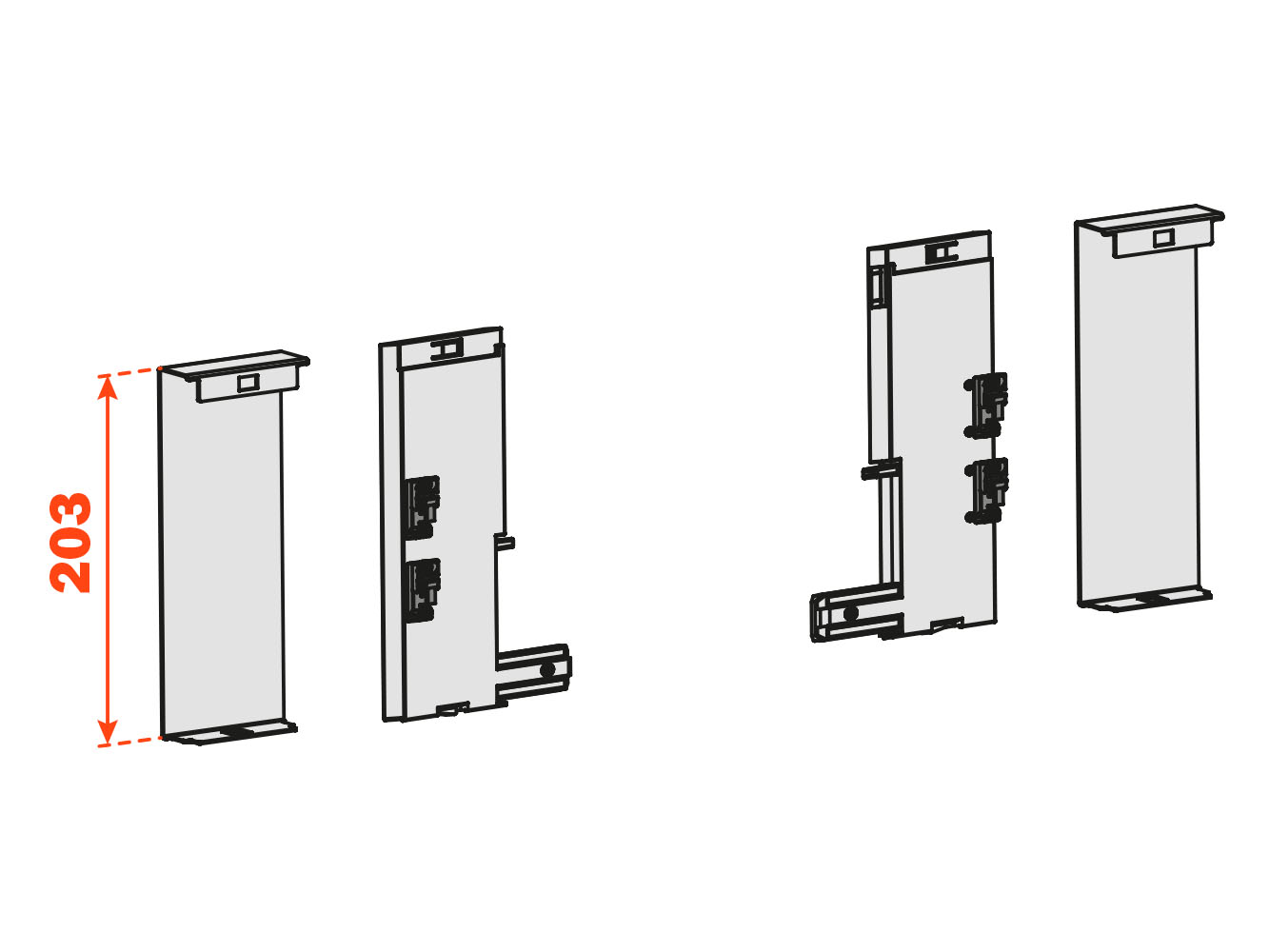

Front panel adapters and covers H 203 mm
Front panel adapters and covers right/left for front panel for internal drawer (H 178).
AMAAPE1F = White
AMAAPEGF = Slate grey
AMAAPECF = Champagne
AMAAPESF = Stainless steel

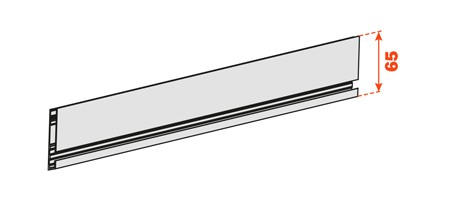

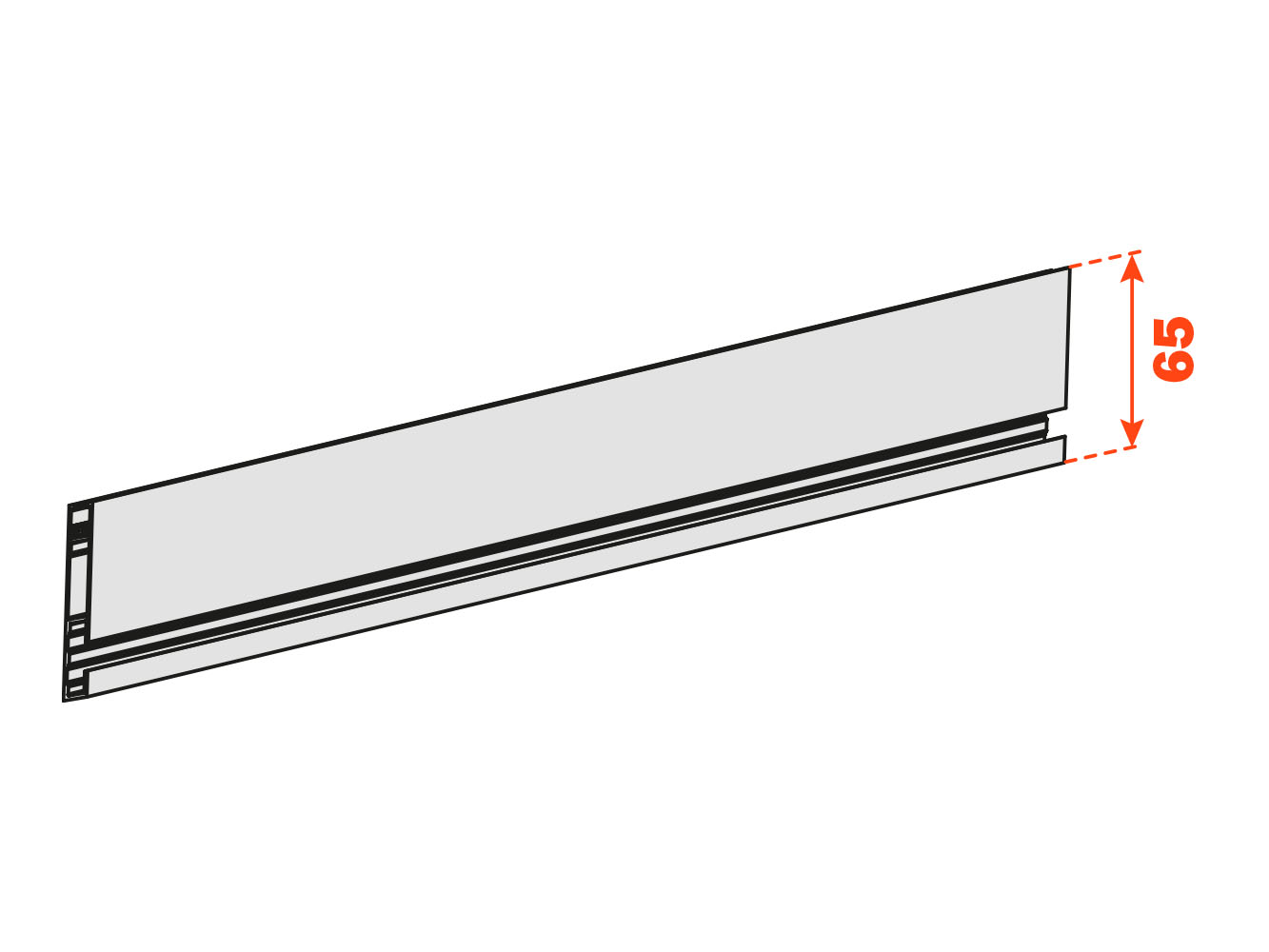

Front panel H 65 mm
Aluminium front panel for internal drawer with 8 mm thick insert (H 101, H 178).
Standard length = 1062 mm.
Gasket included.
Inserts not included.
AMFLV411062F = White
AMFLV4G1062F = Slate grey
AMFLV4C1062F = Champagne
AMFLV4S1062F = Stainless steel

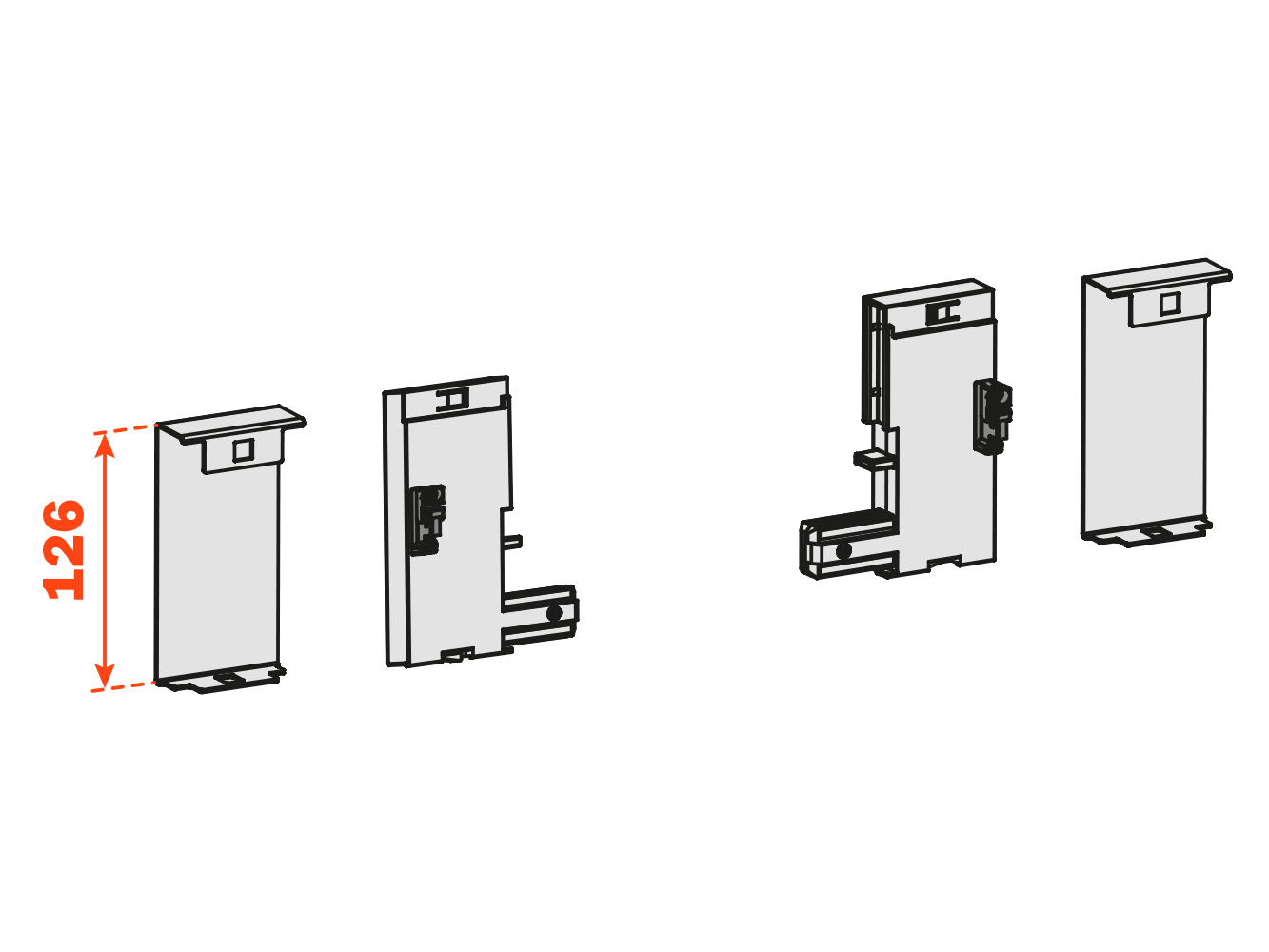

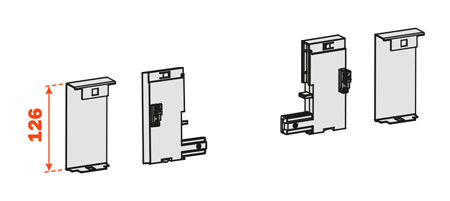

Front panel adapters and covers H 126 mm
Front panel adapters and covers right/left for front panel for internal drawer (H 101) with 8 mm thick insert
AMAMVE1F = White
AMAMVEGF = Slate grey
AMAMVECF = Champagne
AMAMVESF = Stainless steel

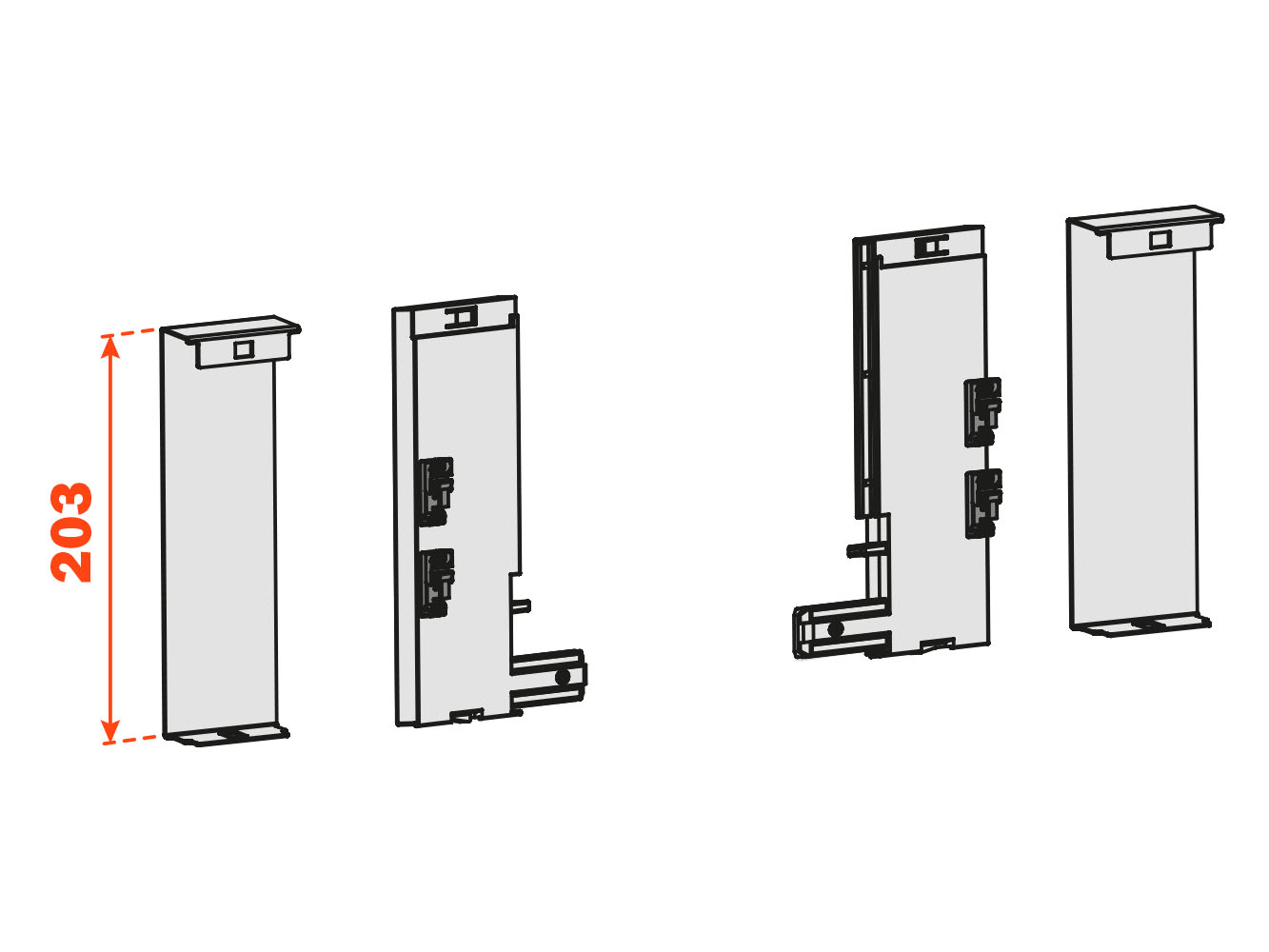

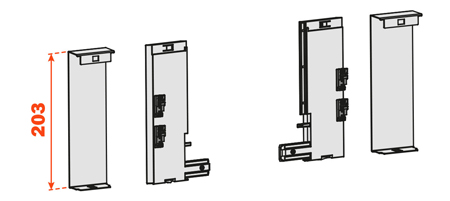

Front panel adapters and covers H 203 mm
Front panel adapters and covers right/left for front panel for internal drawer (H 178) with 8 mm thick insert
AMAAVE1F = White
AMAAVEGF = Slate grey
AMAAVECF = Champagne
AMAAVESF = Stainless steel
Acabamentos
-
Metal WHITE -
Metal SLATE GREY -
Metal CHAMPAGNE -
Metal STAINLESS STEEL
Informações técnicas
Documentação
Video
Prospecto técnico
