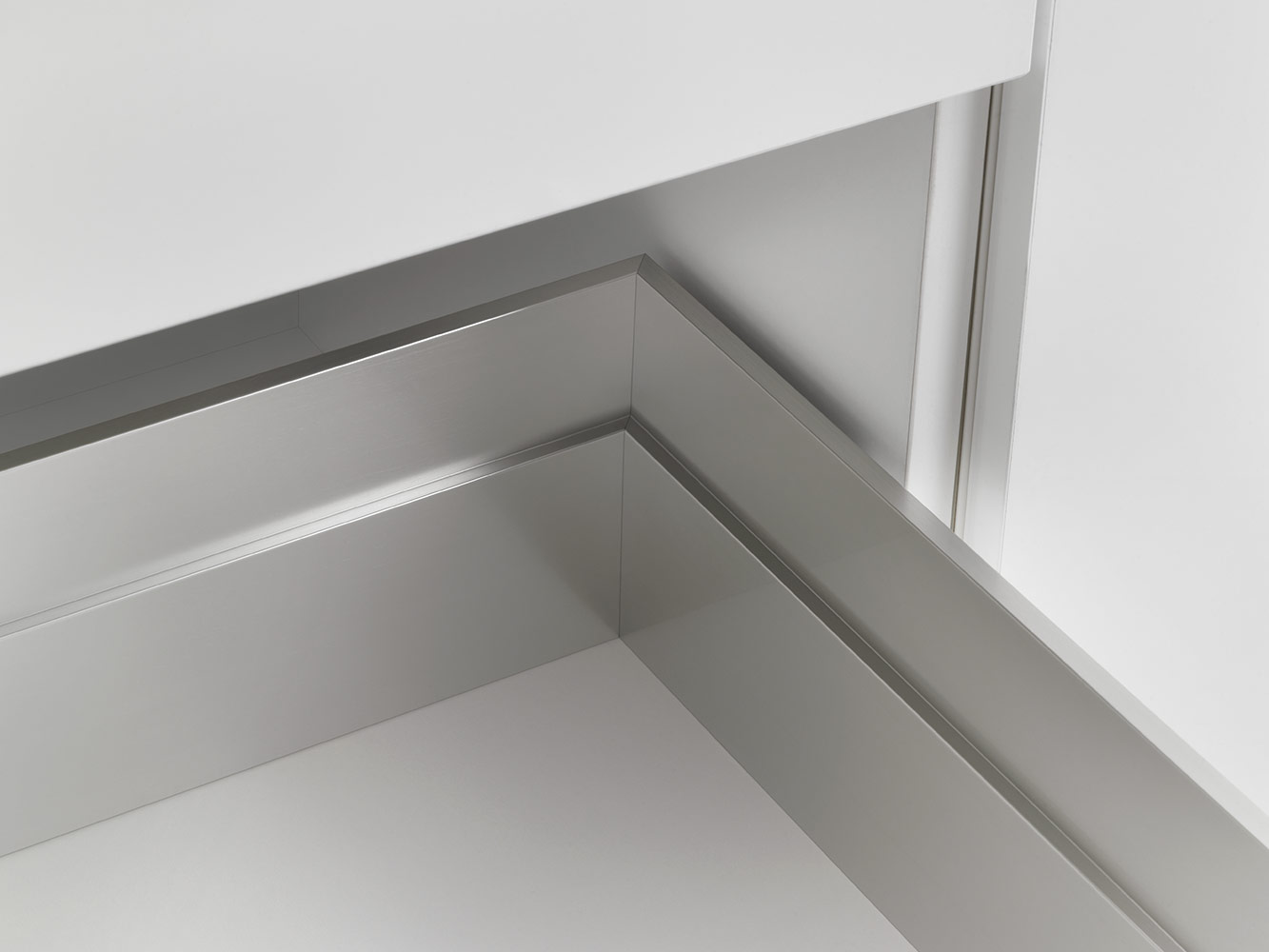

Simple clean lines with a minimal wall thickness
Clean and streamlined aestetics uncluttered with holes or assembly components, Lineabox is very versatile and highly customizable. Assembly is rapid without the need for machinery.
Versions:
• Drawer
• Under-sink drawer
Available heights:
• Height of the side 101 mm - Internal height 72 mm
• Height of the side 178 mm - Internal height 149 mm
• Height of the side 75 mm - Internal height 46 mm

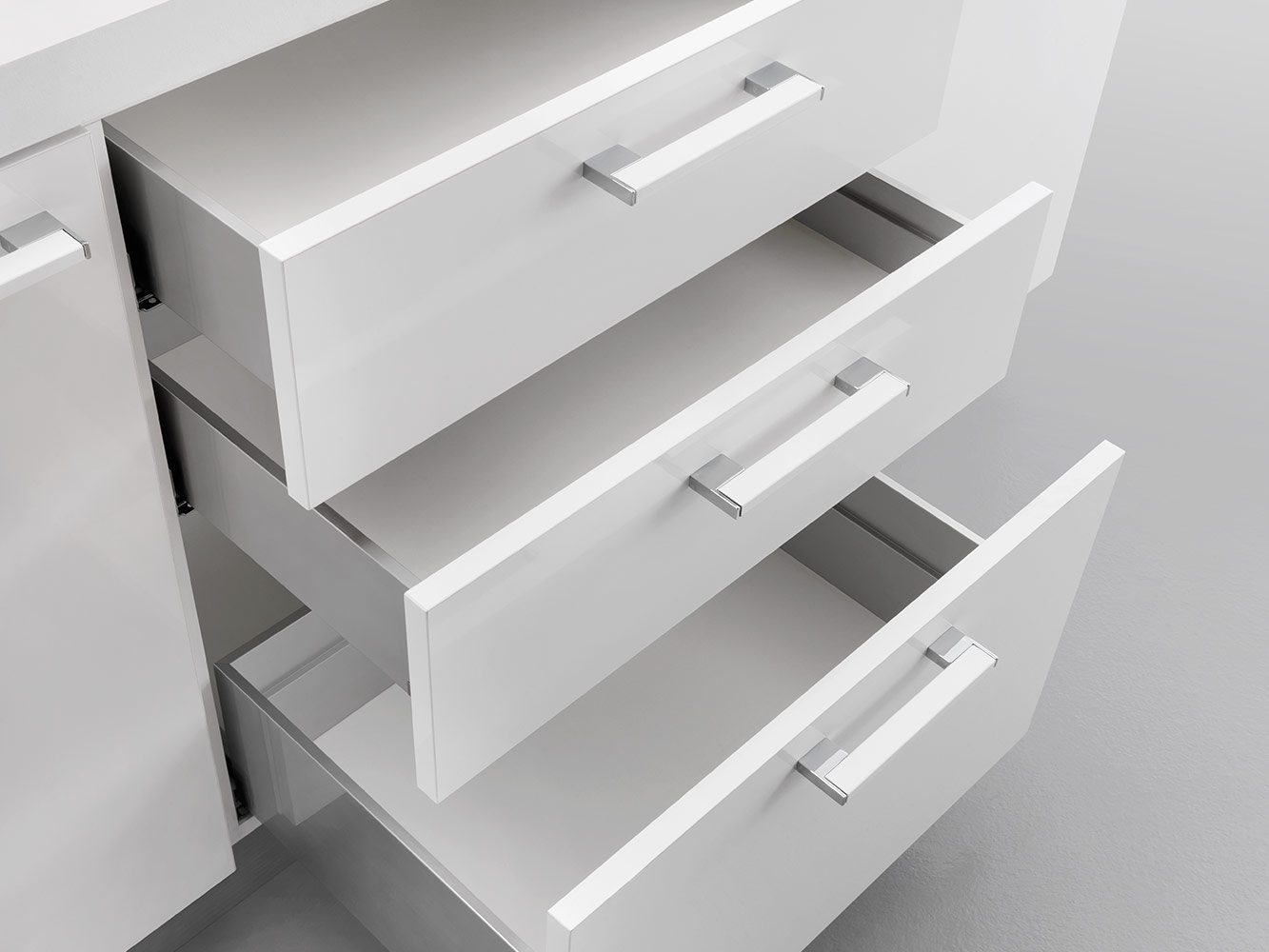

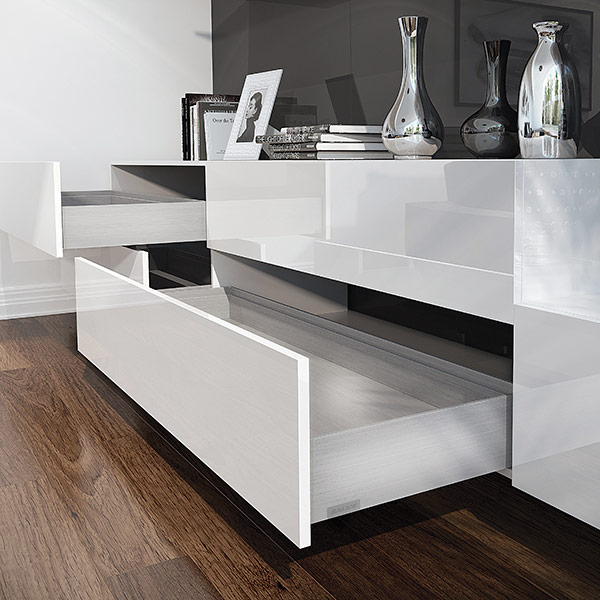

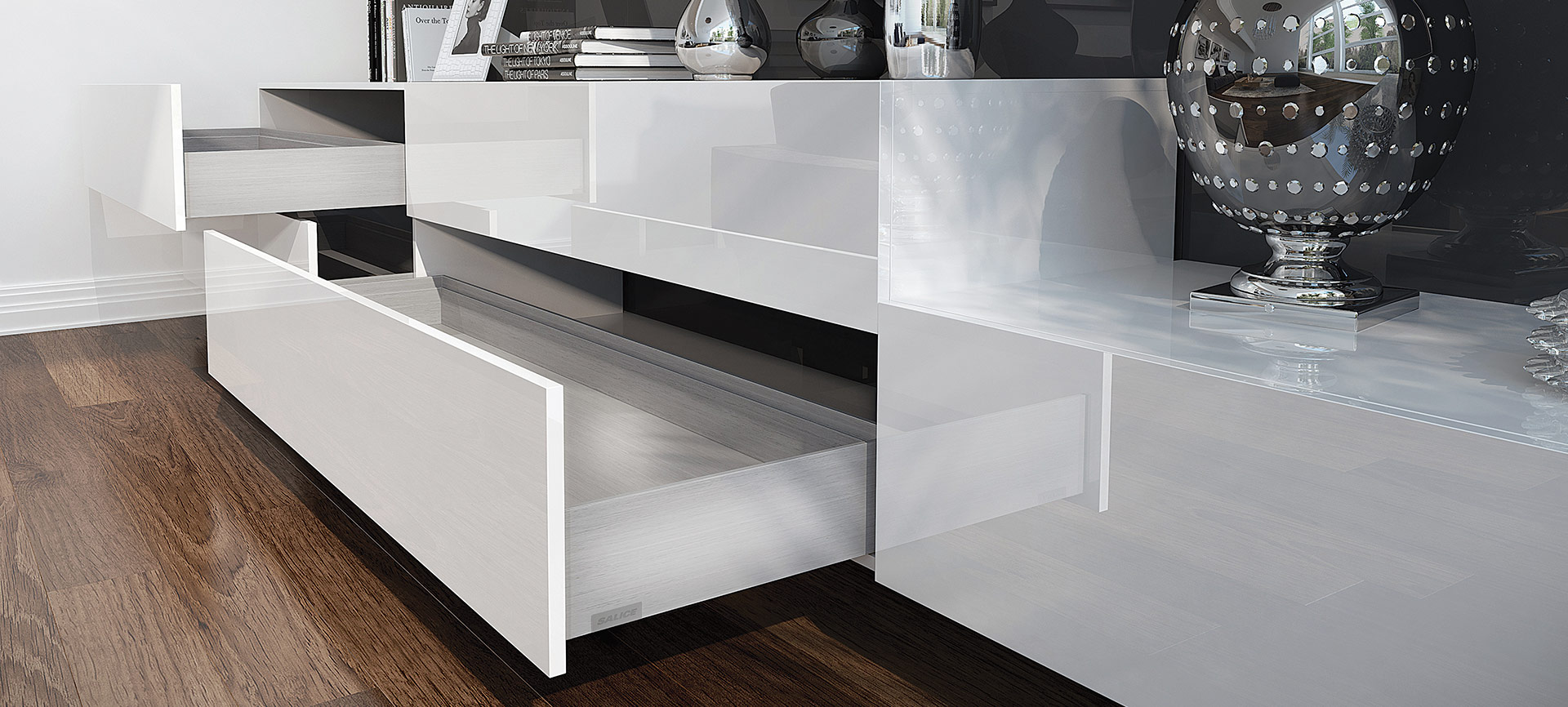

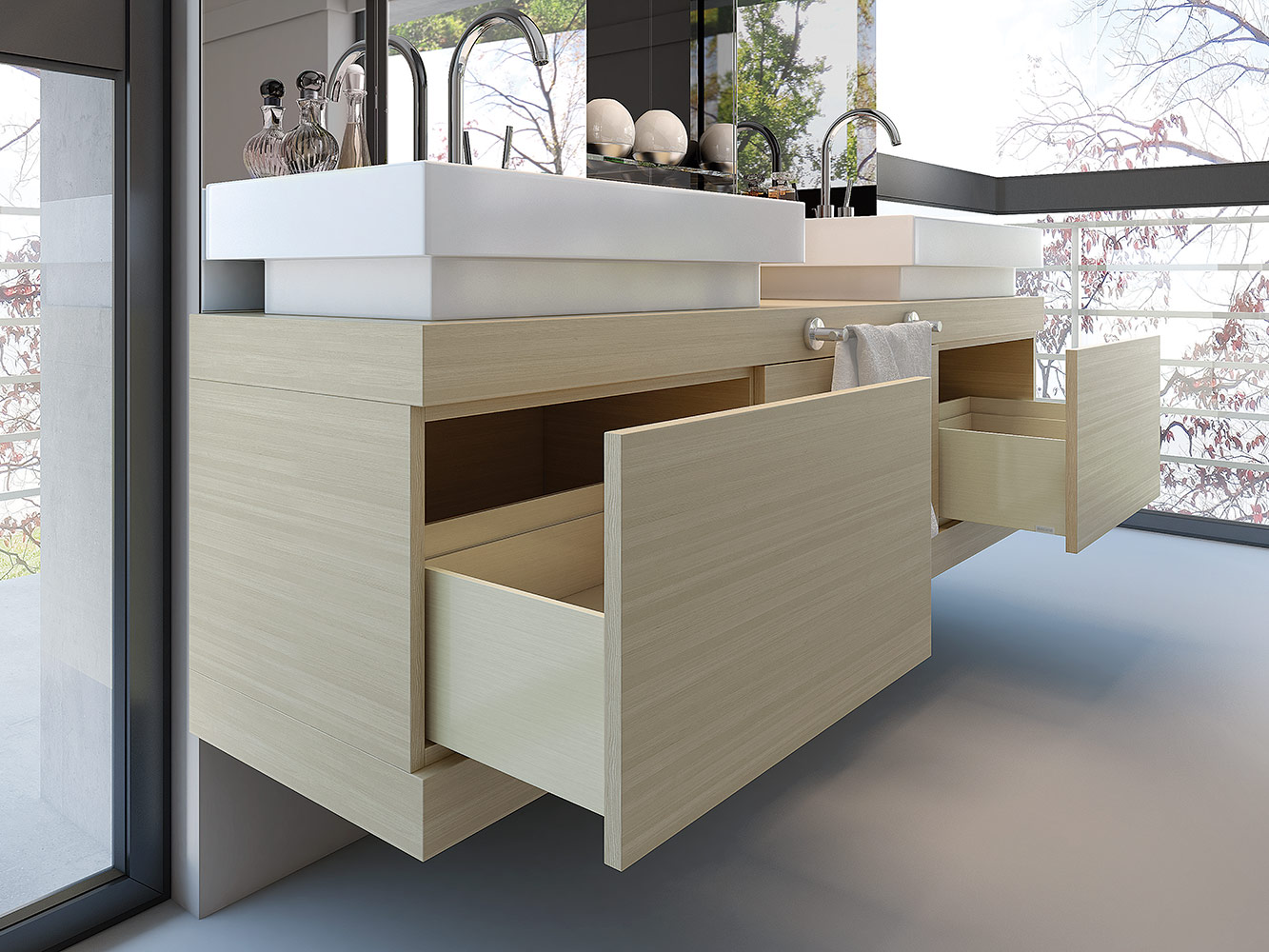

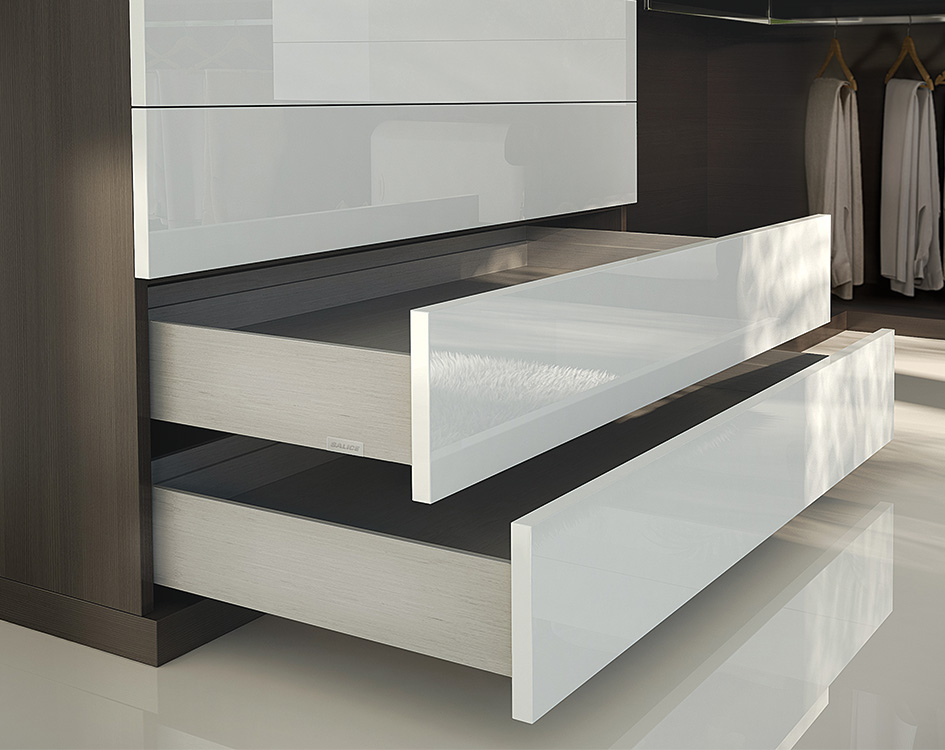

A light and thin drawer, suitable for applications including kitchens, living rooms and office furniture.
Full extension runners enable a fluid and sliding movement.
- Lineabox Easy metal sides, wooden bottom
- For use with Progressa and Futura full-extension runners
- Supplied in 3 metre length side and back profiles or cut to length
- The back can be modified according to the width of the cabinet
- Rapid assembly system, with no machinery needed
- Available template for the drilling of the drawer frontal (optional)
- Rapid mounting and removal of drawer frontal
- Height, sideways and depth adjustment of the drawer incorporated in the runner fixing clips
- Bottom thickness: 16 mm
- Material: aluminium
- Sides and back: 45° mitre cut end
- Finishes: White - Slate grey - Champagne - Stainless steel

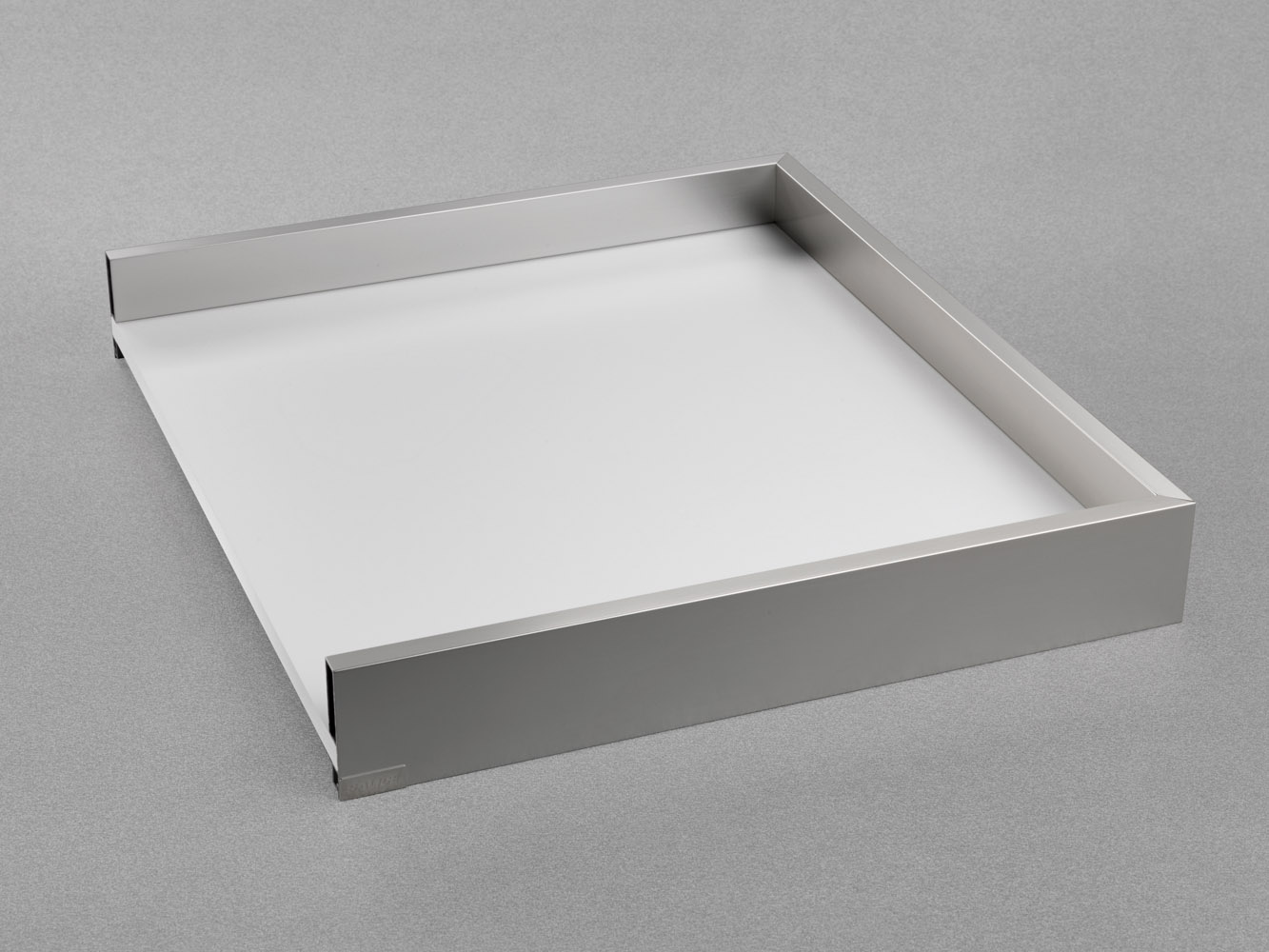

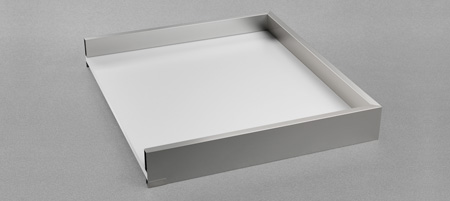

3-Sided - H 75 mm
Height of the side 75 mm
Internal height 46 mm

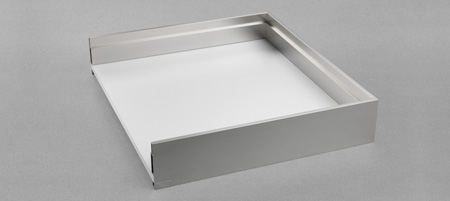

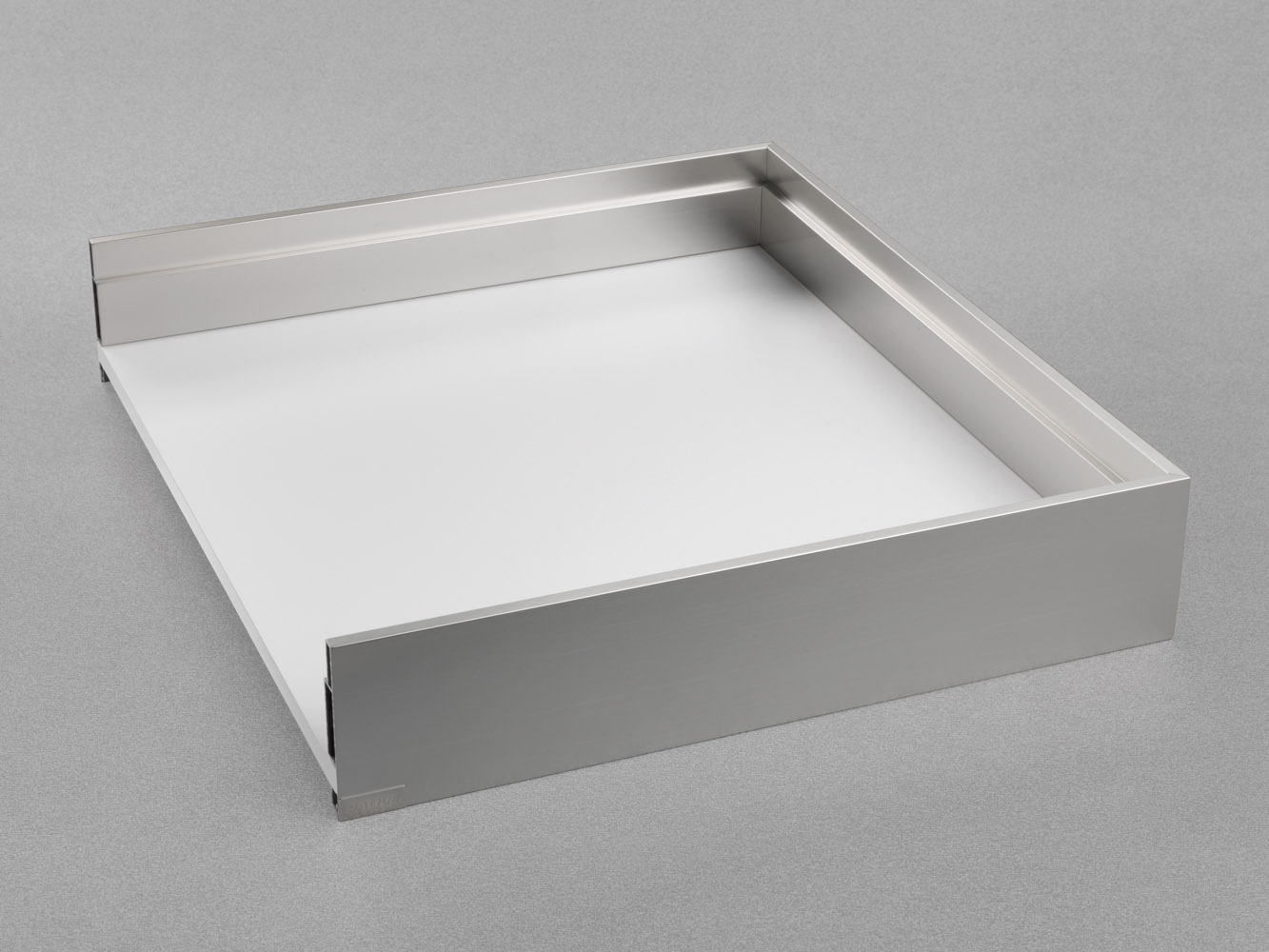

3-Sided - H 101 mm
Height of the side 101 mm – Internal height 72 mm

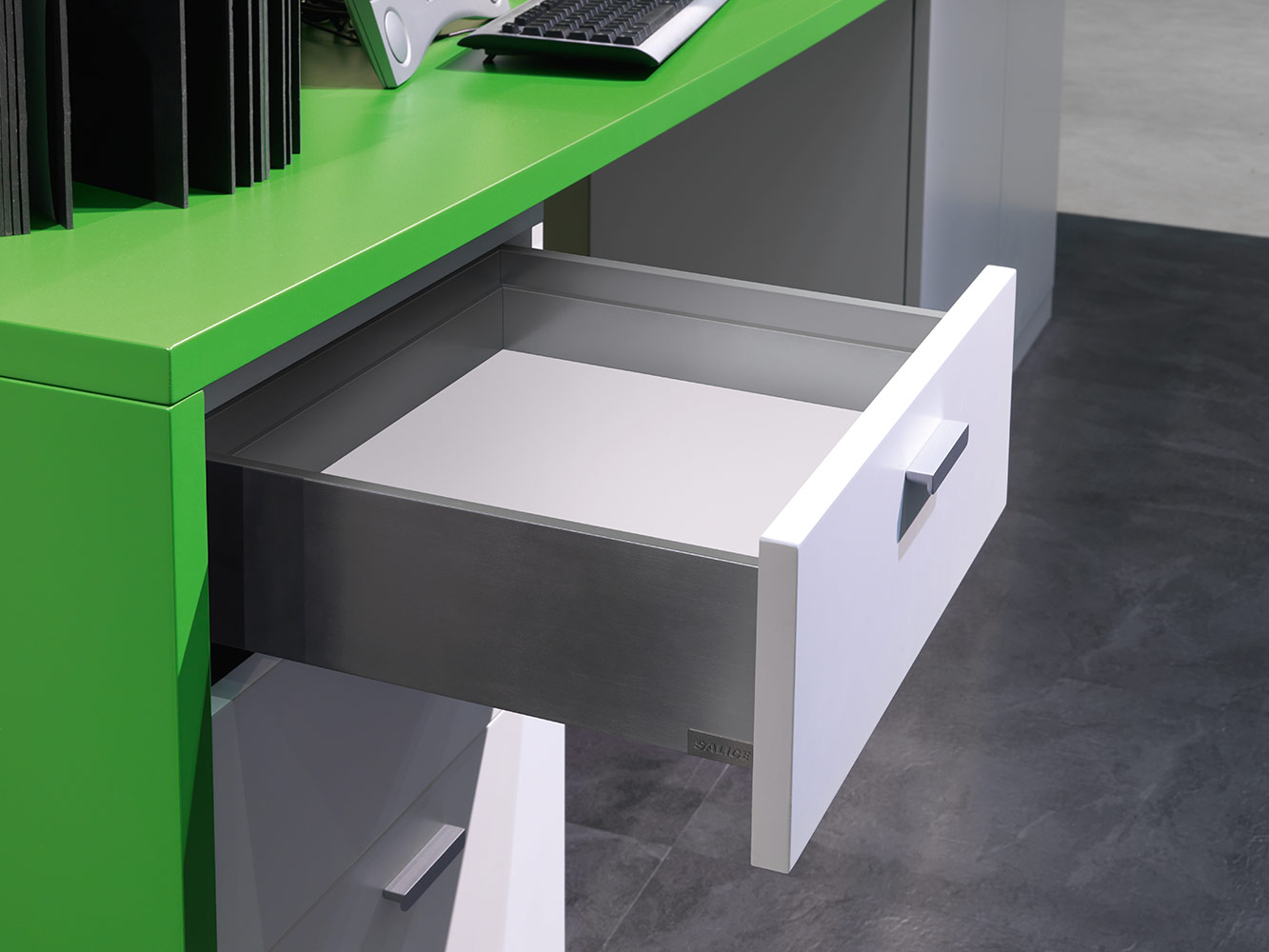

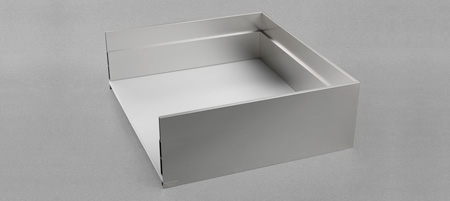

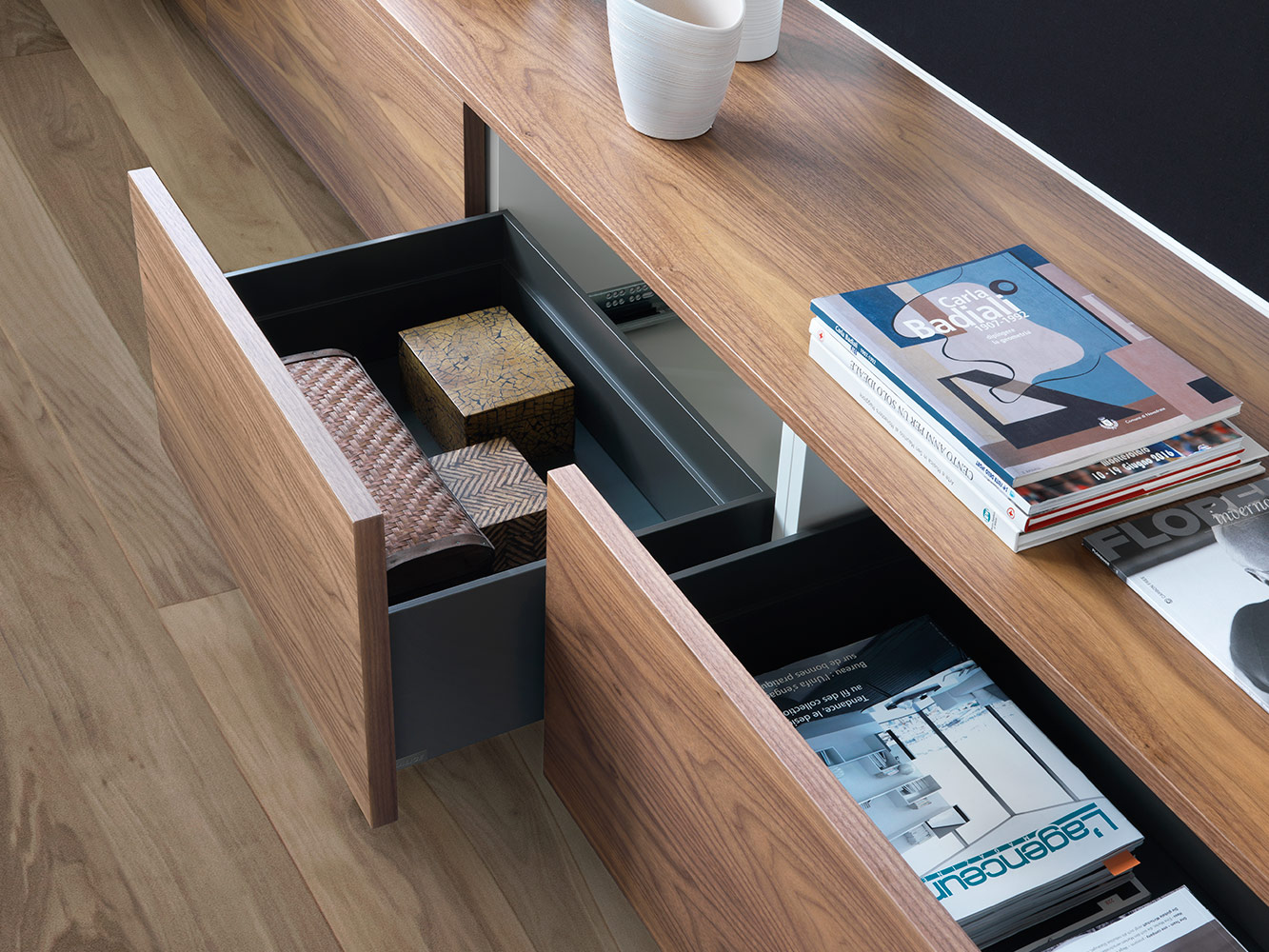

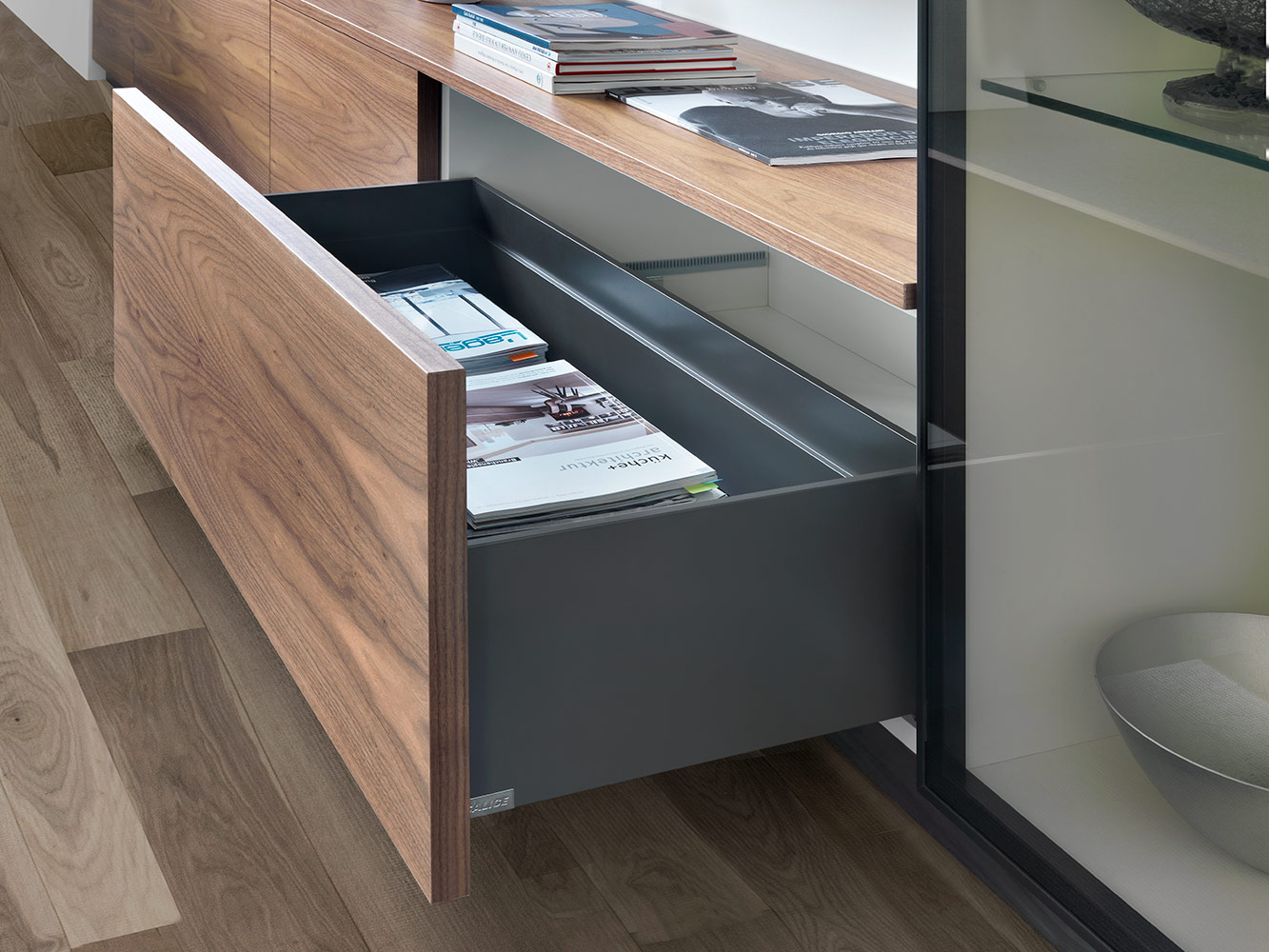

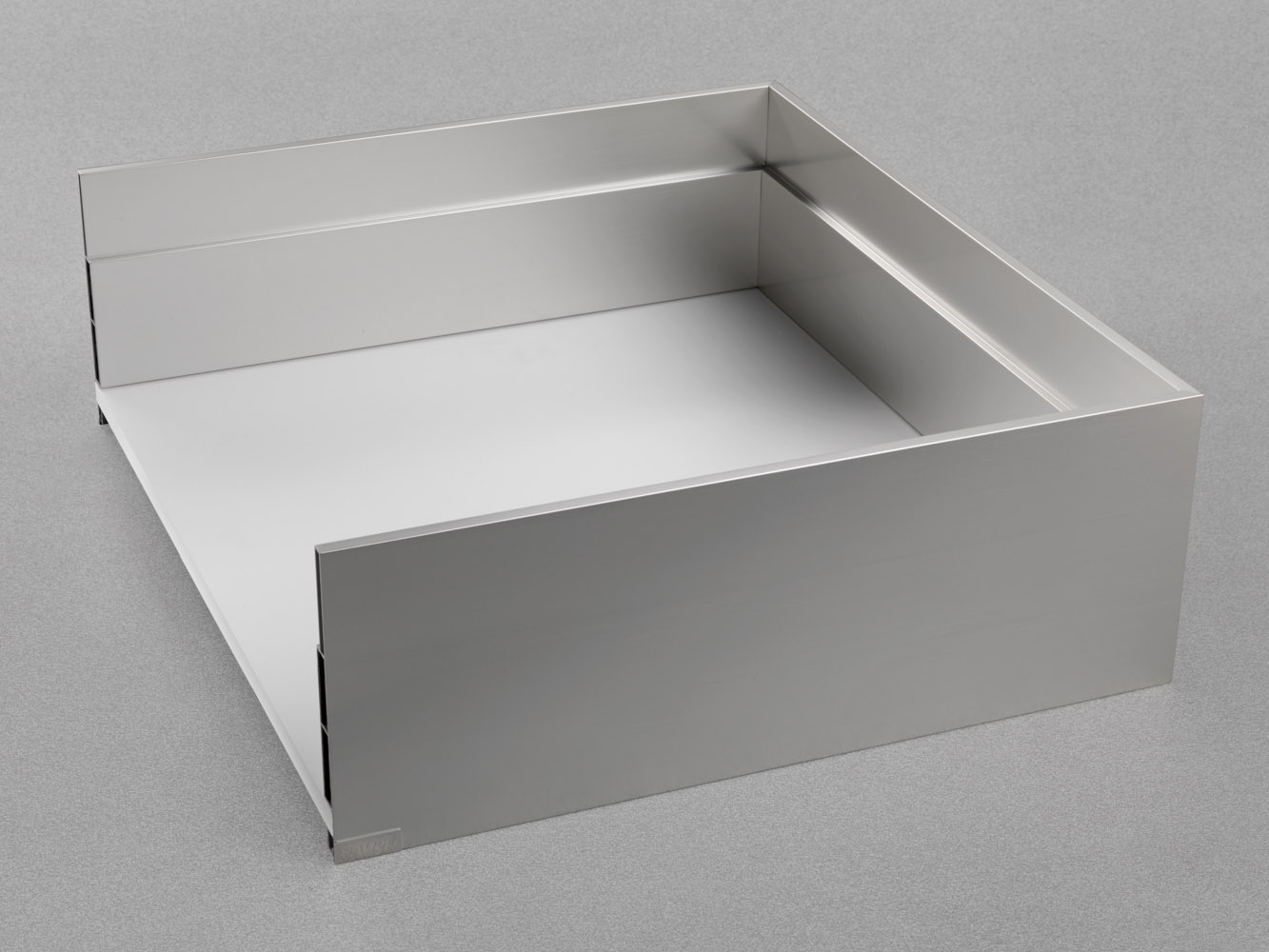

3-Sided - H 178 mm
Height of the side 178 mm
Internal height 149 mm

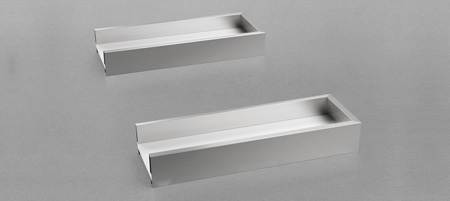

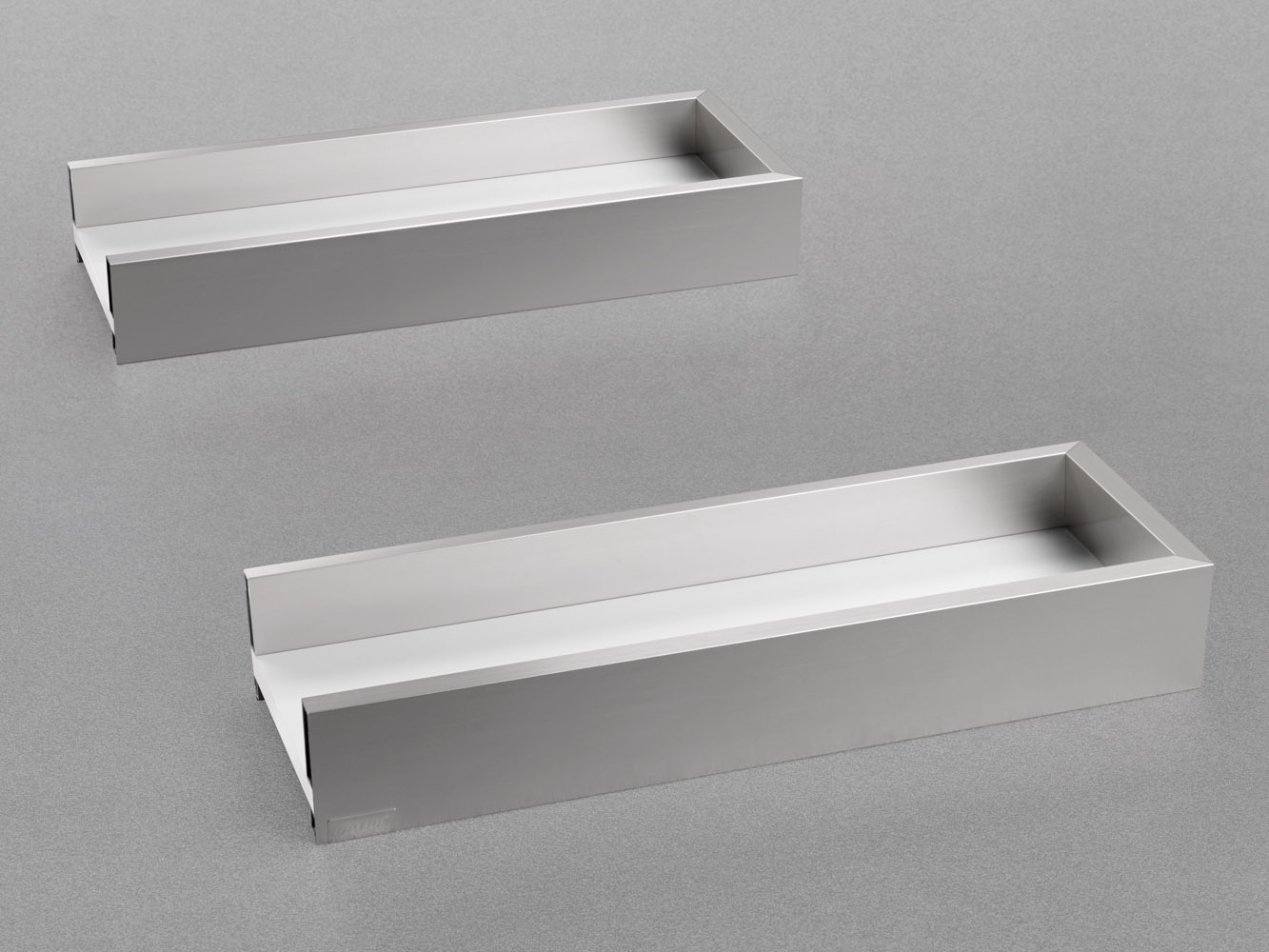

3-Sided - Under-sink drawer - H 75 mm
Height of the side 75 mm
Internal height 46 mm

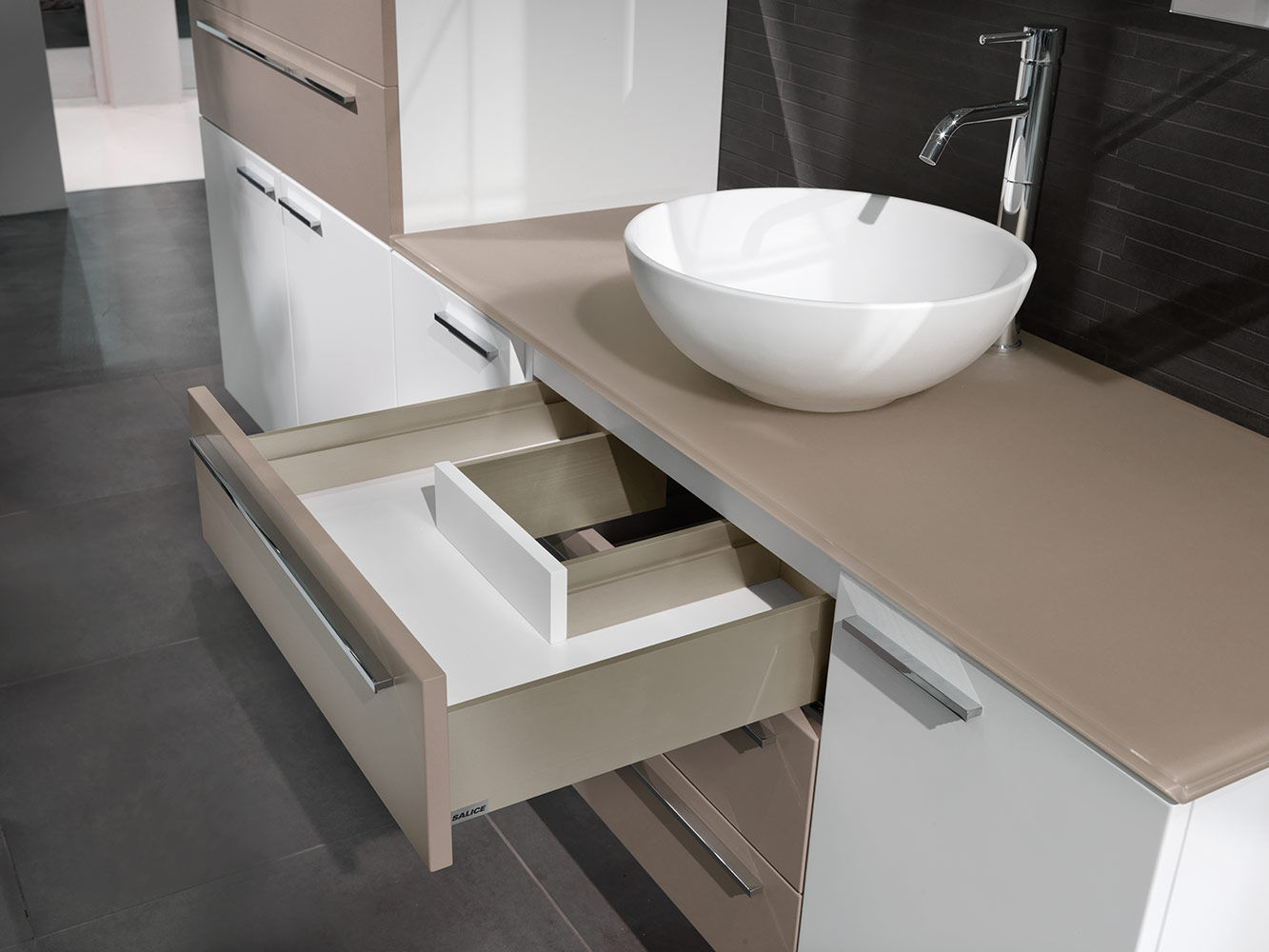

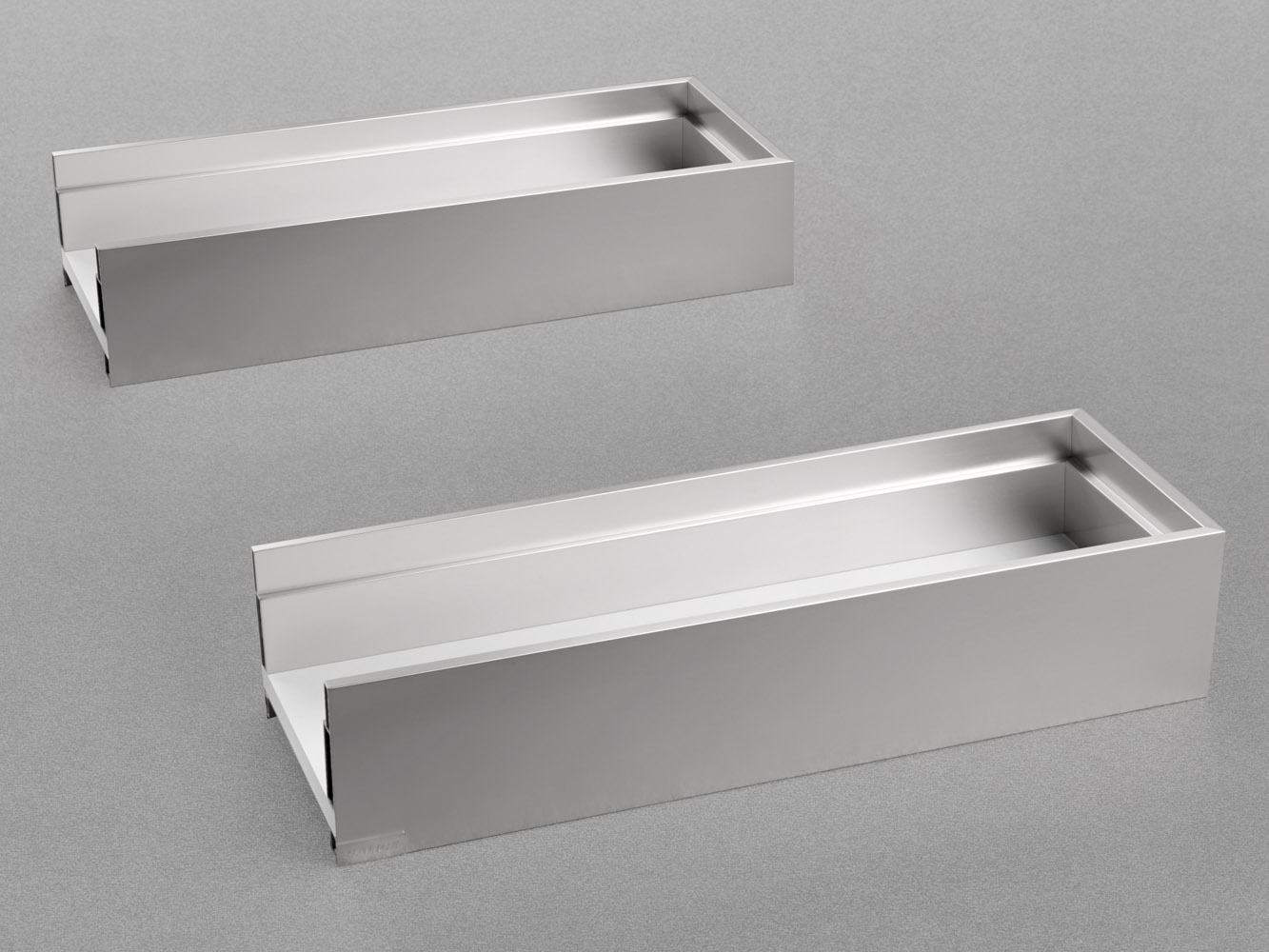

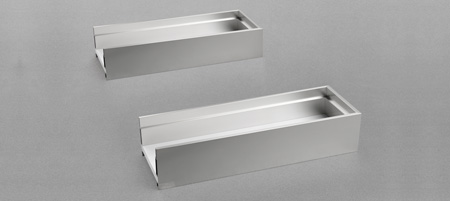

3-Sided - Under-sink drawer - H 101 mm
Height of the side 101 mm
Internal height 72 mm

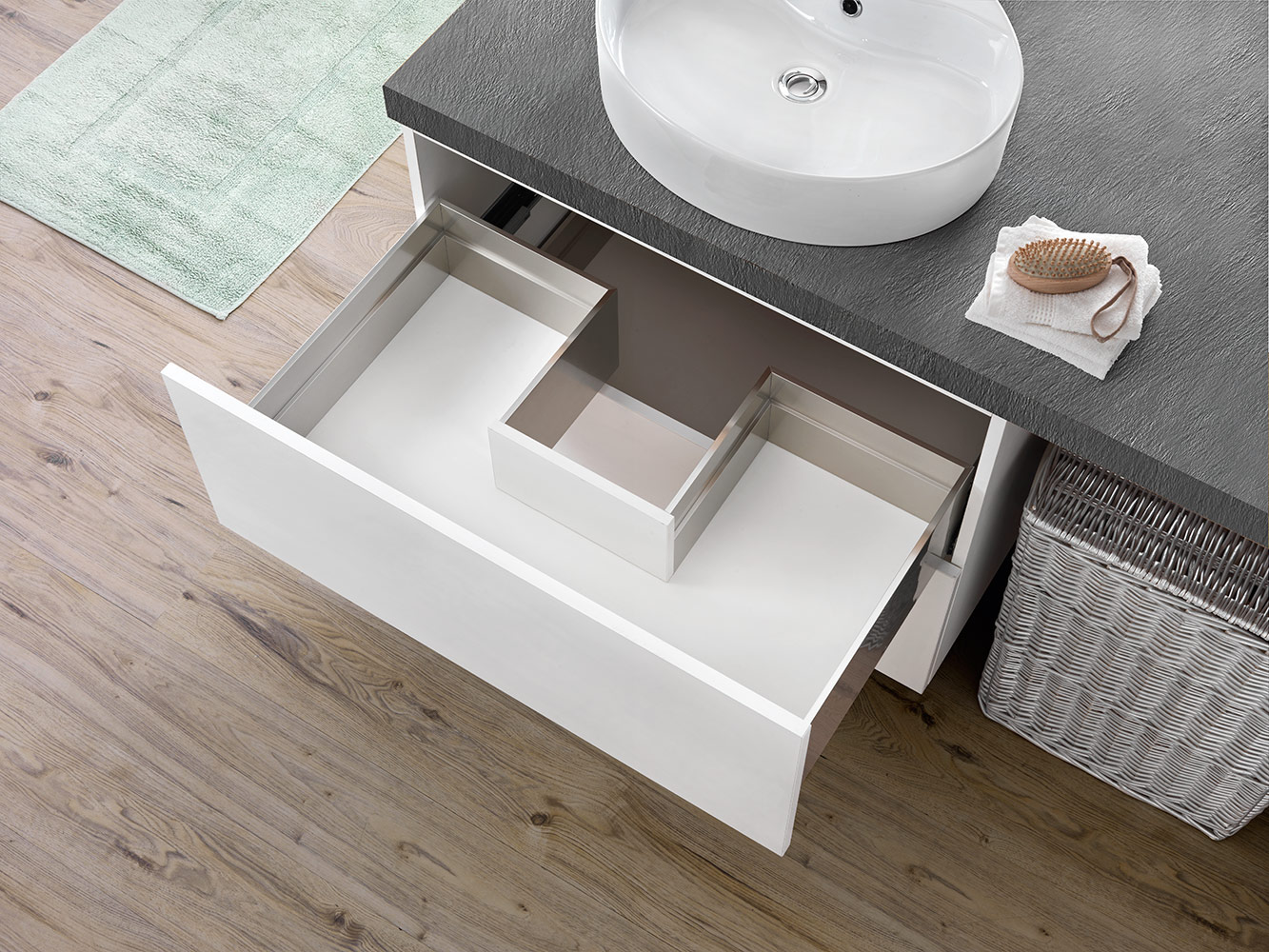

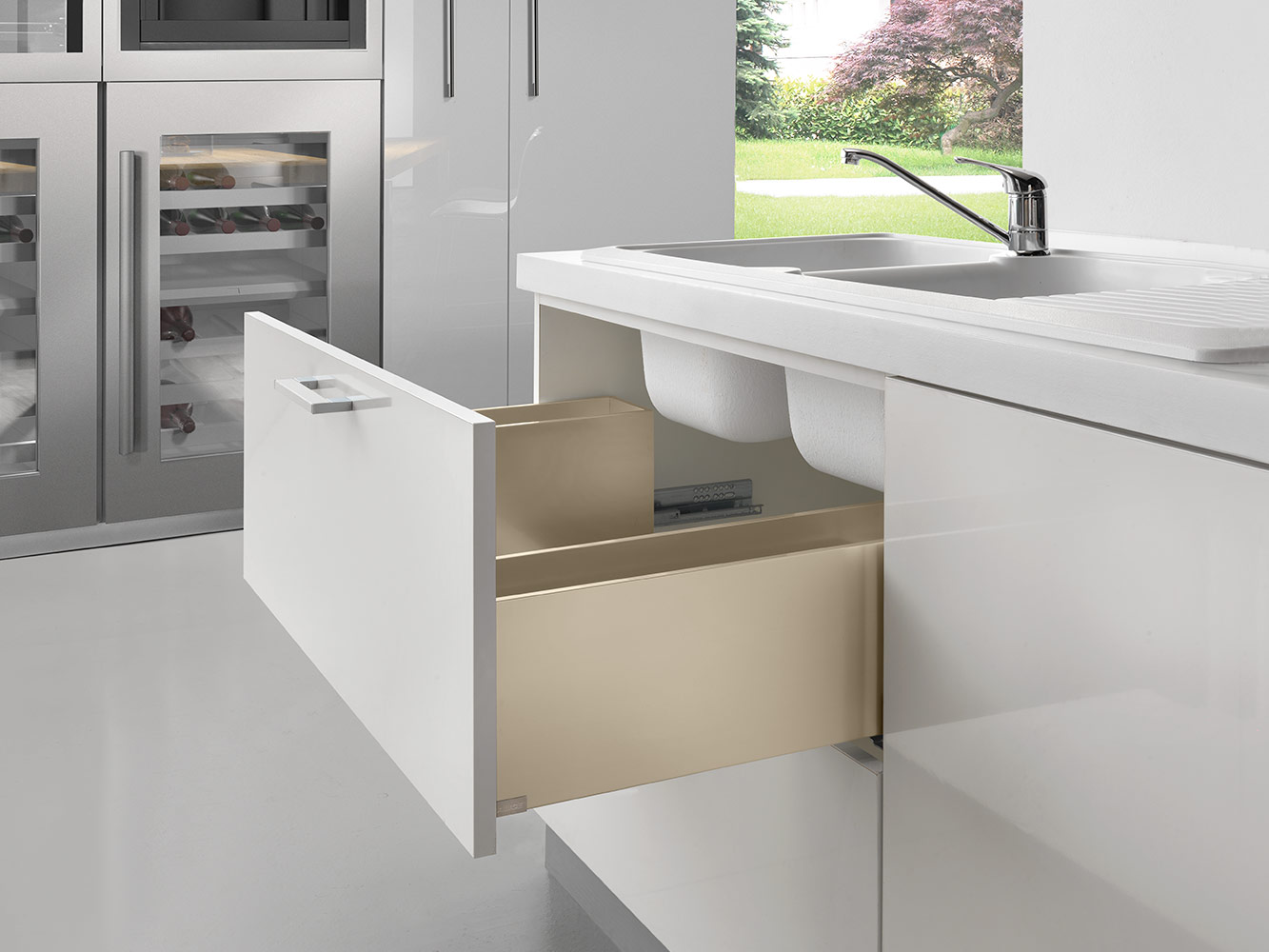

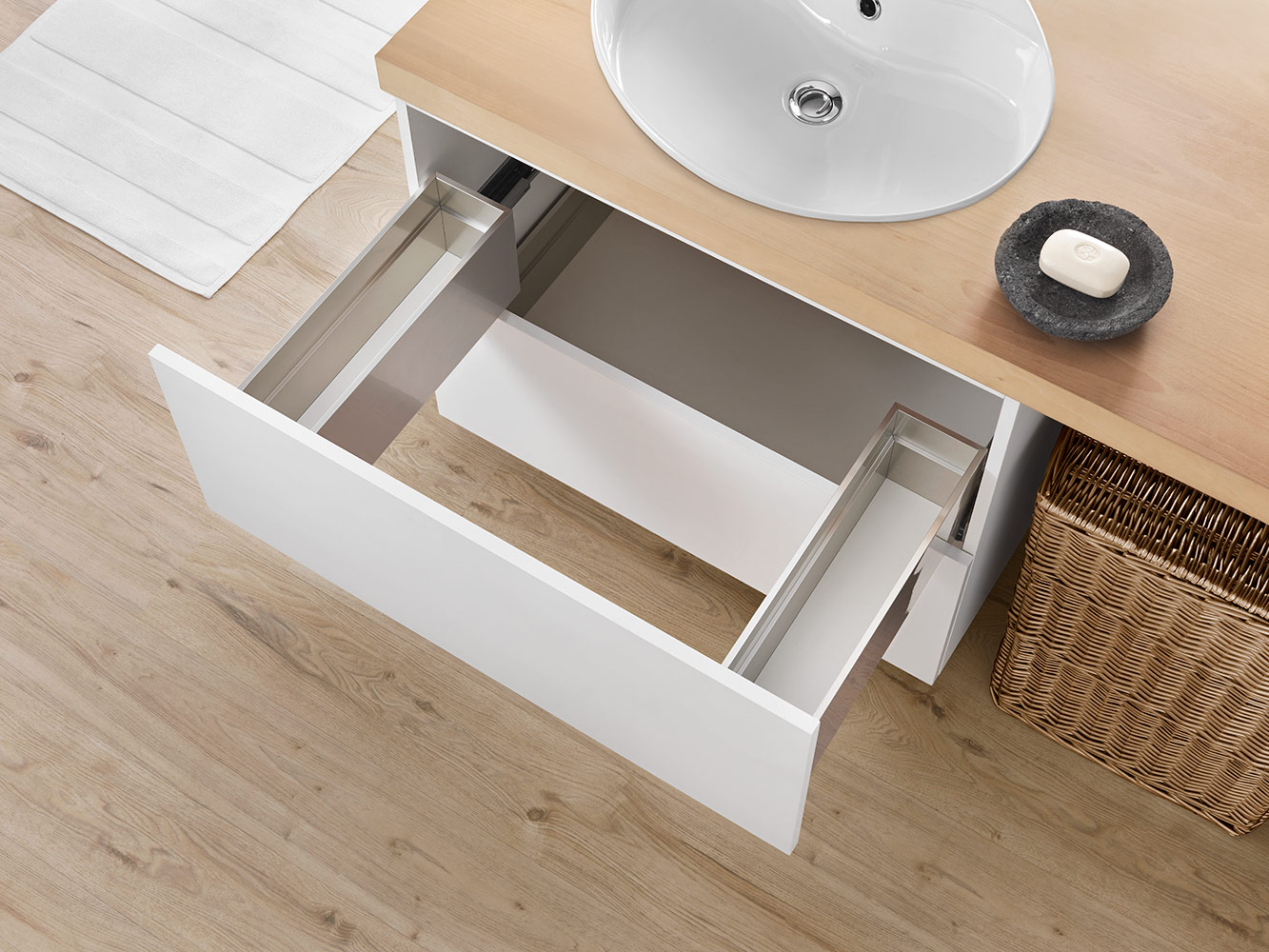

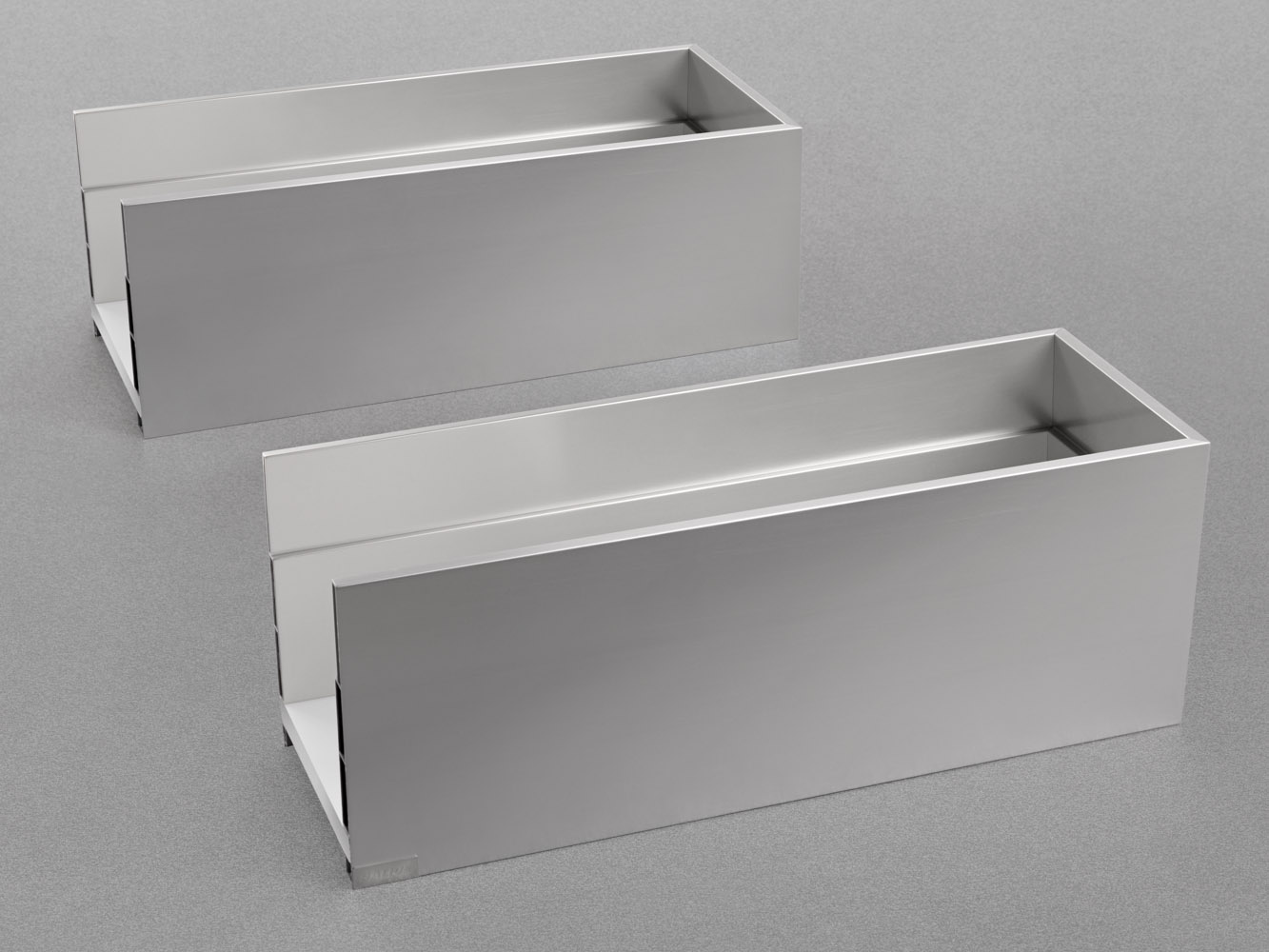

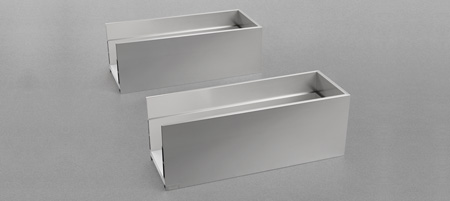

3-Sided - Under-sink drawer - H 178 mm
Height of the side 178 mm
Internal height 149 mm
AMGPXA3
Frontal and back connecting fitting
ASMGR12AGXA
Screw-on frontal and back fixing, screws for wooden frontal included (ø 3.5 x 20 mm)
ASMGR12AGCA
Knock-in frontal and back fixing
AMGPSP3

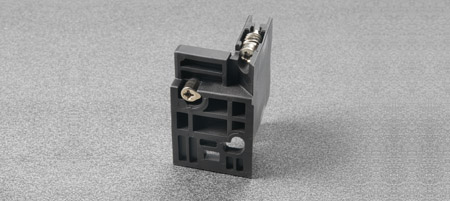

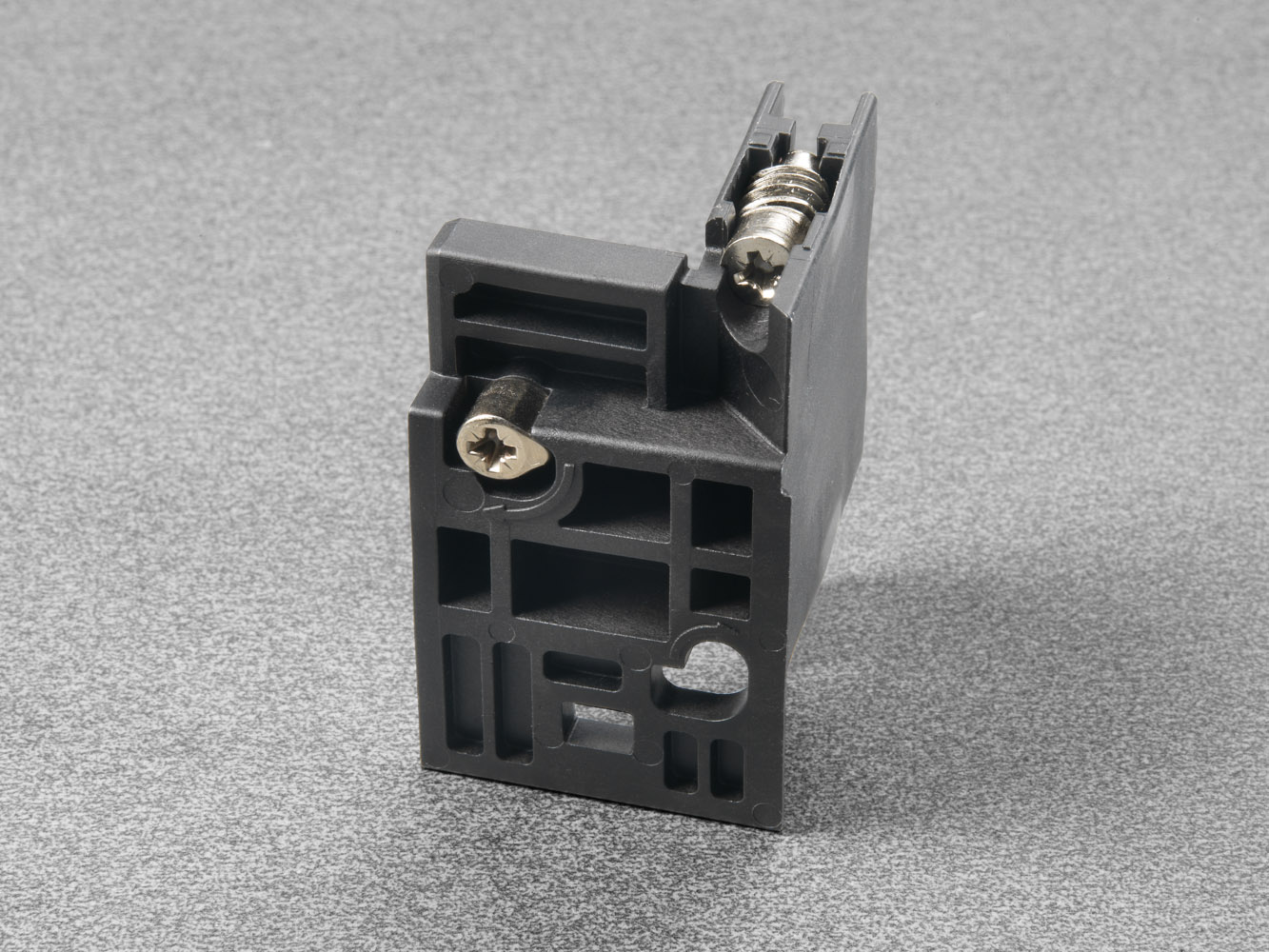

Left back connecting fitting

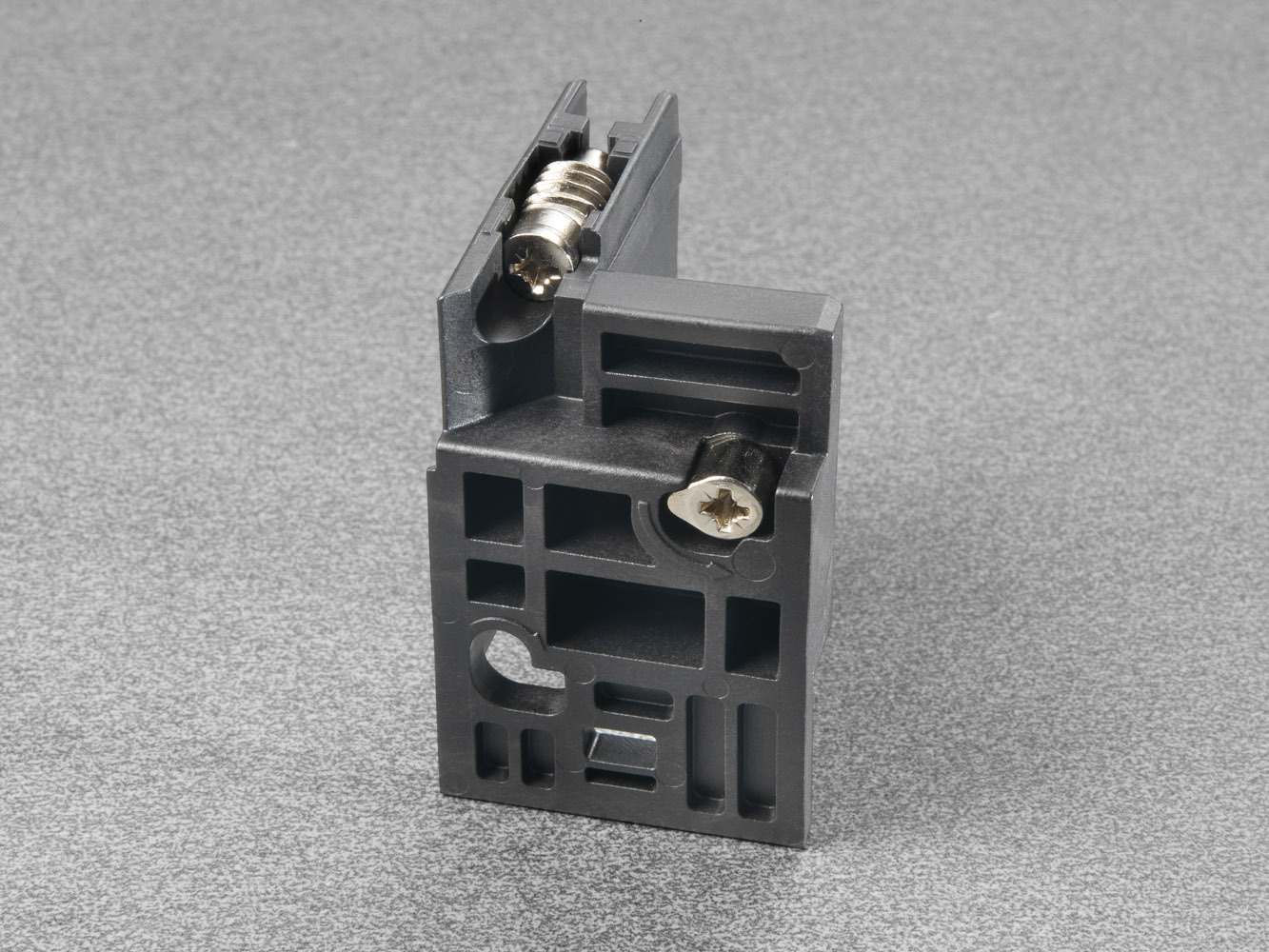

AMGPDP3

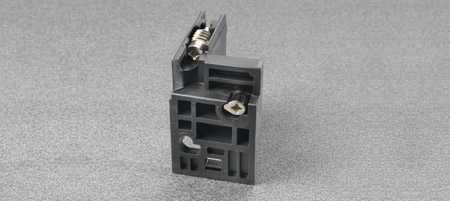

Right back connecting fitting
ASMGP89P3MA

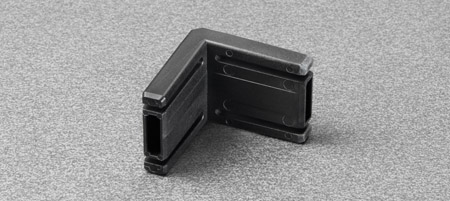

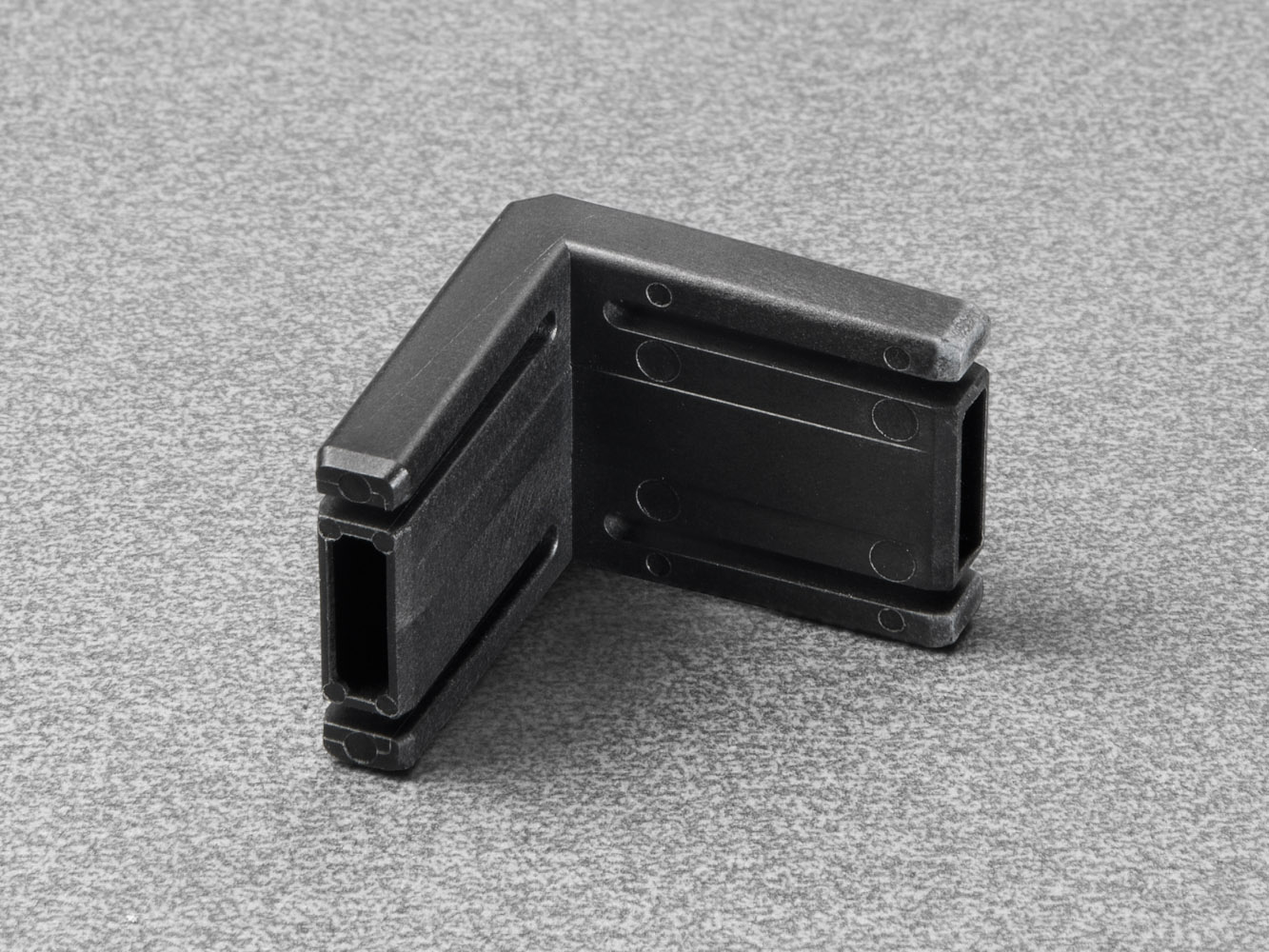

Medium corner connectorFor metal side H 101 mm

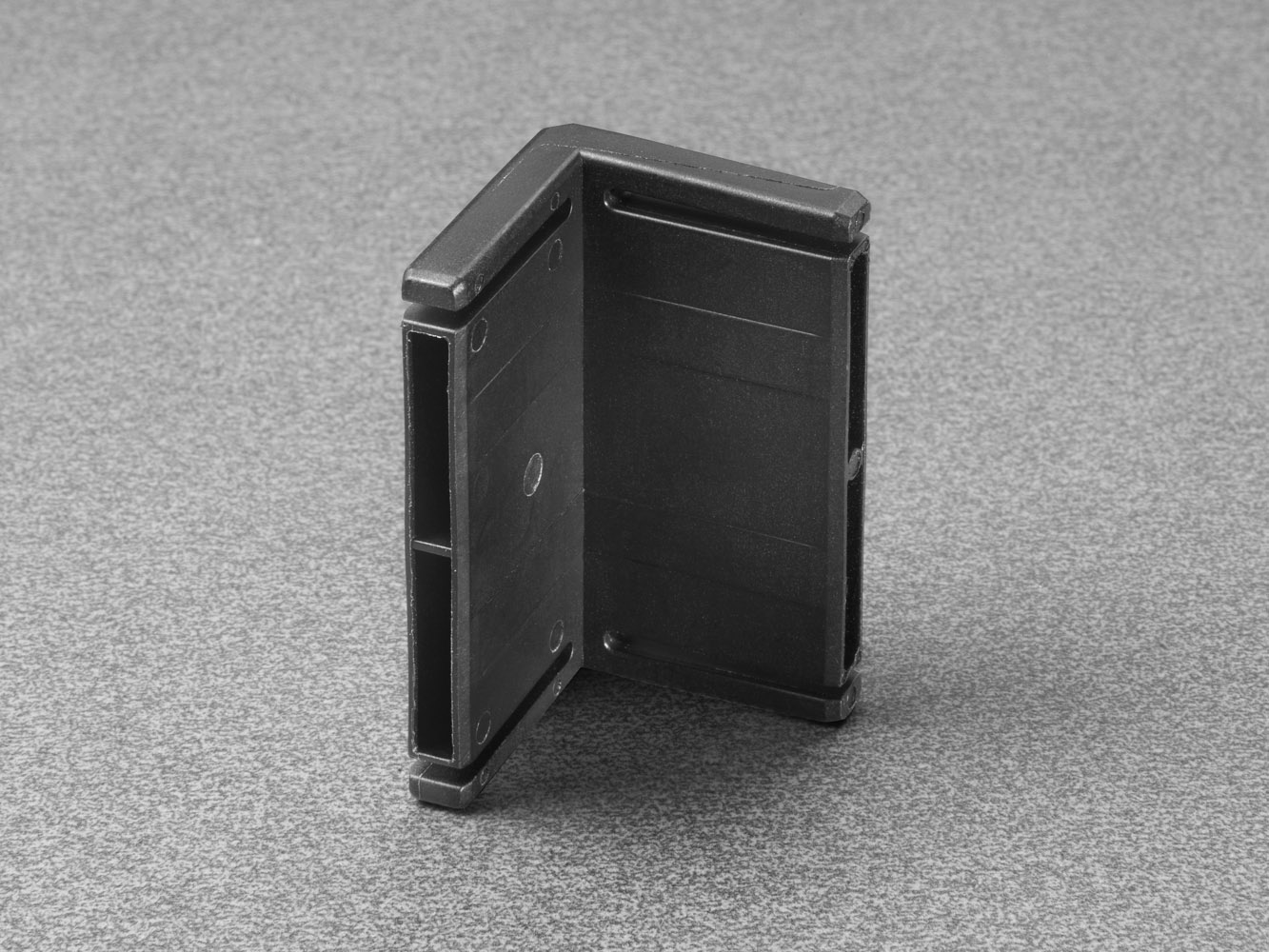

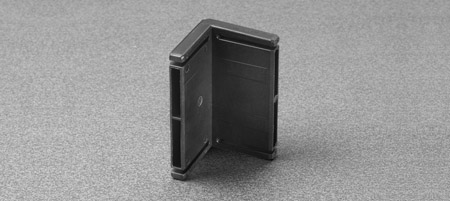

ASMGP89P3AA
High corner connectorFor metal side H 178 mm
ASCCX83H_
Cover cap with embossed logo
ASCCX83H9: Nickel-plated
ASCCX83H6: Titanium
ASCXX83H9
Cover cap with silk-screen printed logo, it can be personalised on request
ASCXX83H9: Nickel-plated
AGDLXA6
Template for the drilling of the drawer frontal
AMDGXAO
Template for frontal and back connecting fitting
AMSRX33

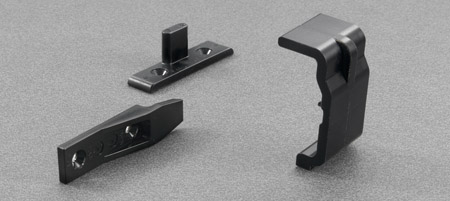

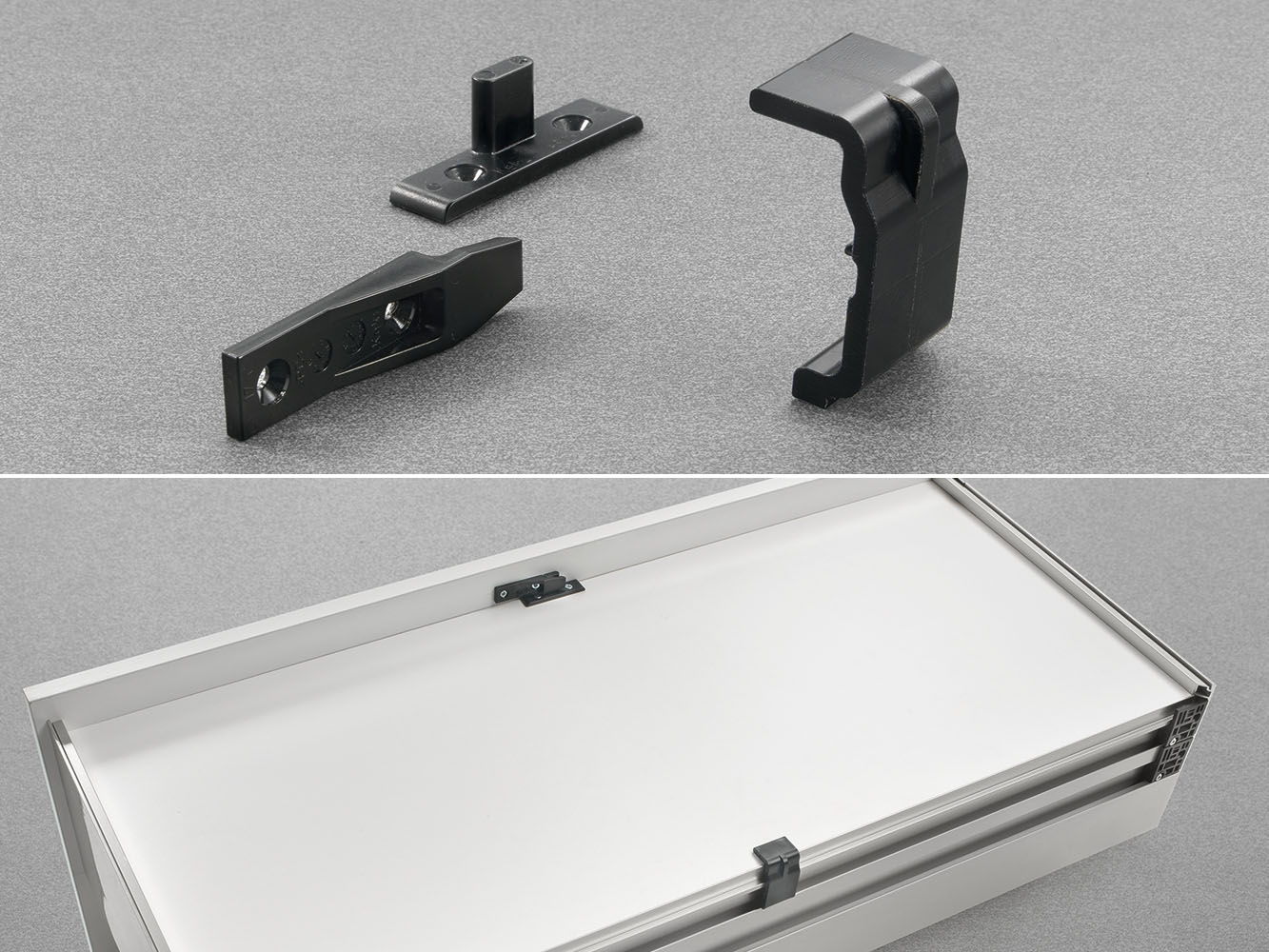

Reinforcing supports for the bottom of the drawer
