Simple clean lines with a minimal wall thickness
Clean and streamlined aestetics uncluttered with holes or assembly components, Lineabox is very versatile and highly customizable. Assembly is rapid without the need for machinery.
Versions:
• Drawer

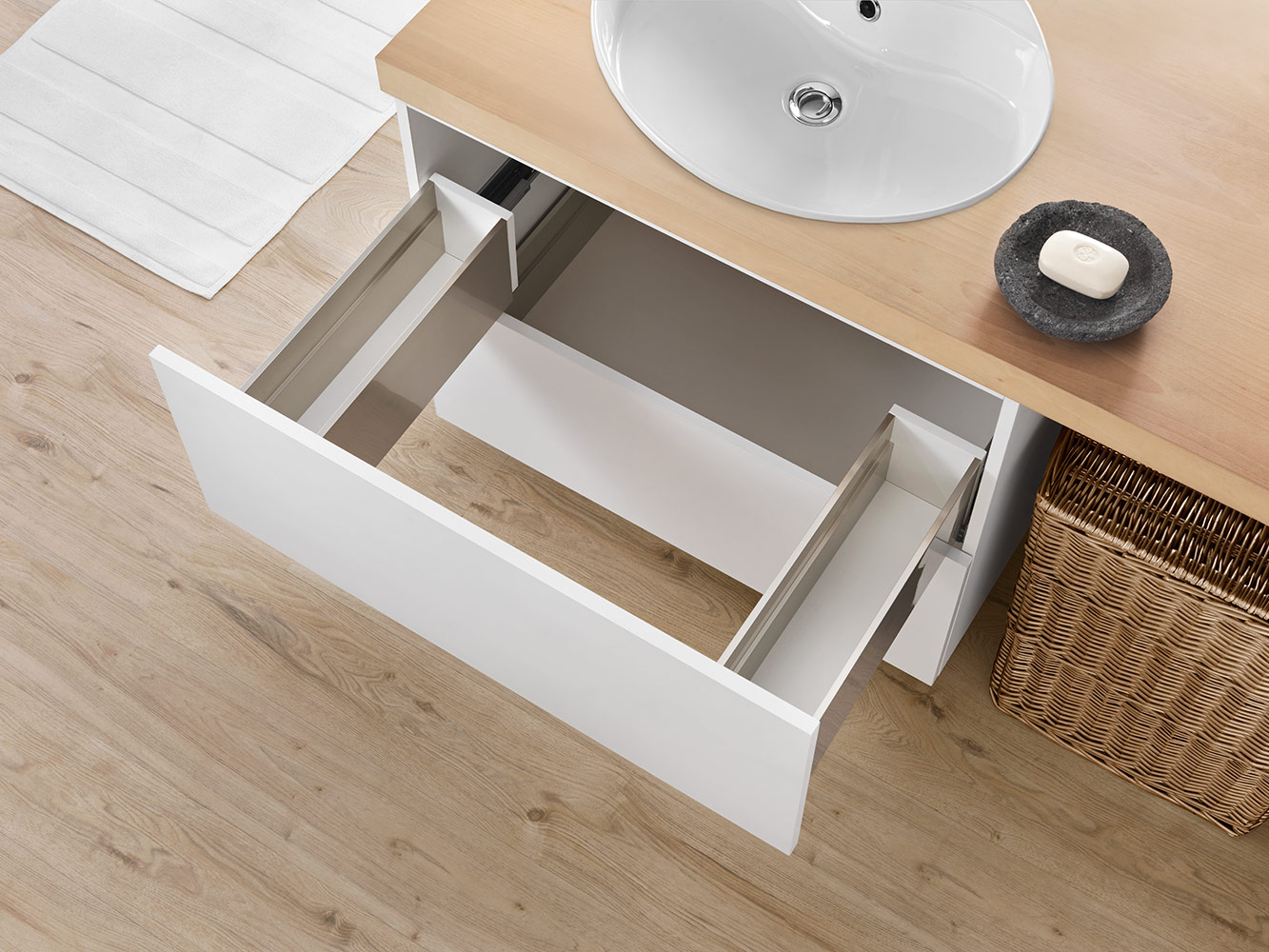

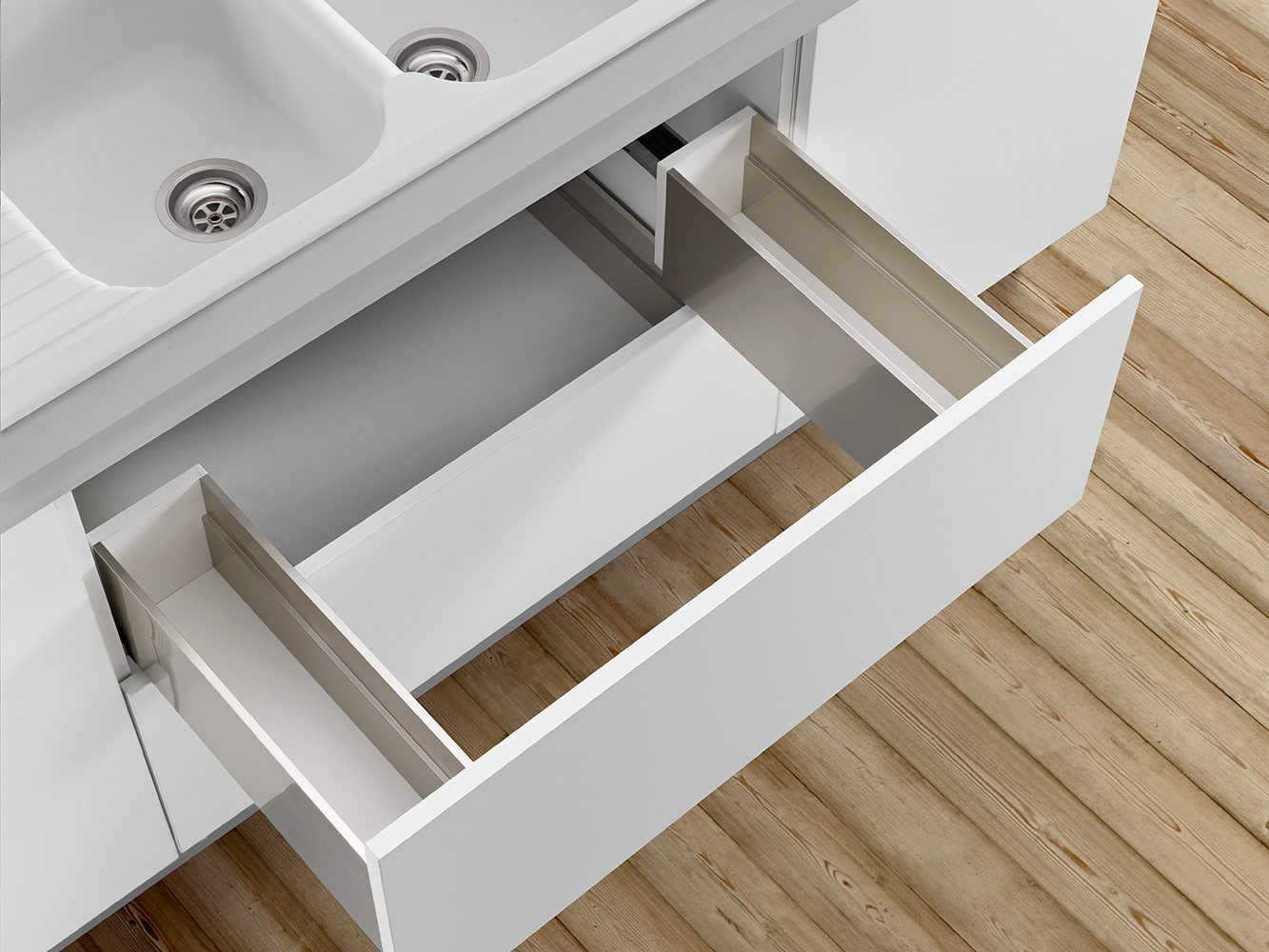

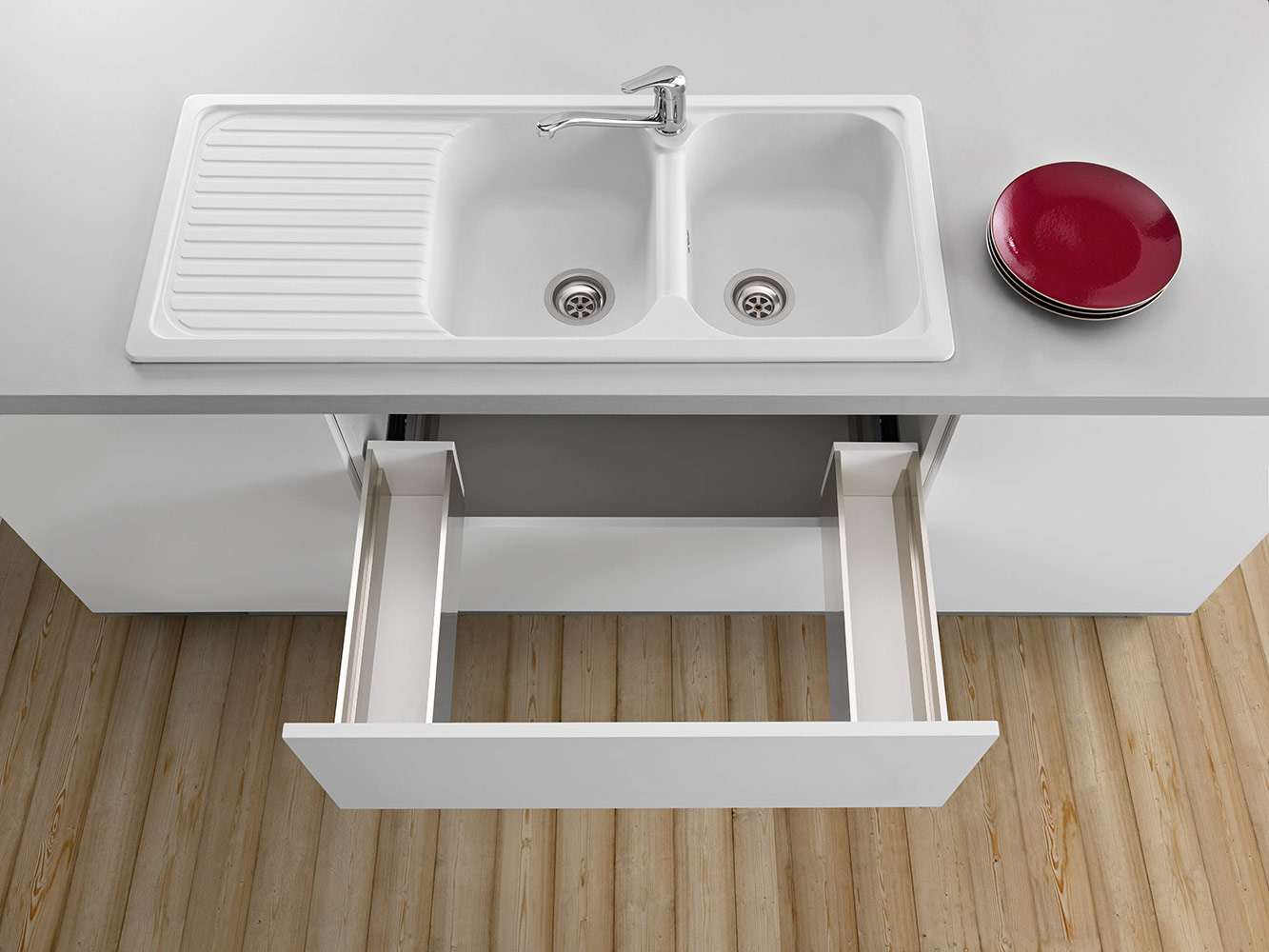

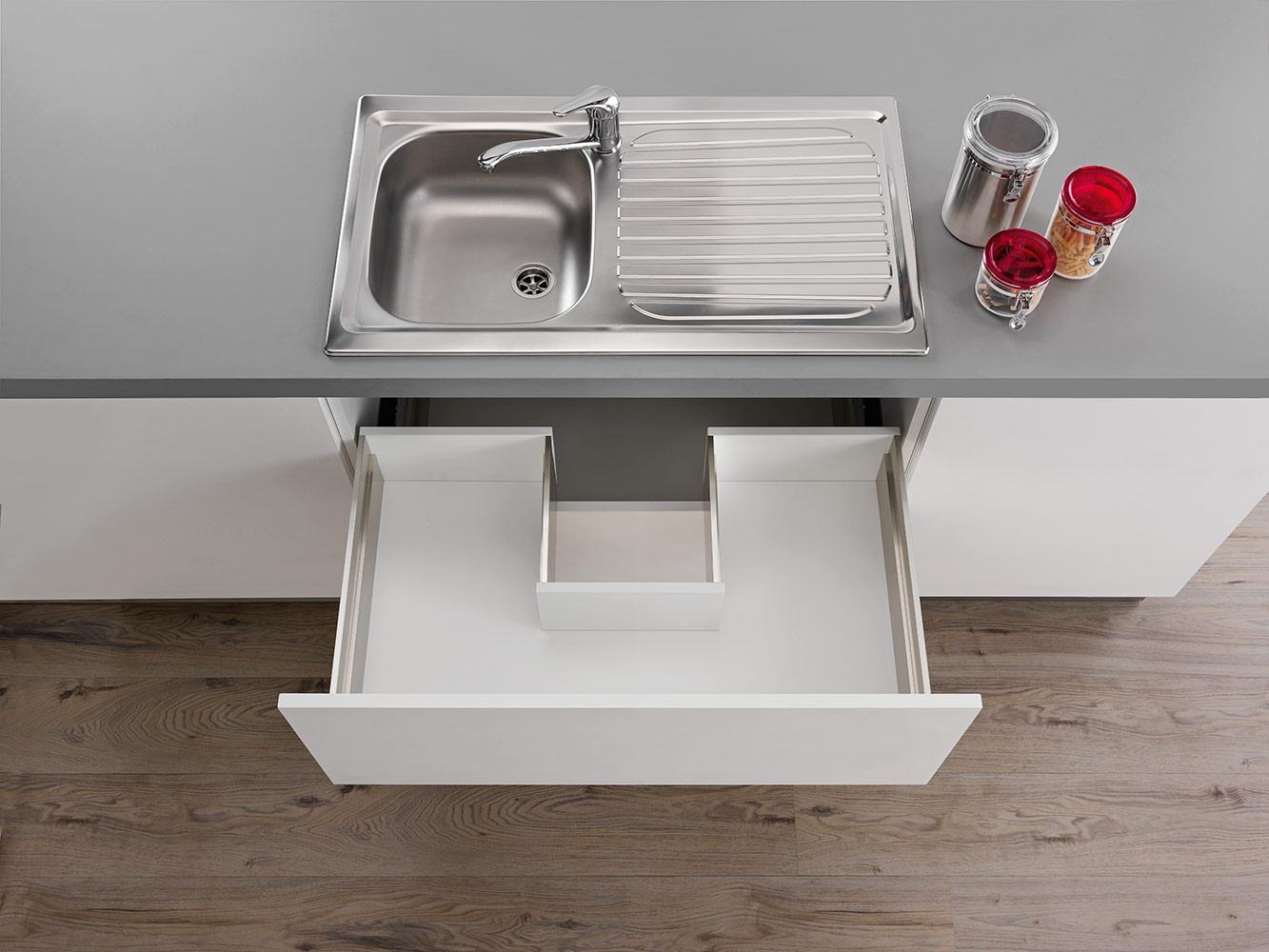

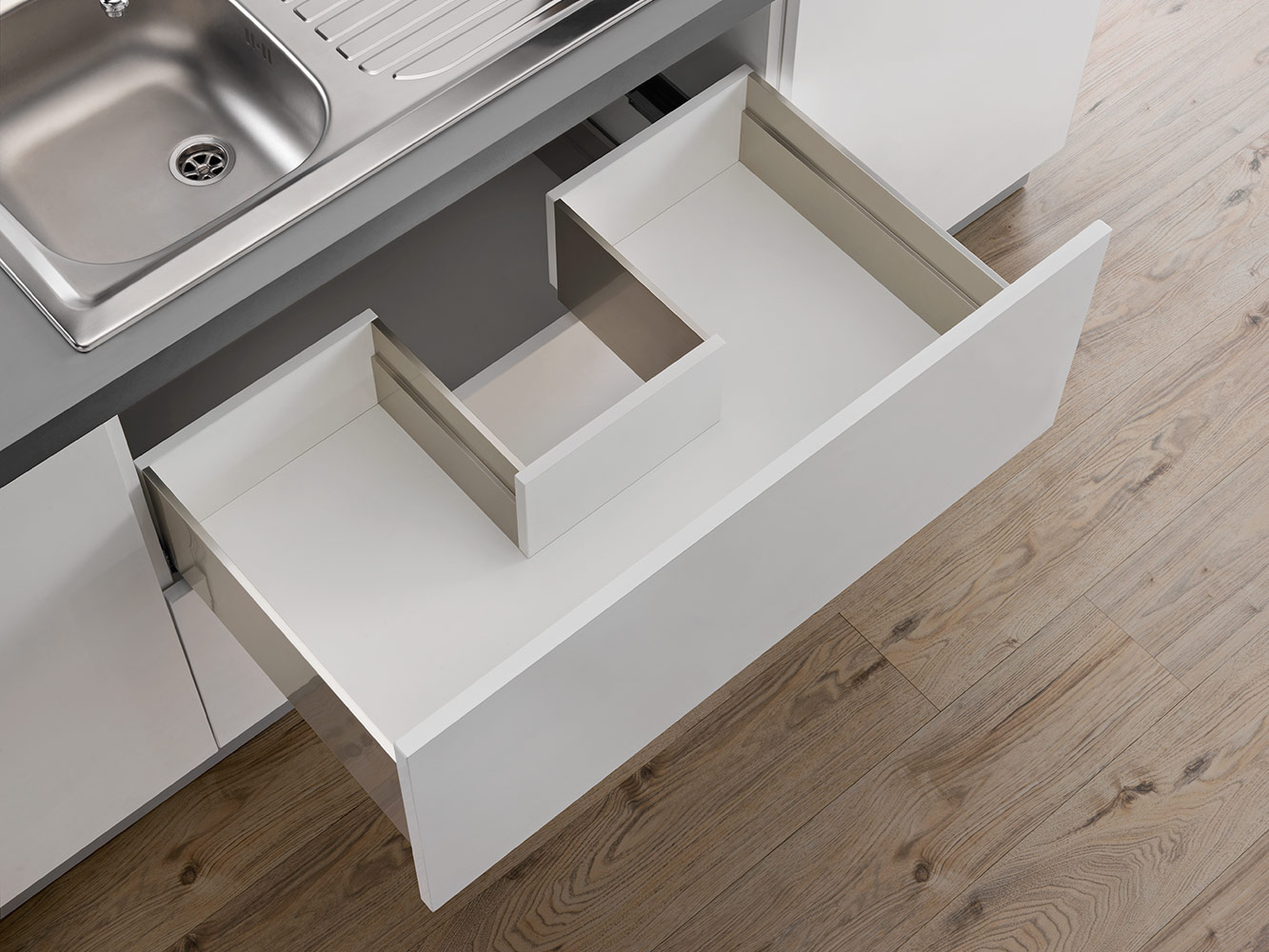

• Under-sink drawer
Available heights:
• Height of the side 101 mm - Internal height 72 mm
• Height of the side 178 mm - Internal height 149 mm
• Height of the side 237 mm - Internal height 208 mm
• Height of the side 75 mm - Internal height 46 mm

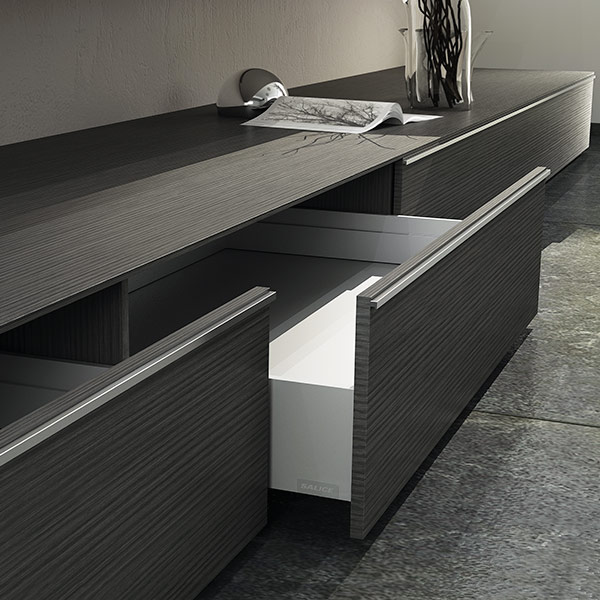

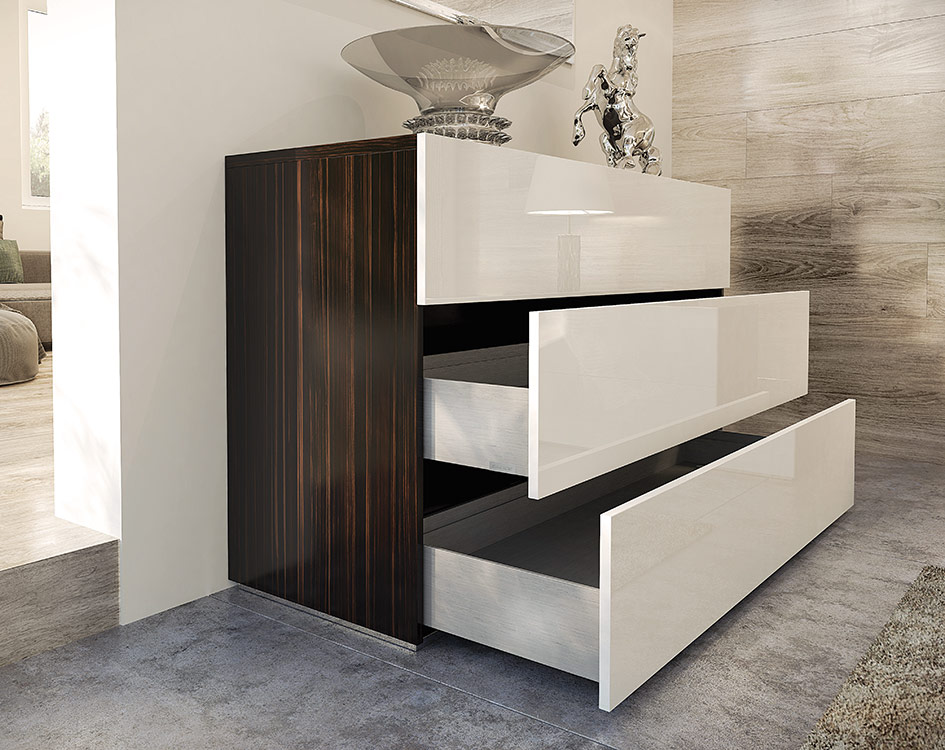

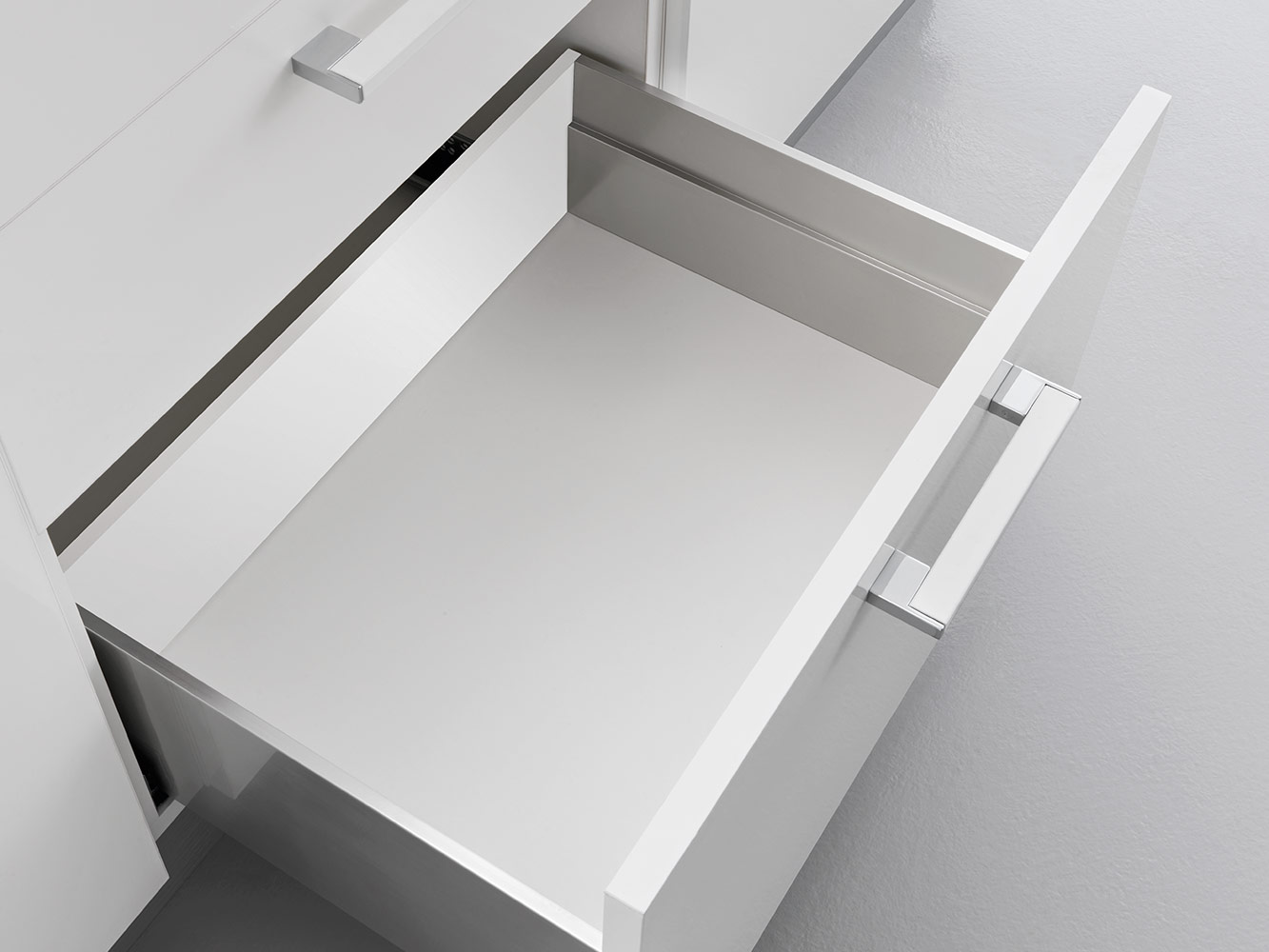

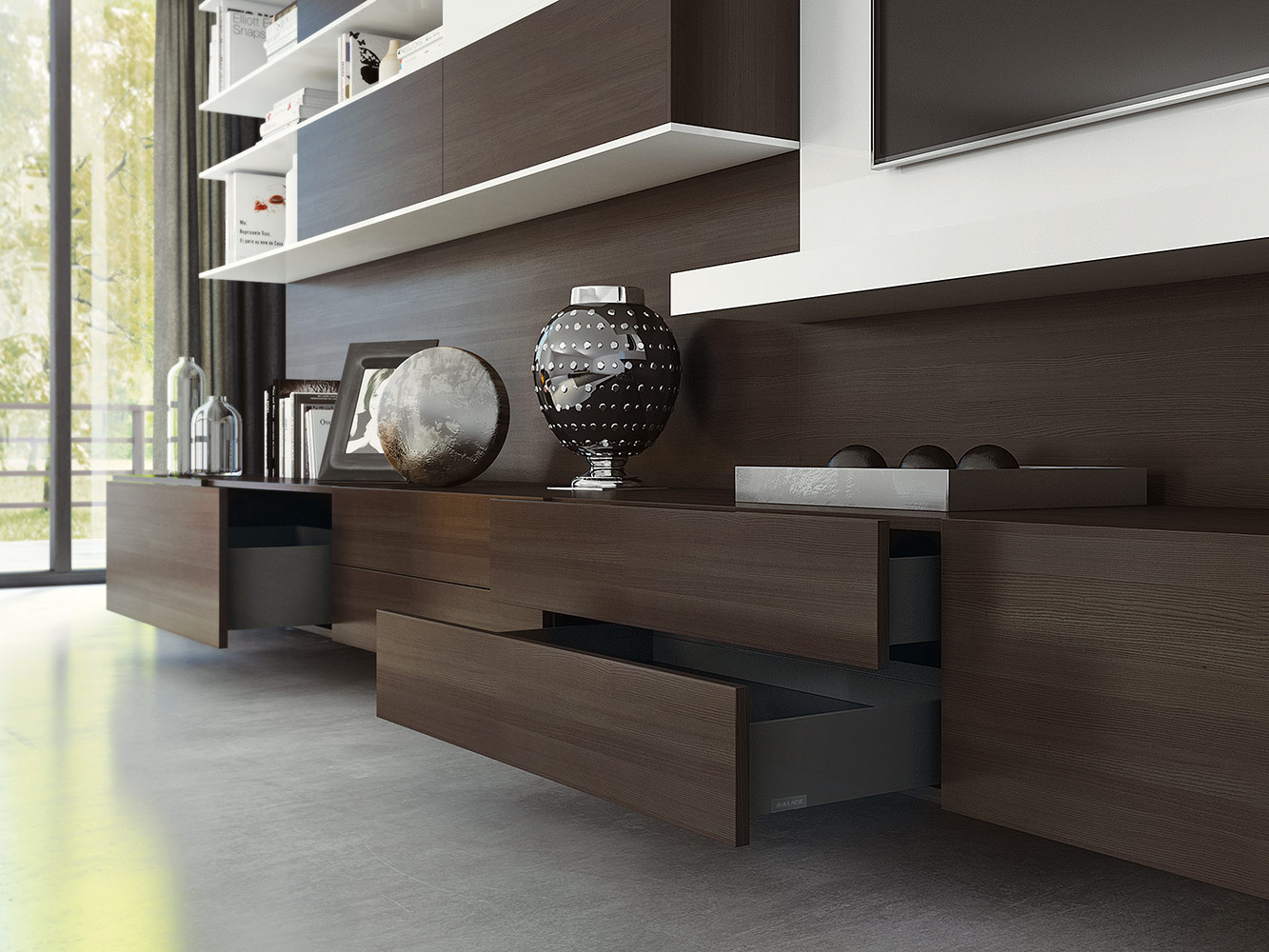

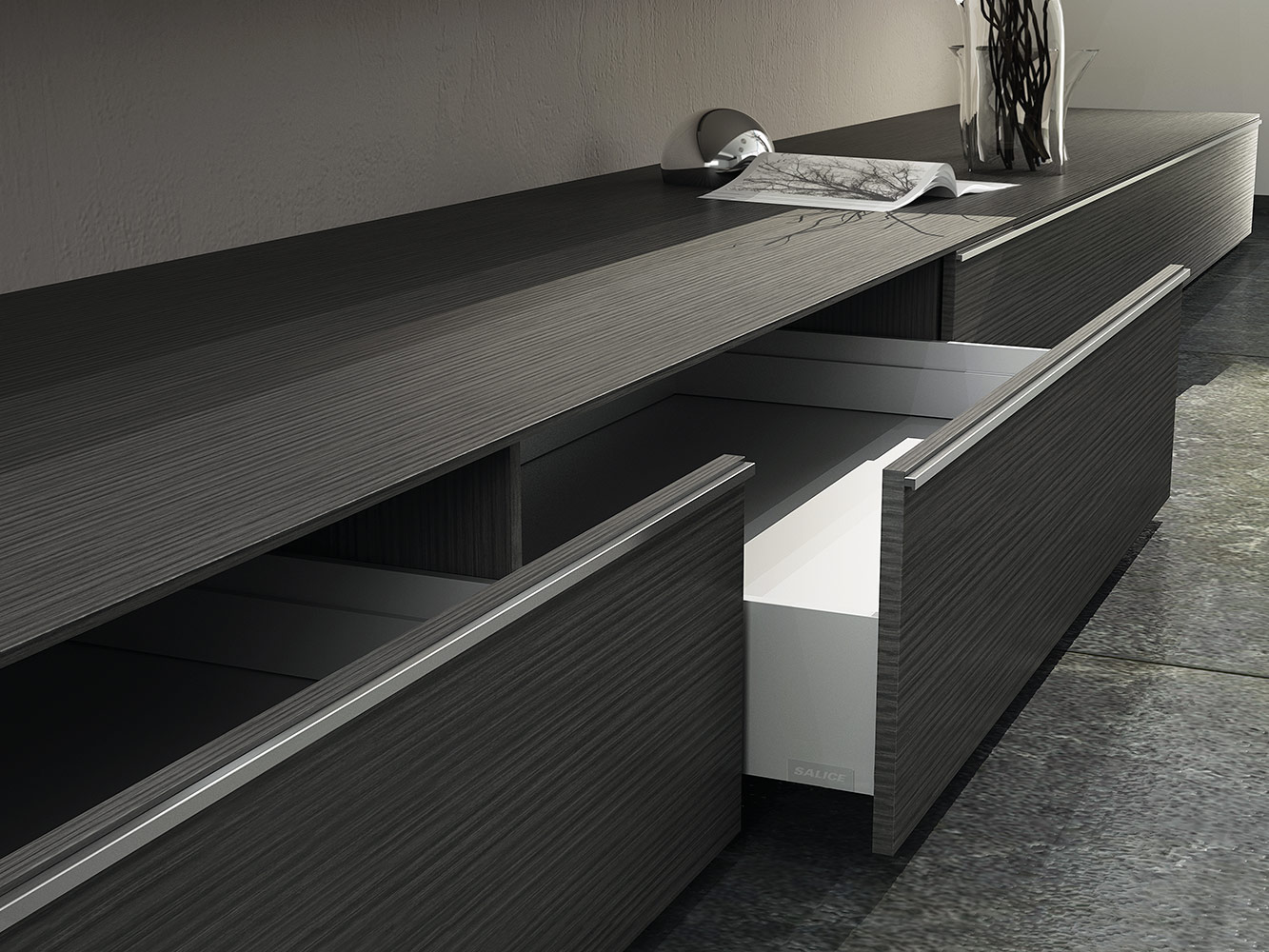

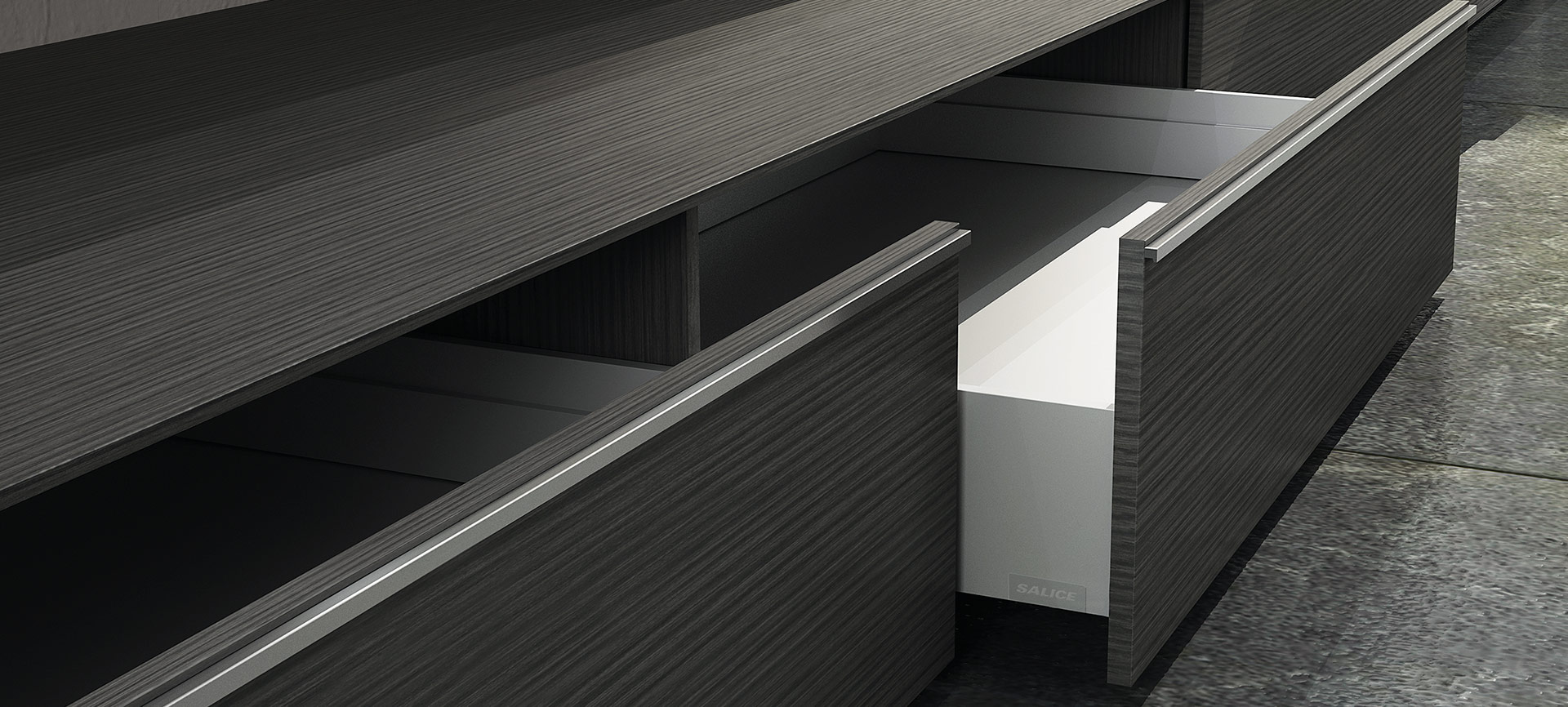

A light and thin drawer, suitable for applications including kitchens, living rooms and office furniture.
Full extension runners enable a fluid and sliding movement.
- Lineabox Easy metal sides, wooden bottom and back panel
- For use with Progressa and Futura full-extension runners
- Supplied in 3 metre length side profiles or cut to length
- Available with and without frontal and back premounted connecting fittings
- Available kit for the composition of a drawer including a pair of runners
- Rapid assembly system, with no machinery needed
- Available template for the drilling of the drawer frontal (optional)
- Rapid mounting and removal of drawer frontal
- Height, sideways and depth adjustment of the drawer incorporated in the runner fixing clips
- Bottom thickness: 16 mm
- Material: aluminium
- Sides: 90° cut end
- Finishes: White - Slate grey - Champagne - Stainless steel

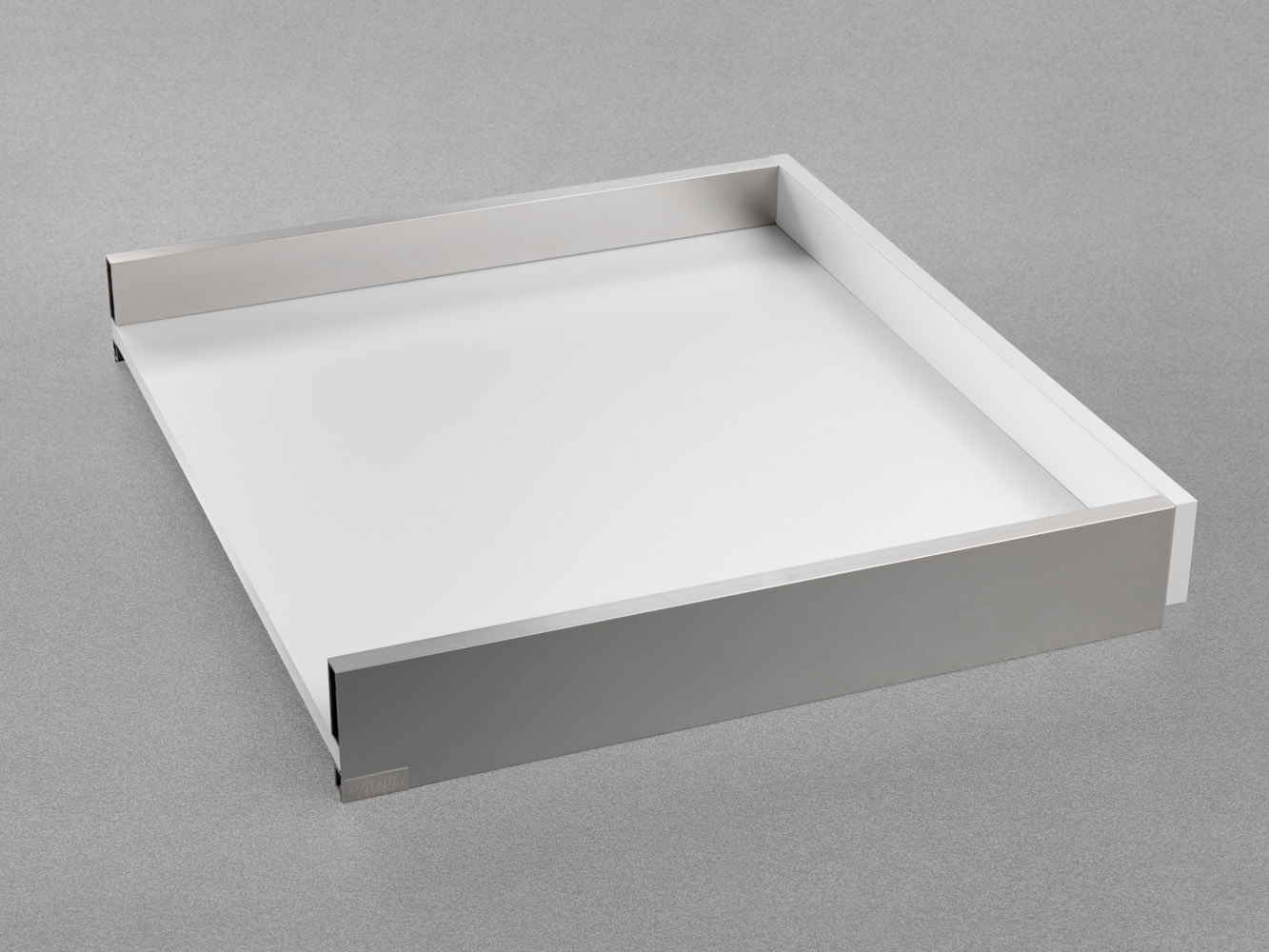

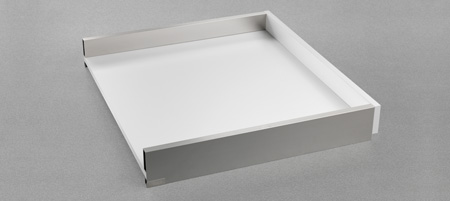

2-Sided - H 75 mm
Height of the side 75 mm
Internal height 46 mm

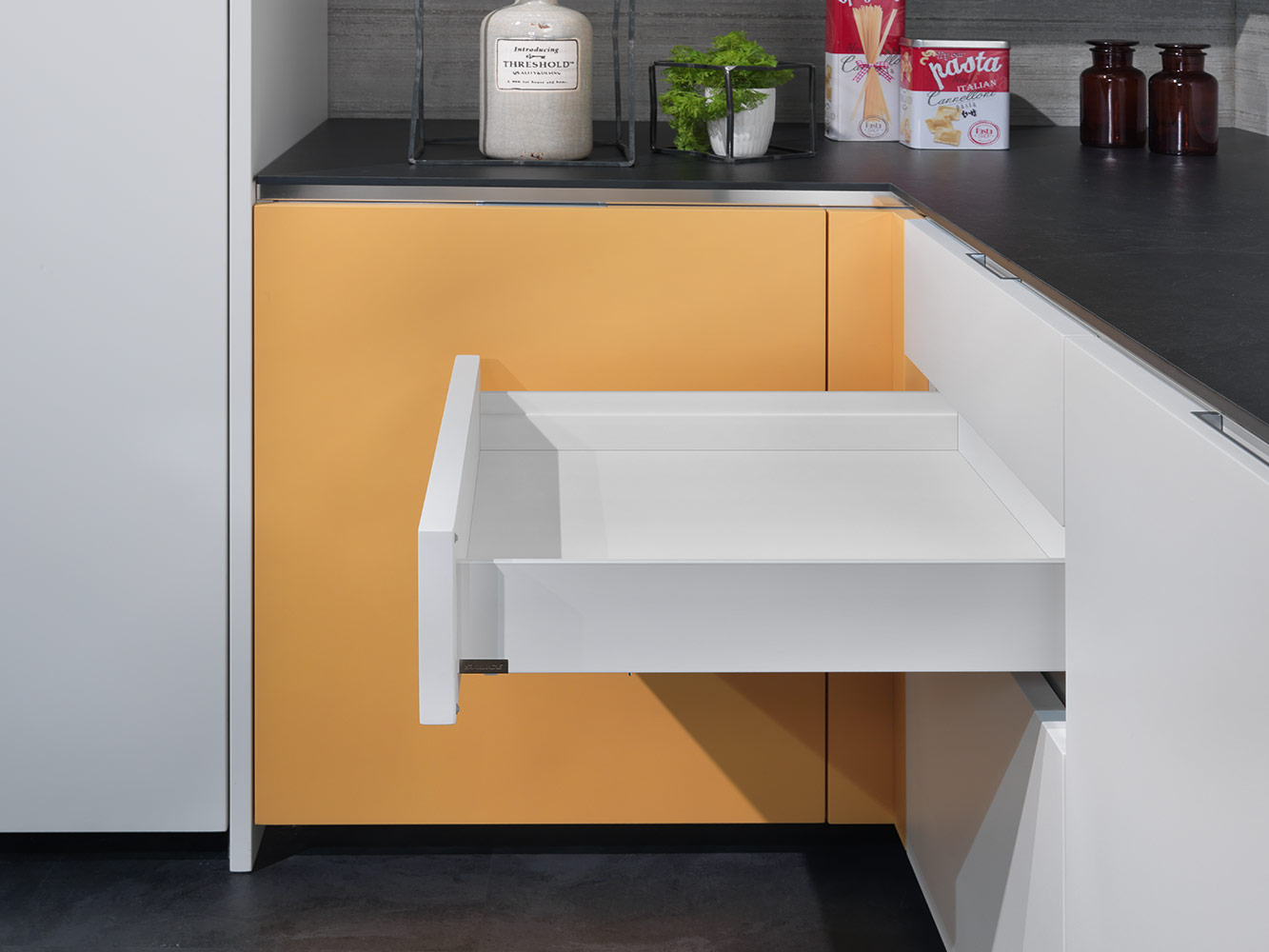

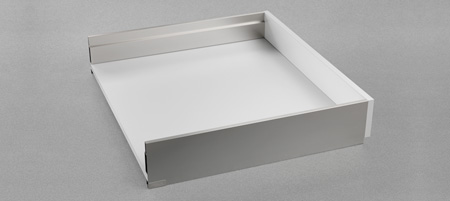

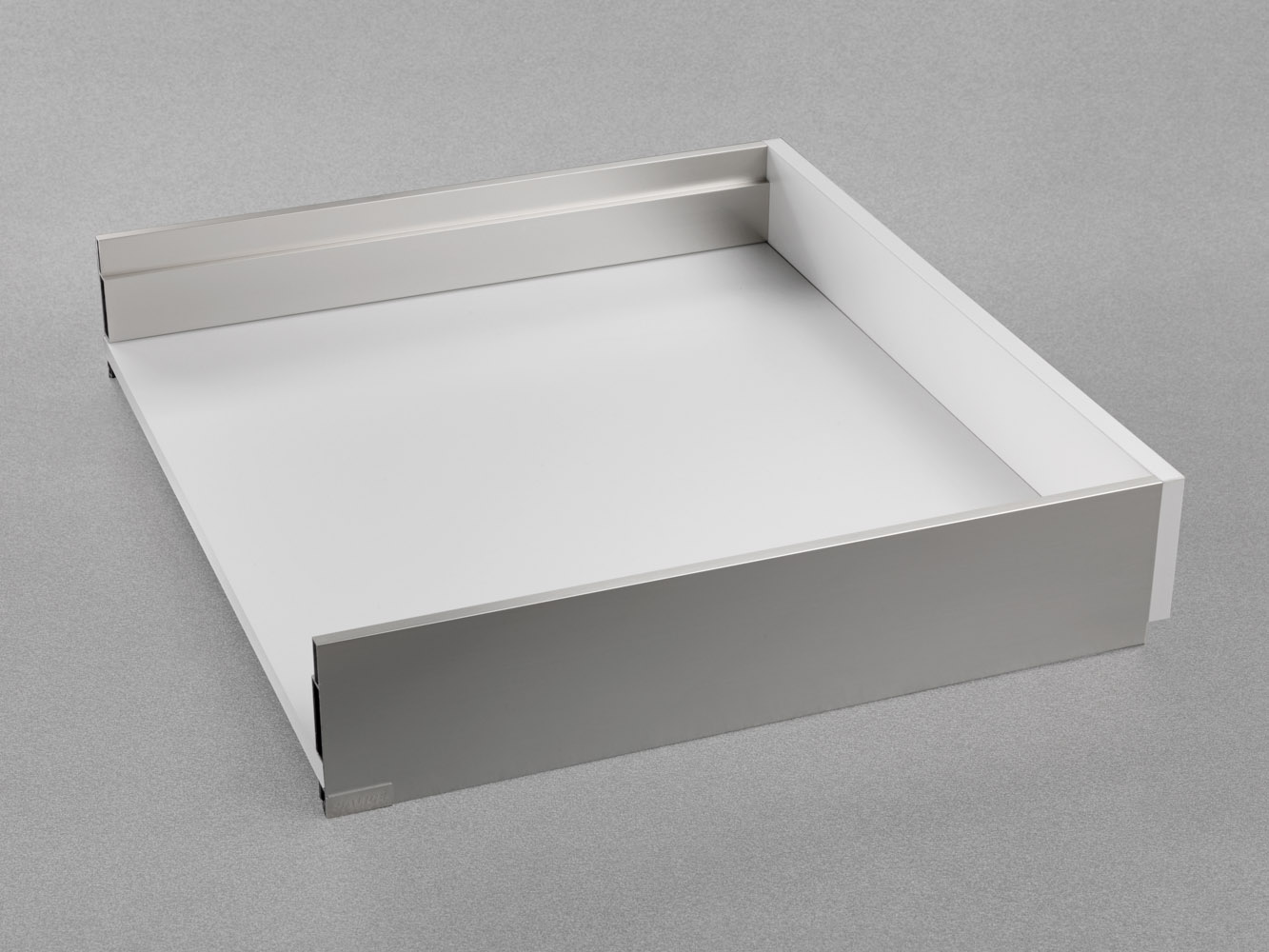

2-Sided - H 101 mm
Height of the side 101 mm
Internal height 72 mm

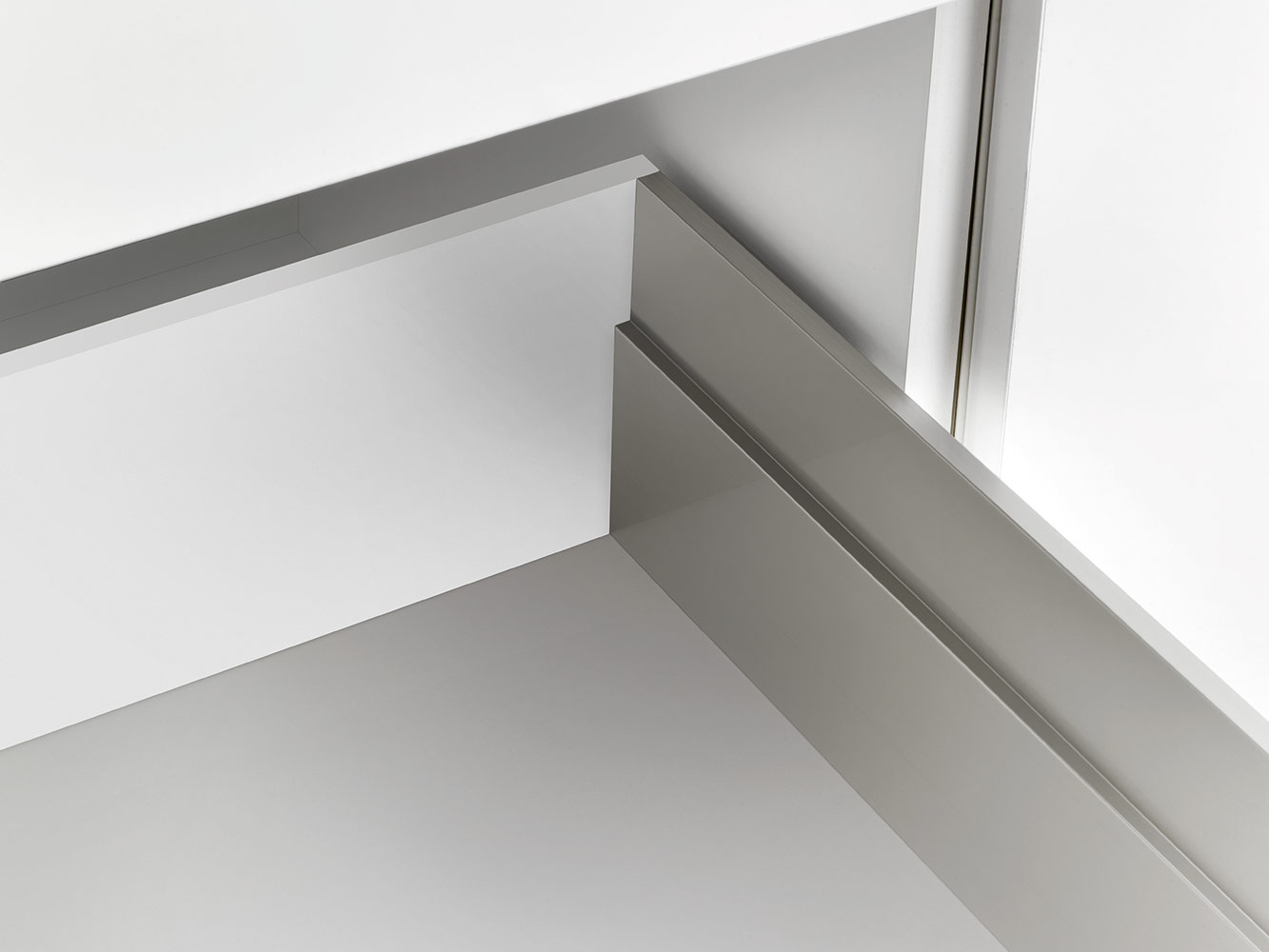

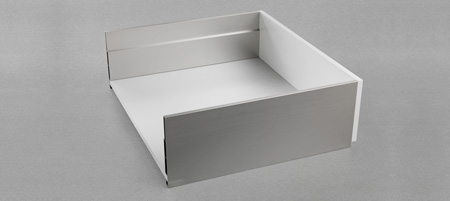

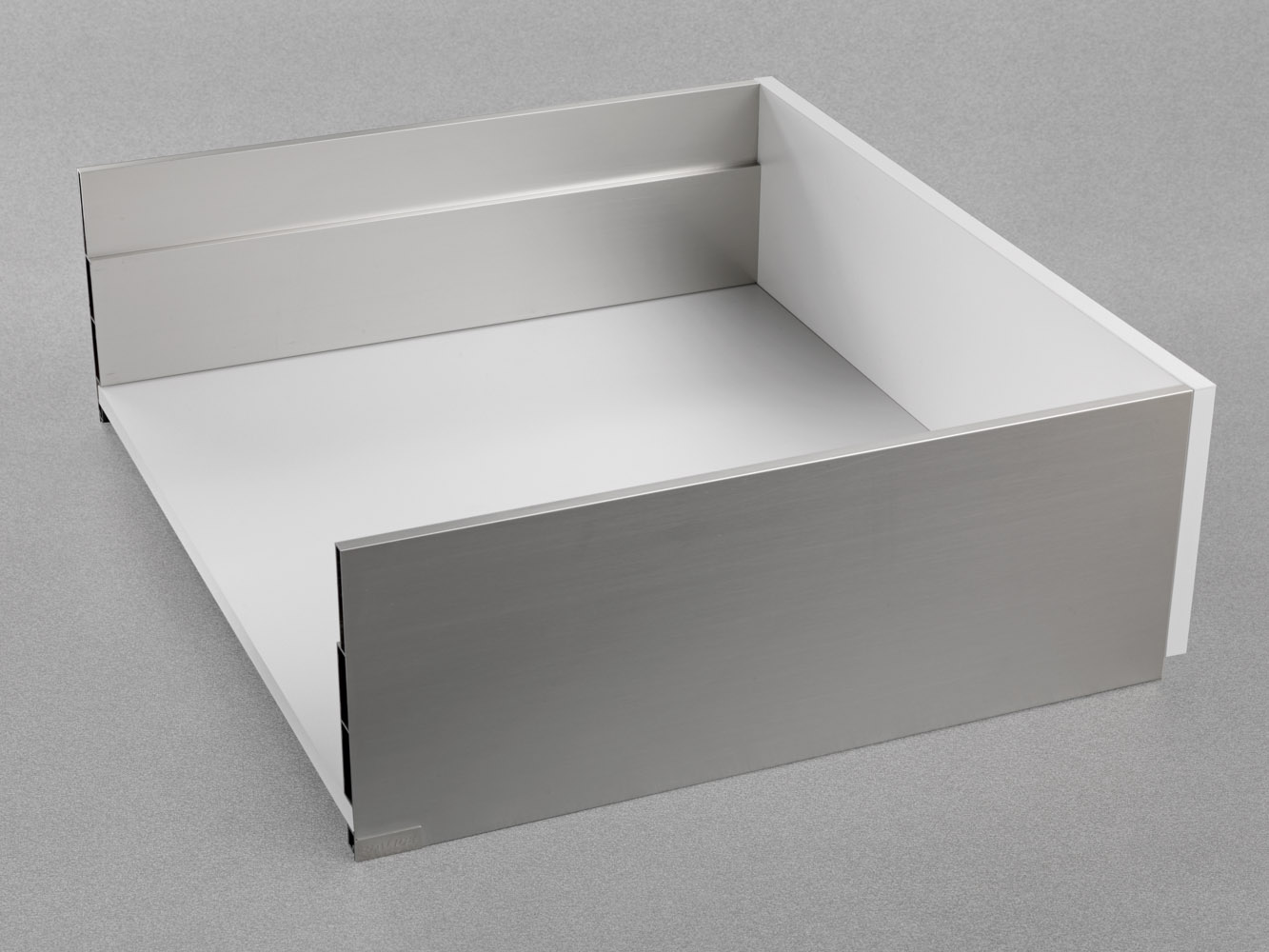

2-Sided - H 178 mm
Height of the side 178 mm
Internal height 149 mm

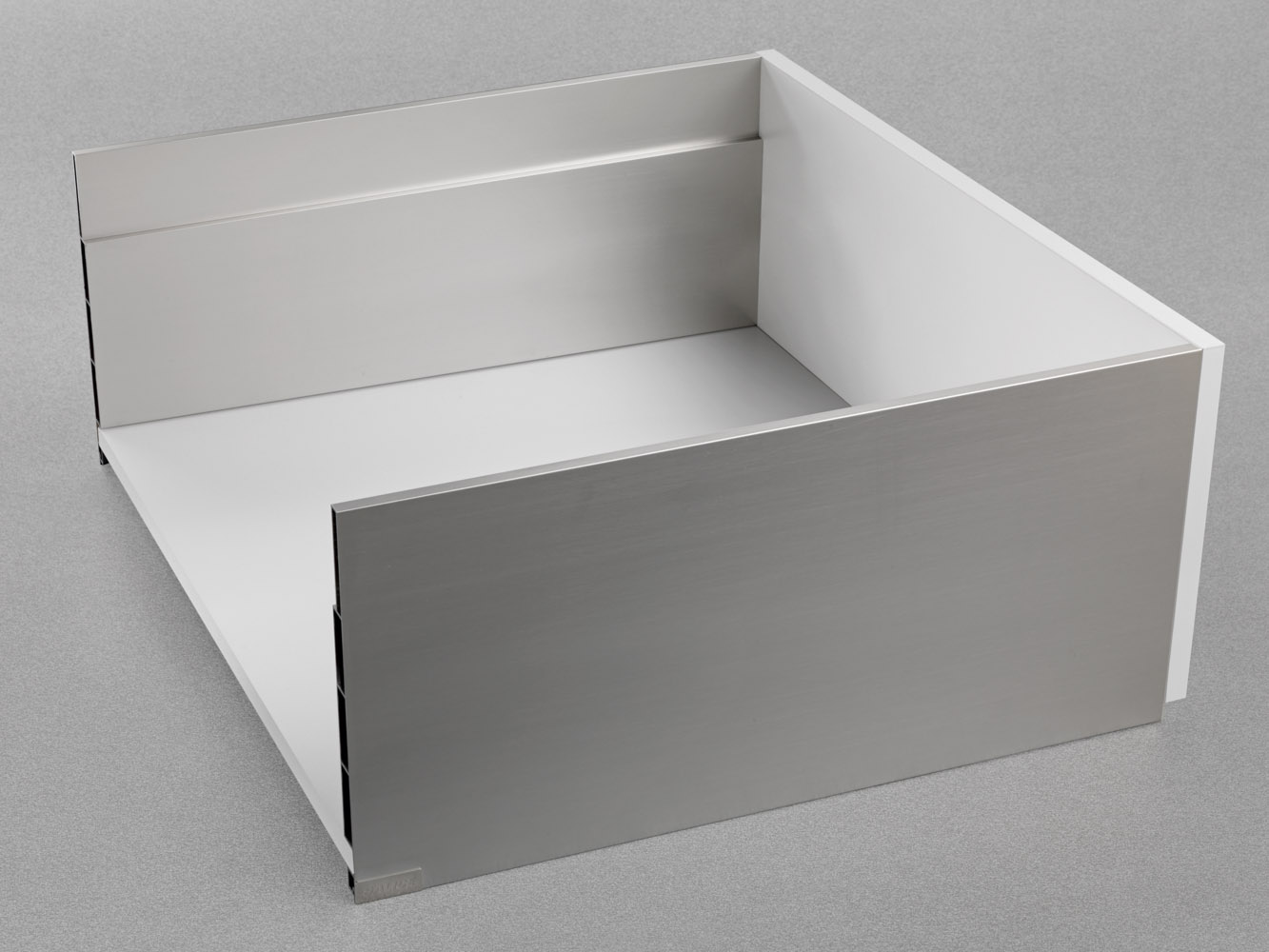

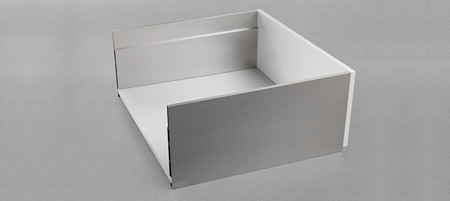

2-Sided - H 237 mm
Height of the side 237 mm
Internal height 208 mm

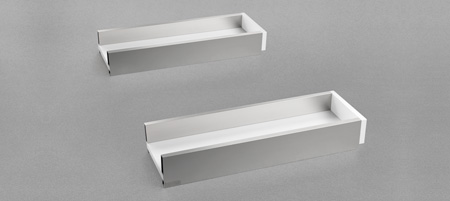

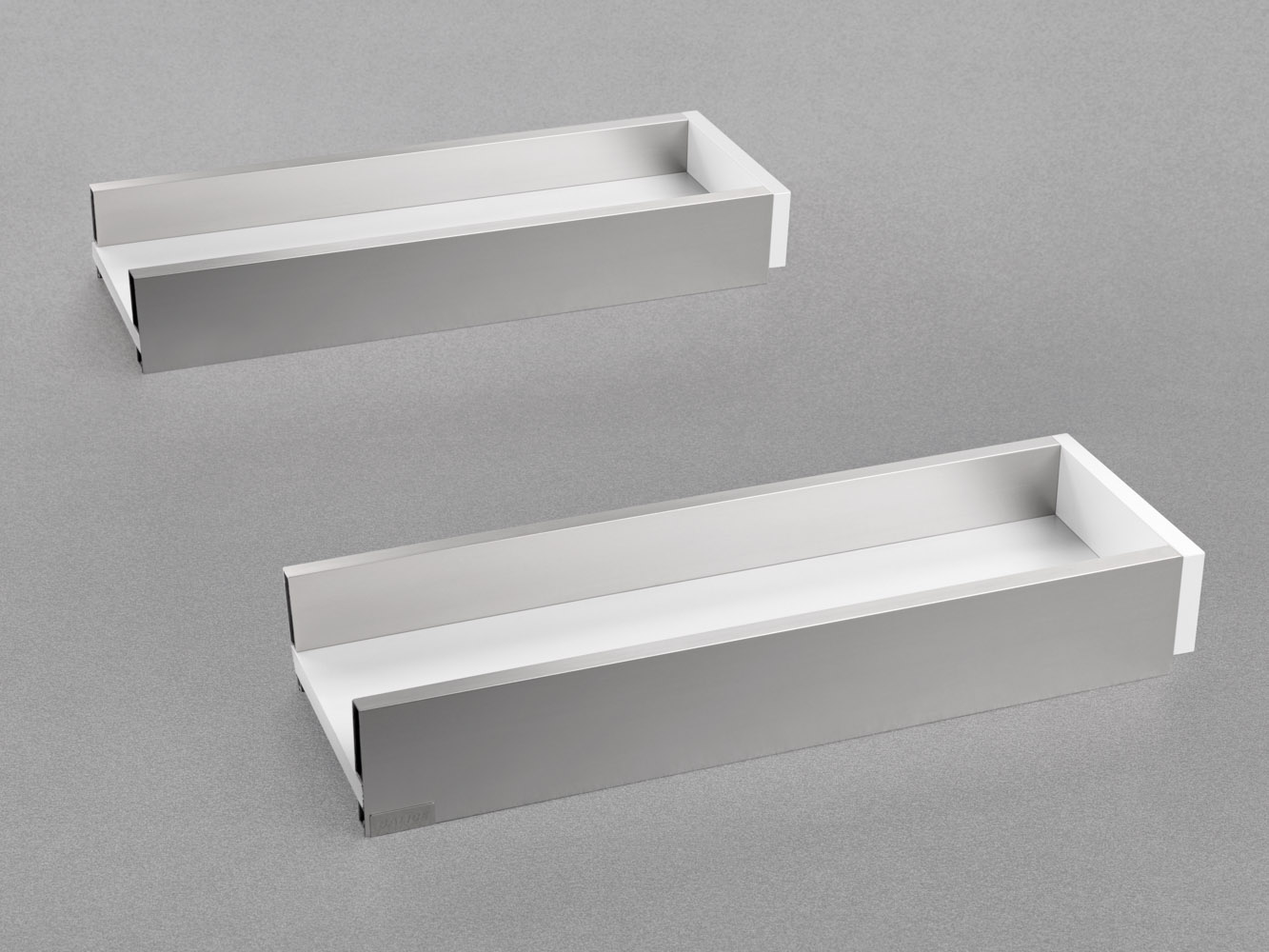

2-Sided - Under-sink drawer - H 75 mm
Height of the side 75 mm
Internal height 46 mm

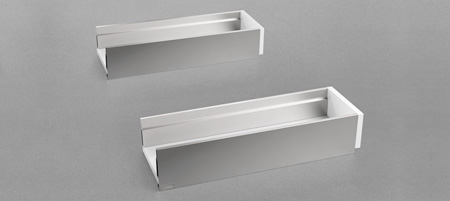

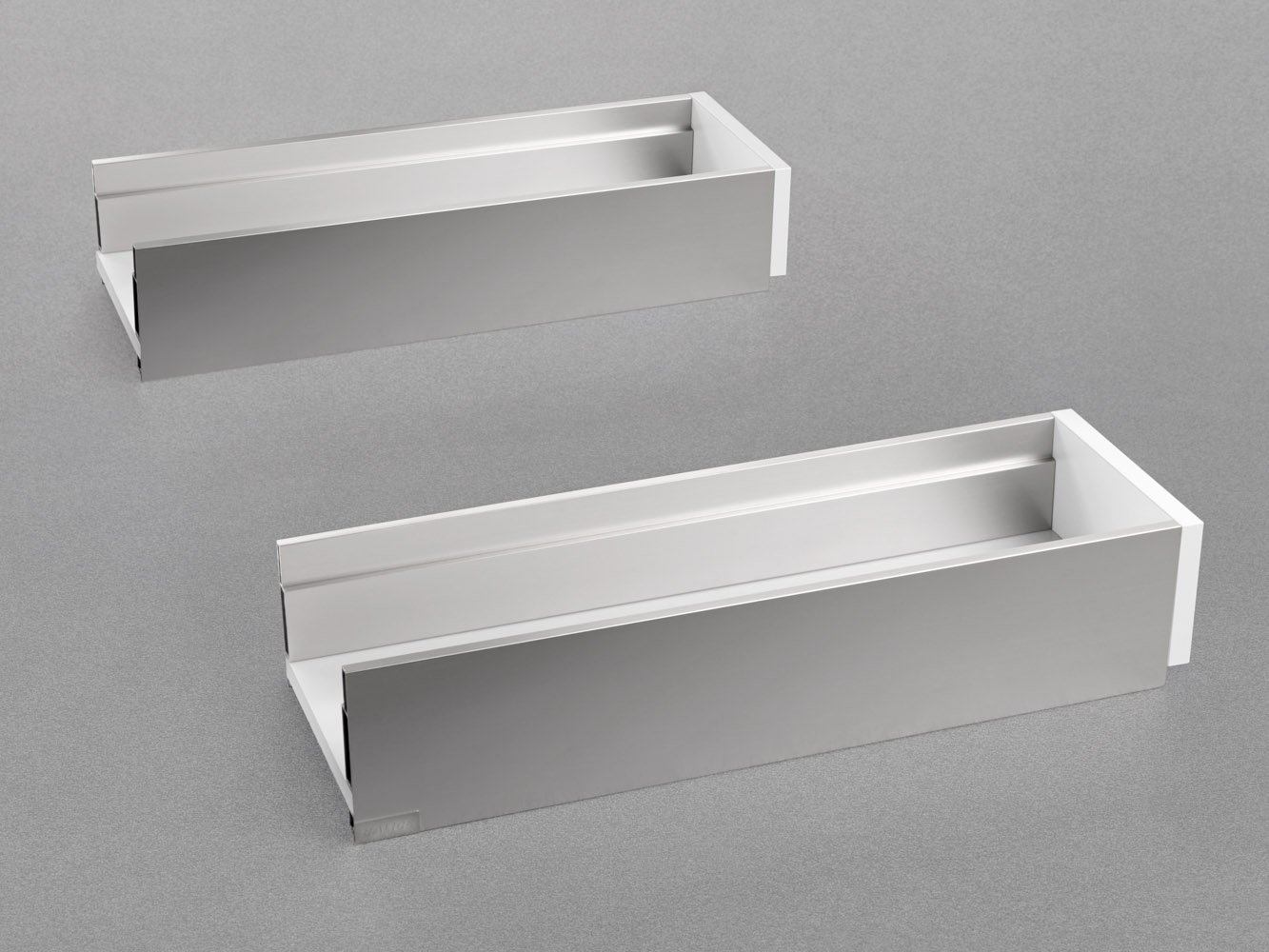

2-Sided - Under-sink drawer - H 101 mm
Height of the side 101 mm
Internal height 72 mm

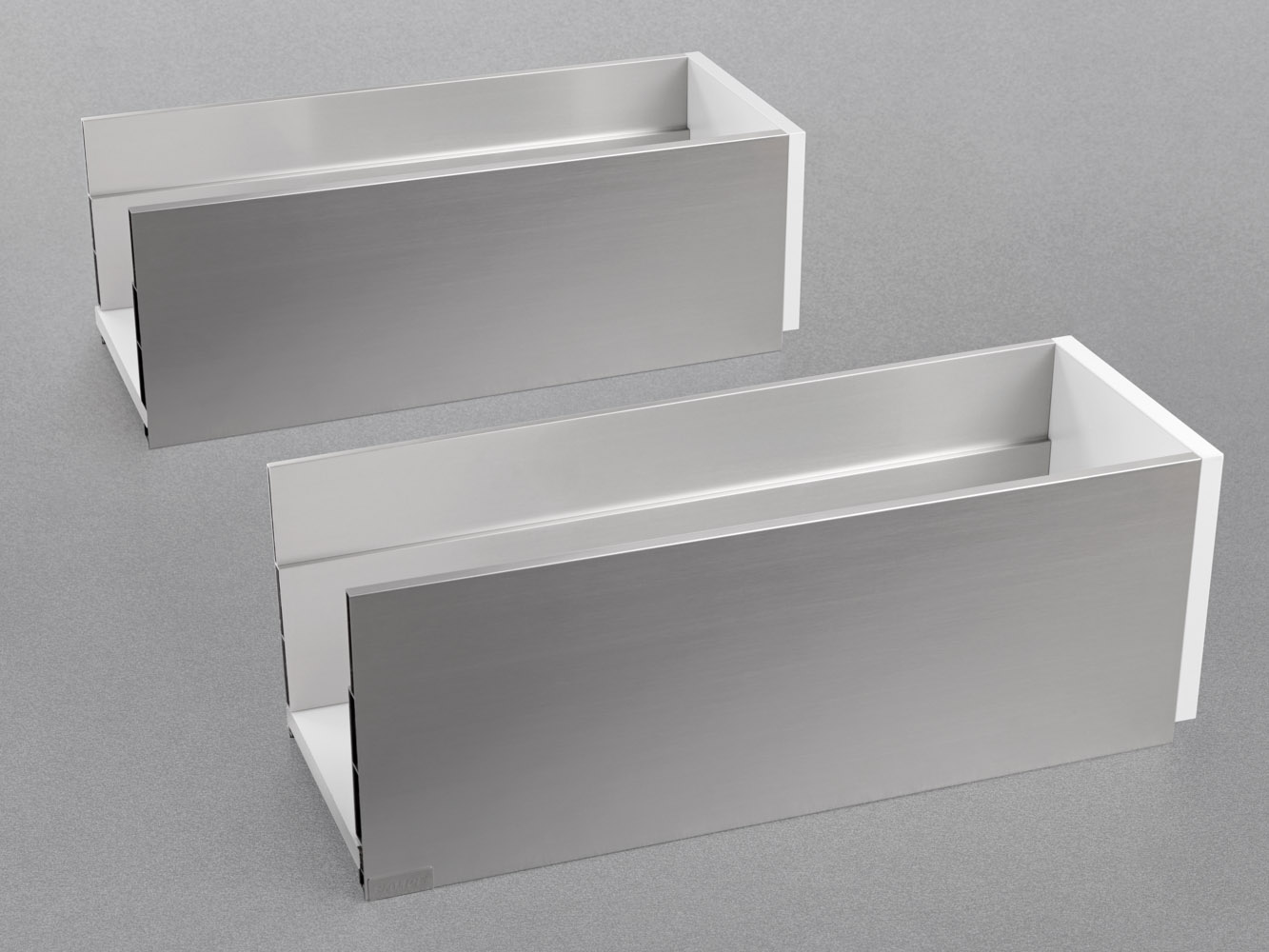

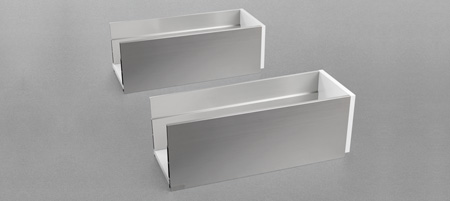

2-Sided - Under-sink drawer - H 178 mm
Height of the side 178 mm
Internal height 149 mm

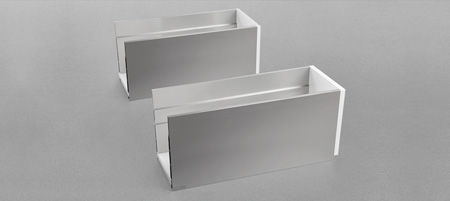

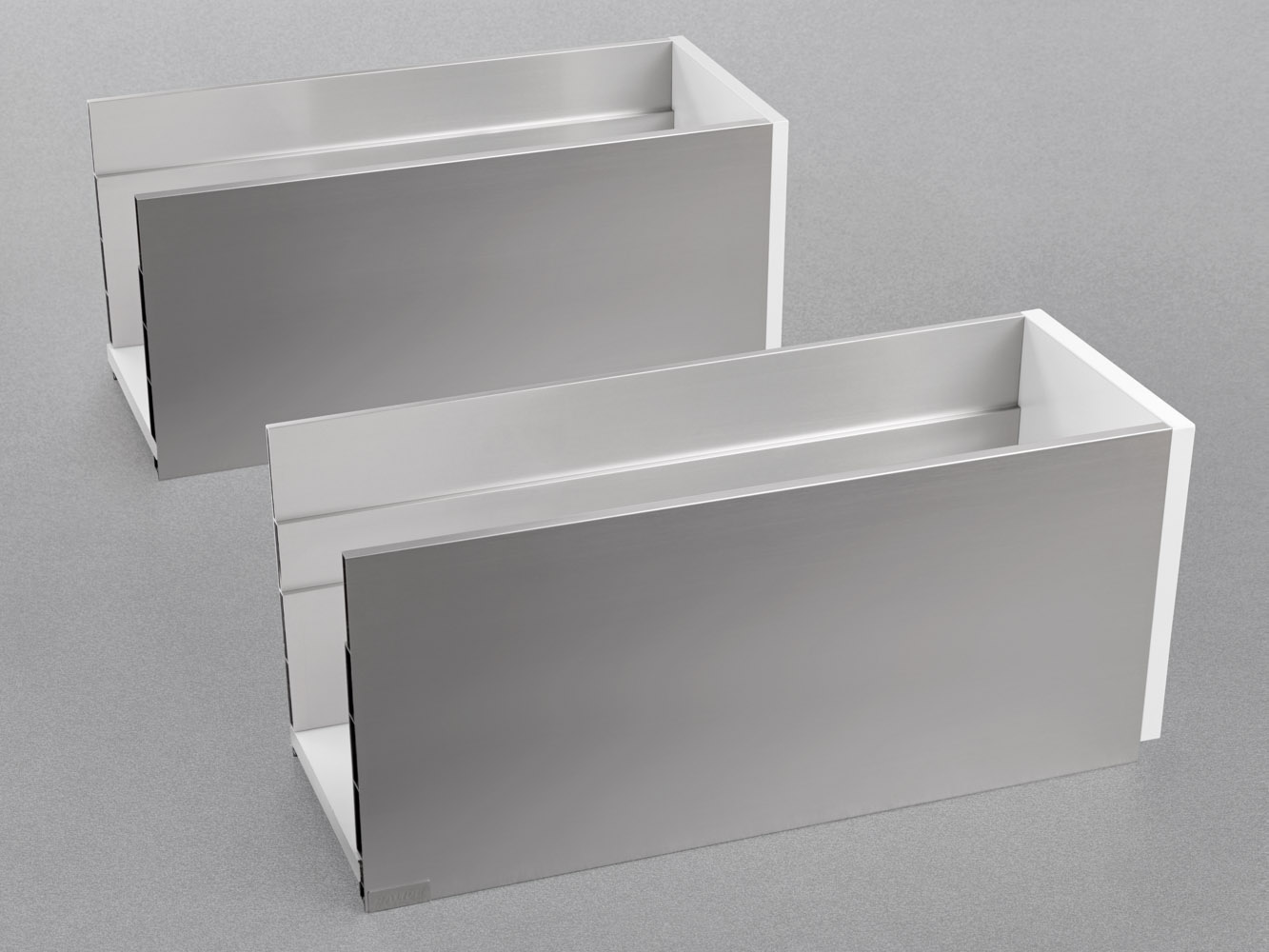

2-Sided - Under-sink drawer - H 237 mm
Height of the side 237 mm
Internal height 208 mm
AMGPXA3
Frontal and back connecting fitting
ASMGR12AGXA
Screw-on frontal and back fixing, screws for wooden frontal included (ø 3.5 x 20 mm)
ASMGR12AGCA
Knock-in frontal and back fixing
ASCCX83H_
Cover cap with embossed logo
ASCCX83H9: Nickel-plated
ASCCX83H6: Titanium
ASCXX83H9
Cover cap with silk-screen printed logo, it can be personalised on request
ASCXX83H9: Nickel-plated
AGDLXA6
Template for the drilling of the drawer frontal
AMDGXAO
Template for frontal and back connecting fitting
Farbausführungen
-
Metall WHITE -
Metall SLATE GREY -
Metall CHAMPAGNE -
Metall STAINLESS STEEL
