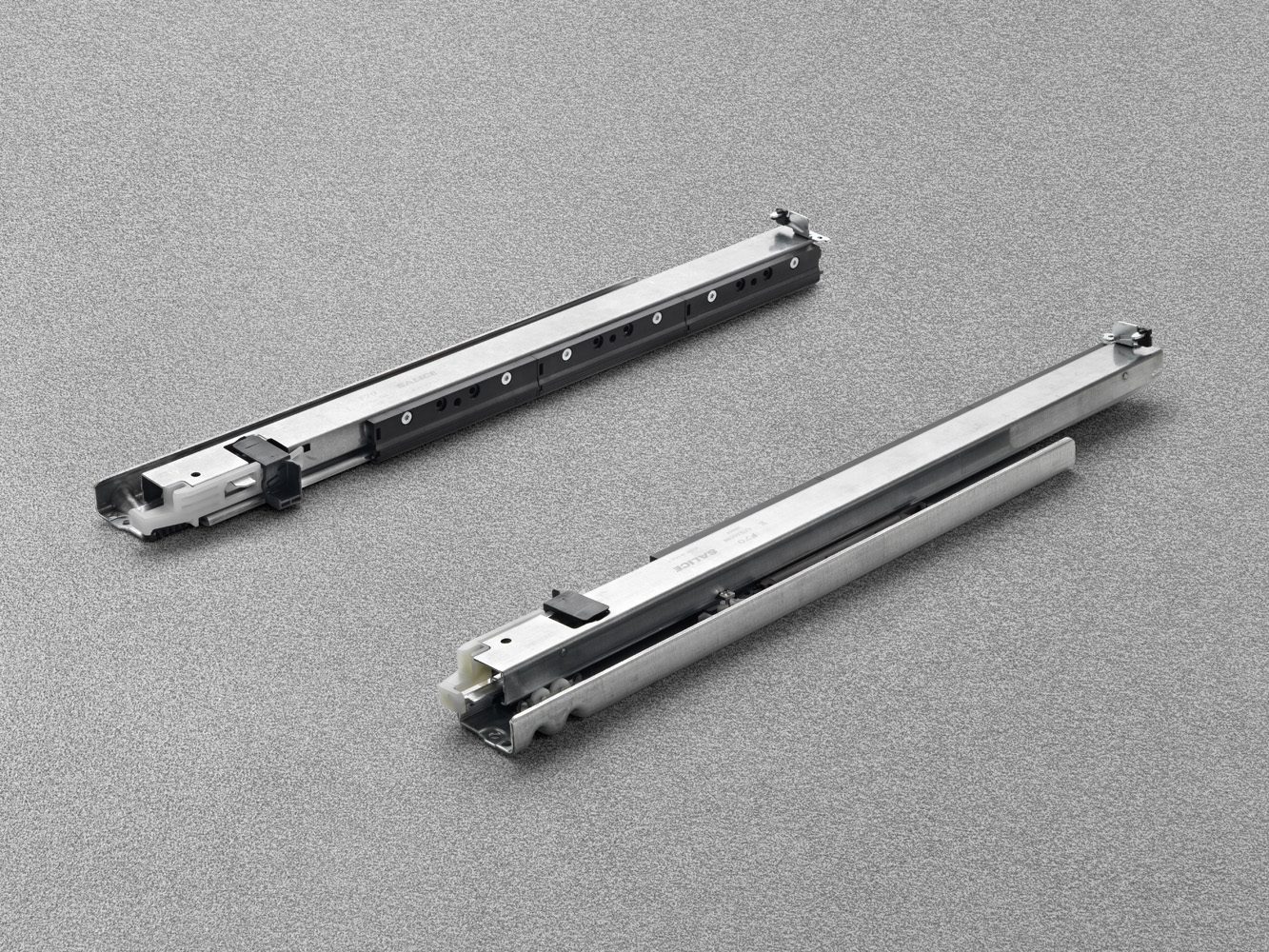

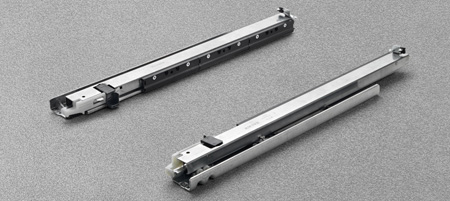

PROGRESSA+ SHELF PUSH

PUSH G7E6Q

Full-extension runner with a synchronized mechanism

170 Lbs (78 kg) Static Load Capacity
154 Lbs (70 kg) Dynamic Load Capacity
Available in 14” to 20” length (from 350 mm to 500 mm)
Integrated Push opening system

Slides assemble on bottom, can be used in any quantities to improve action.

With larger shelves, it is possible to increase the number of runners in order to improve the load capacity and the stability.

Need more info about the product?

A cutting-edge generation of high-performance, full extension slides.

Crafted using state-of-the-art technology, Progressa+ Shelf slides feature our “S Drive” progressive module, ensuring an unparalleled level of functionality. The rack and pinion guarantees impeccable synchronization, silent movement and optimal stability for a seamless user experience.

Find out more

170 Lbs (78 kg) Static Load capacity, 154 Lbs (70 kg) Dynamic Load capacity
Full extension with a synchronized mechanism
Integrated Push opening system
Available in 14” to 20” length (from 350 mm to 500 mm)
Tool free height adjustments +2.5 mm
Tool free depth adjustments +/- 3 mm
Tool free side adjustments + / - 1.5 mm
Safety system that prevents the shelves from turning over
The shelf is held in the closed position
Maximum reliability at an everyday price
100% Made in Italy

Versions

Components

Accessories

G7E6Q350XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 350 mm
Min. cabinet depth (PM): 360 mm

G7E6Q400XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 400 mm
Min. cabinet depth (PM): 410 mm

G7E6Q450XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 450 mm
Min. cabinet depth (PM): 460 mm

G7E6Q500XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 500 mm
Min. cabinet depth (PM): 510 mm

AFCGXX3B

Front locking devices - Standard mount - Side and depth adjustments

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Pre-drilling recommended ø 2.5 mm (3/32”).

APKF7X51150

Push Synchronizer

The synchronization system for Push-to-Open Progressa+ Shelf slides has been developed to ensure that wider shelves can be opened with minimum effort.
1 box = 20 single kits.

AROSXXY

Rear-fixed bracket and magnet

Lock-open function for runners and drawers The shelf is held at the maximum opening position by means of a rear-fixed bracket and a magnet.
1 box = 20 magnets, 20 brackets.
Screws included.

AGAPXXYI

Rear hook bracket

For shelves that are less than 12 mm thick, the runner can be used together with the rear hook bracket, thus eliminating the need for the rear hole in the shelf.
1 box = 100 pcs.

ASGD704U3XA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.
