Clean, simple lines with minimal wall thickness to maximize internal space
Streamlined aesthetics uncluttered with holes or assembly components. Lineabox is very versatile and highly customizable. Assembly is rapid without the need for machines or templates.

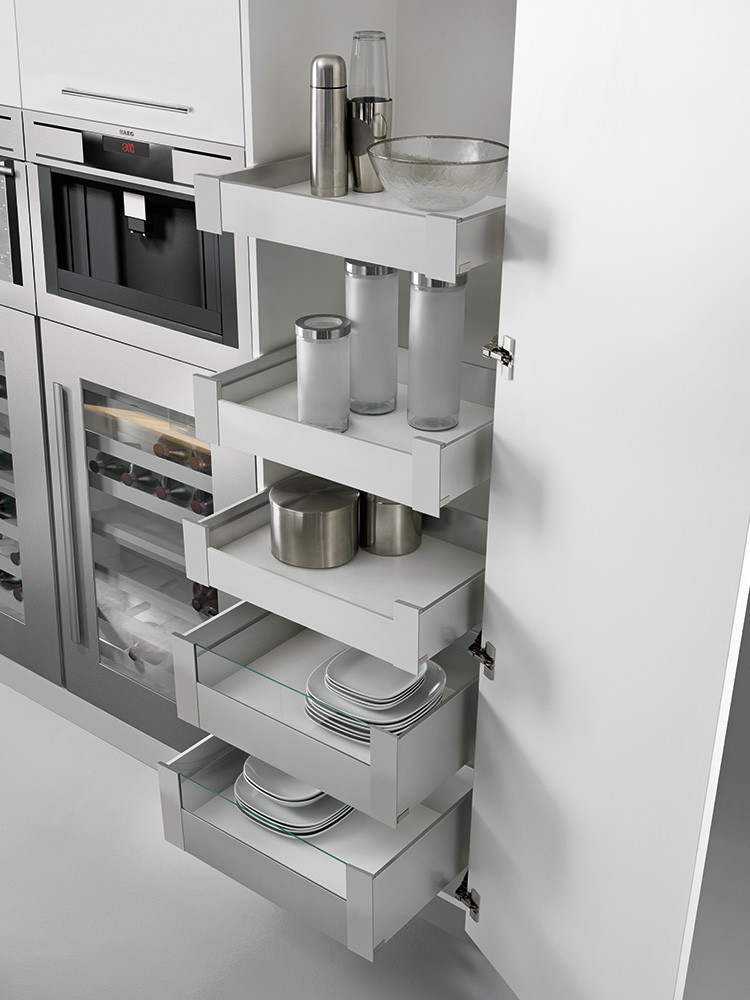

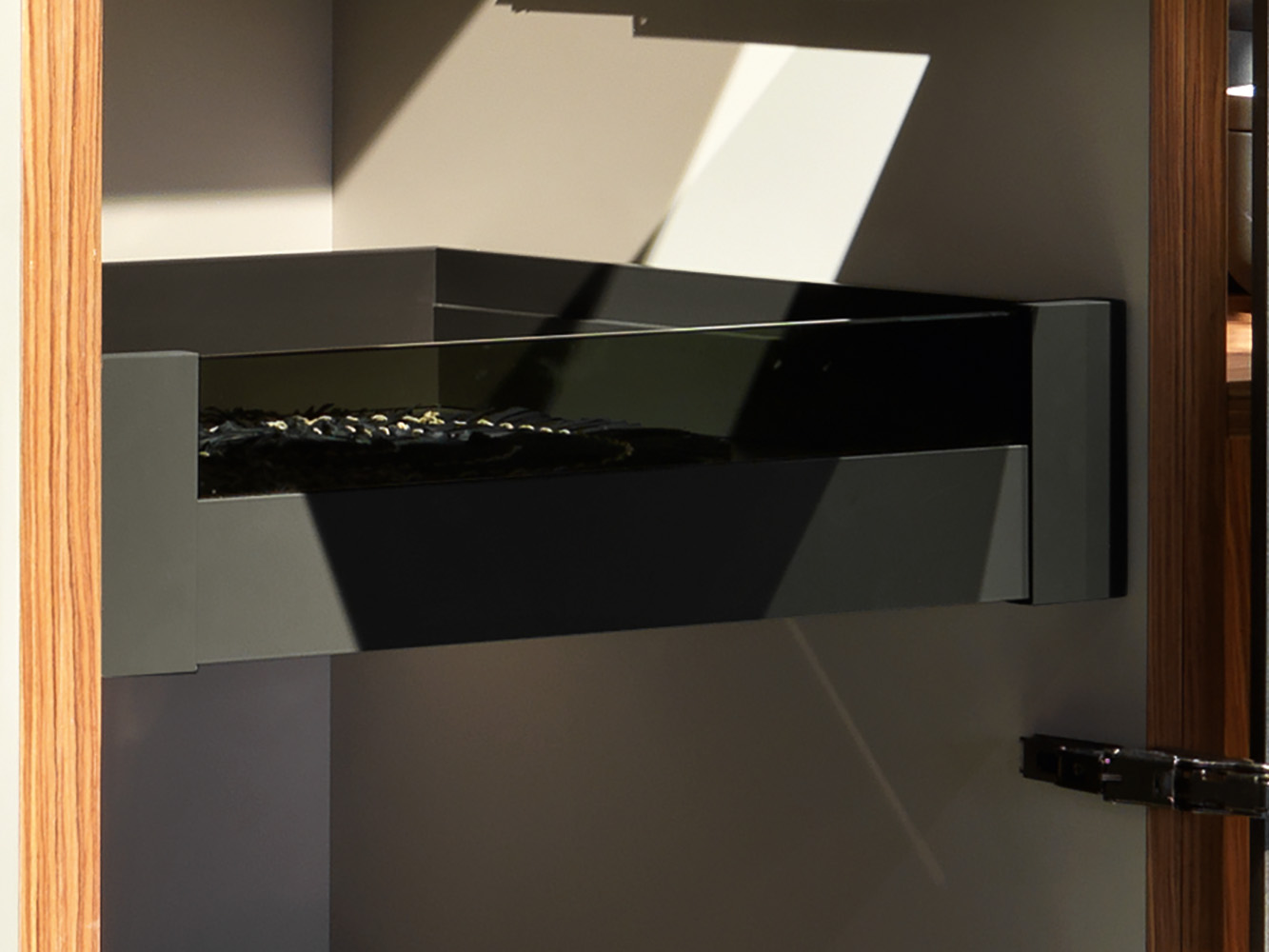

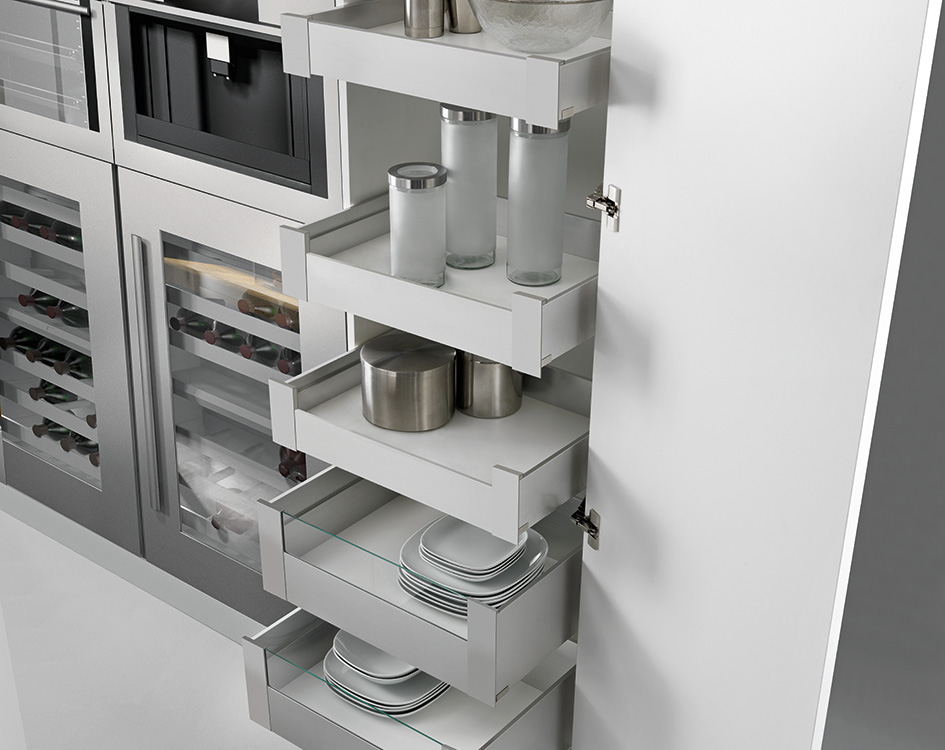

A light and thin drawer, suitable for all applications including: kitchens, living rooms, bathrooms and office furniture. Fluid, silent and progressive sliding movement, thanks to Futura and F70 full-extension runners.
- Height of Lineabox side 101 mm
- Max. height of front panel 126 mm
- For use with Futura and F70 full-extension runners
- Rapid assembly system, with no machinery or templates needed
- Rapid mounting and removal of front panel
- Can be personalized according to the width of the cabinet
- Height, sideways and depth adjustment of the drawer incorporated in the runner fixing clips
- Material:
- aluminum for Lineabox sides and front panel
- plastic for front panel adapters
- metal for covers - Finishes: White, Gray, Stainless steel

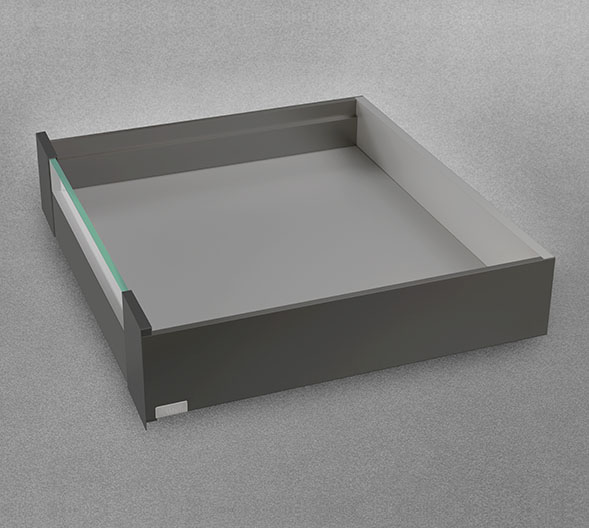

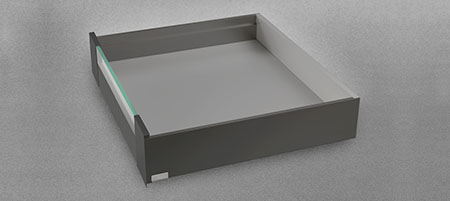

4-Sided Internal Drawer with insert - H 101 mm

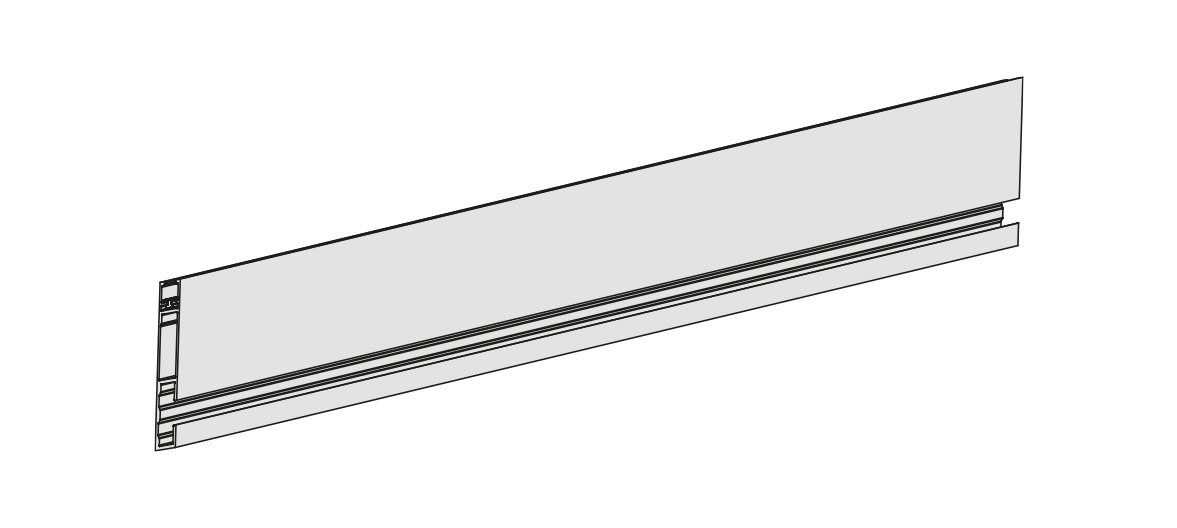

Front profile 1062 mm lenght
AMFLV411062F = White
AMFLV4G1062F = Gray
AMFLV4S1062F = Stainless steel
Gasket for glass included.
Design element not supplied.

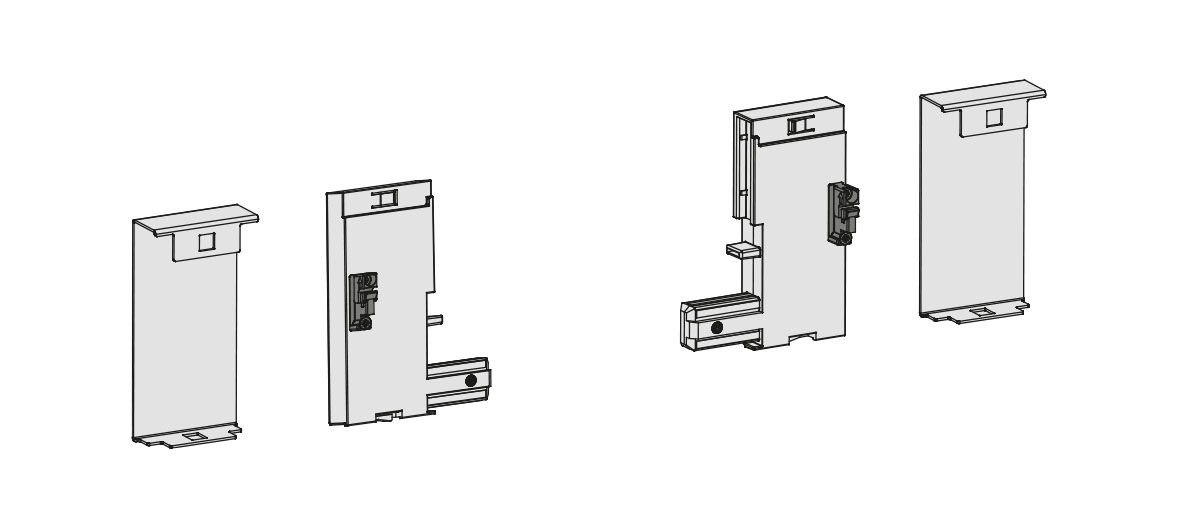

Front H126 mm - Side profile H101 mm
AMAMVU1F = White
AMAMVUGF = Gray
AMAMVUSF = Stainless steel
ASMGP12A3XA
Fixing clip for wood front and back
ASMGP12A3CA
Fixing clip for wood front and back
ASCCX83H9SN
Cover cap with embossed Salice logo
ASCXX83H9SN
Cover cap with silk-screen printed Salice logo
AMDGXAO
Template for frontal connecting fitting
A199800755010
Template for Futura runners
SGD704UGXA
Template for F70 runners
TLLNCLPHLDR
Insertion tool (Knock-In) for ASMGP12A3CA fixing clip for wood front and back
TDB740_R
Drill bit for rear hook
TDB7407R = ø 7 mm for Futura runners
TDB7406R = ø 6 mm for F70 runners
TLKEY332
L wrench to set and adjust
TSC07MM
Stop collar to set the correct depth
Technical information
Documentation
Technical pamphlet
Check out the functionality and aesthetics of all Salice products
LINEABOX
2-sided drawer - H 75 mm
Metal sides, wood sub-front and back panel
- Height of the metal side 75 mm
- Internal height 46 mm
- Wood thickness 16 mm (5/8")
- Aluminum
LINEABOX
2-sided drawer - H 101 mm
Metal sides, wood sub-front and back panel
- Height of the metal side 101 mm
- Internal height 72 mm
- Wood thickness 16 mm (5/8")
- Aluminum
LINEABOX
2-sided drawer - H 178 mm
Metal sides, wood sub-front and back panel
- Height of the metal side 178 mm
- Internal height 149 mm
- Wood thickness 16 mm (5/8")
- Aluminum
LINEABOX
2-sided drawer - H 237 mm
Metal sides, wood sub-front and back panel
- Height of the metal side 237 mm
- Internal height 208 mm
- Wood thickness 16 mm (5/8")
- Aluminum
LINEABOX
4-Sided Internal Drawer - H 75 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the front 100 mm
- Height of the side 75 mm
- Internal height 46 mm
- Aluminum
LINEABOX
4-Sided Internal Drawer - H 101 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the front 126 mm
- Height of the side 101 mm
- Internal height 72 mm
- Aluminum
LINEABOX
4-Sided Internal Drawer with gallery rail - H 178 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the front 203 mm
- Height of the side 178 mm
- Internal height 149 mm
- Aluminum
LINEABOX
4-Sided Internal Drawer with insert - H 178 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the front 203 mm
- Height of the side 178 mm
- Internal height 148 mm
- Aluminum
LINEABOX
Under-sink - 2-sided drawer - H 101 mm
Metal sides, wood sub-front and back panel
- Height of the side 101 mm
- Internal height 72 mm
- Bottom thickness 16 mm (5/8")
- Aluminum
LINEABOX
Under-sink - 2-sided drawer - H 178 mm
Metal sides, wood sub-front and back panel
- Height of the side 178 mm
- Internal height 149 mm
- Bottom thickness 16 mm (5/8")
- Aluminum
