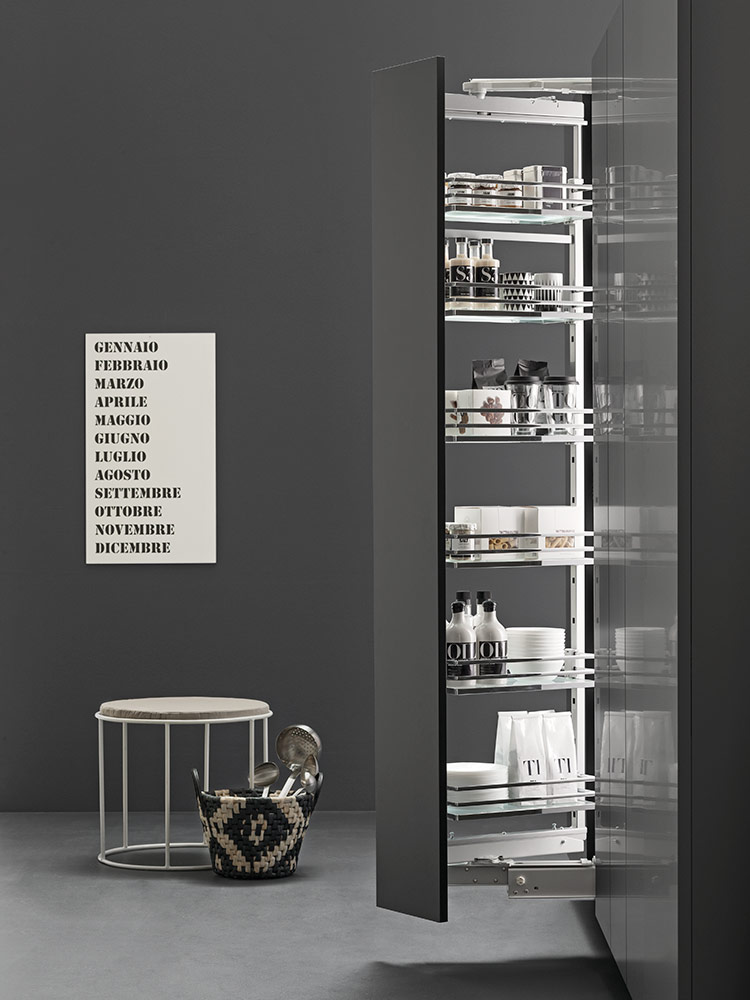

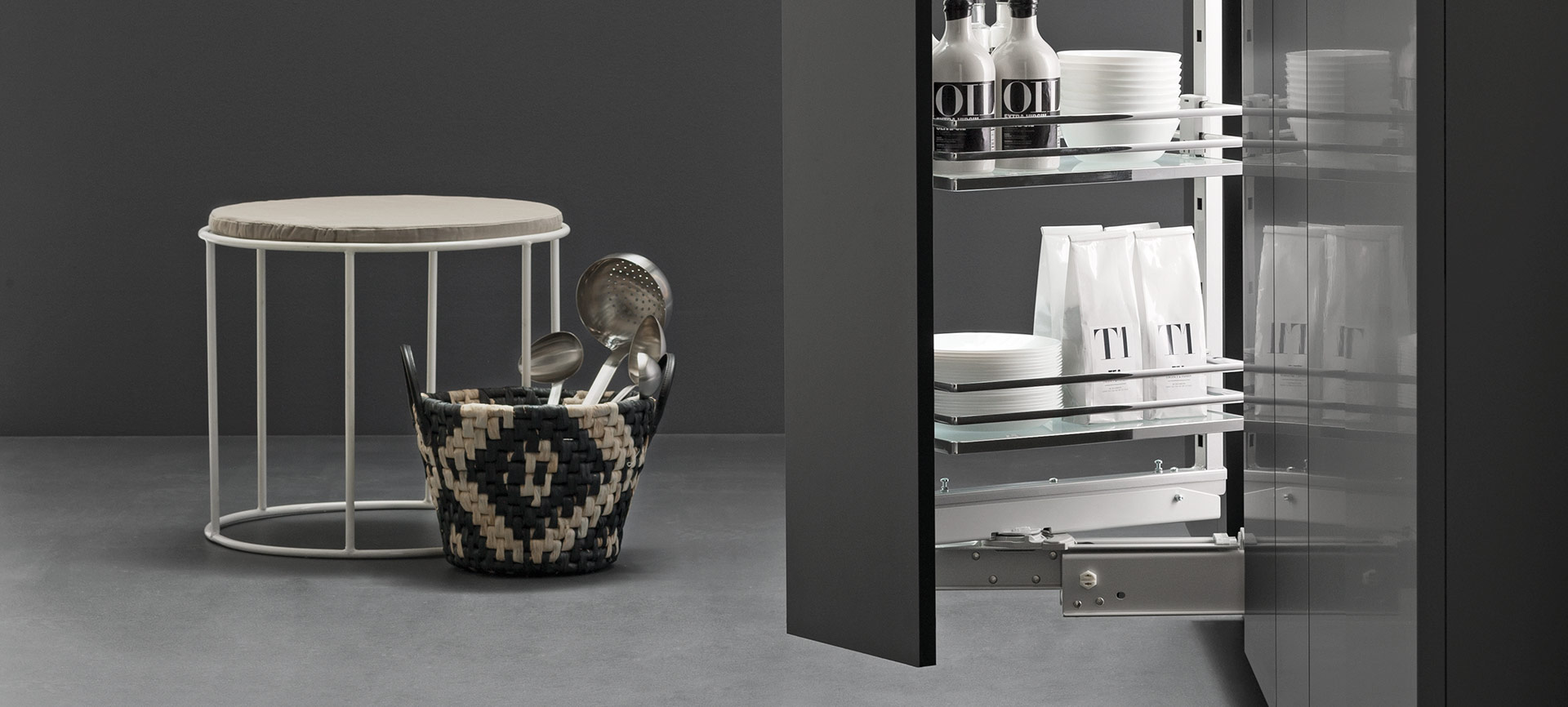

Functionality and space optimization.
- Slide: Full extension pivoting slide with soft close return. 90° rotation of the frame to the right or to the left side. Load capacity 220 lbs (100 kg).
- Brackets: Adjustable door-mounting bracket, fast application to frame internal holes. For doors over 7’ tall we suggest to use 3 door-mounting brackets.
Available in:
- VCH = Champagne finish
- VG = Gray finish - Frame: Height-adjustable frame, for overlay and inset doors.
Available in:
- VCH = Champagne finish
- VG = Gray finish - Basket: Easy insertion and removal, non slip melamine surface, height adjustable basket assembly.
Available in:
- VCH = Champagne wire/American maple melamine bottom
- C = Chrome wire/White melamine bottom
- GC = Chrome wire/Gray melamine bottom (Canada only)

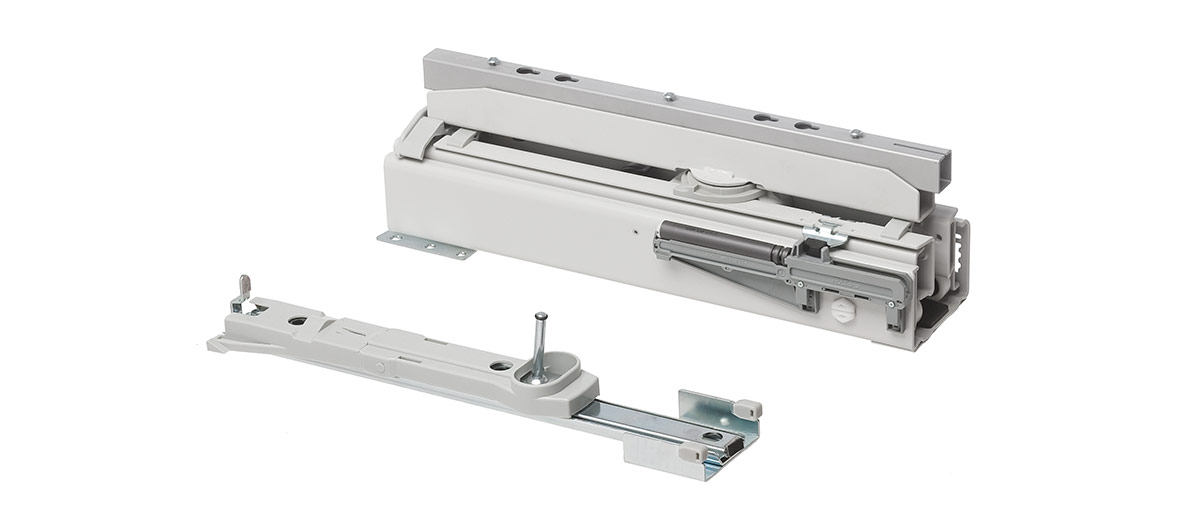

Slide QGCFTMR
Depth = 19-11/16"Height = 10-15/32"

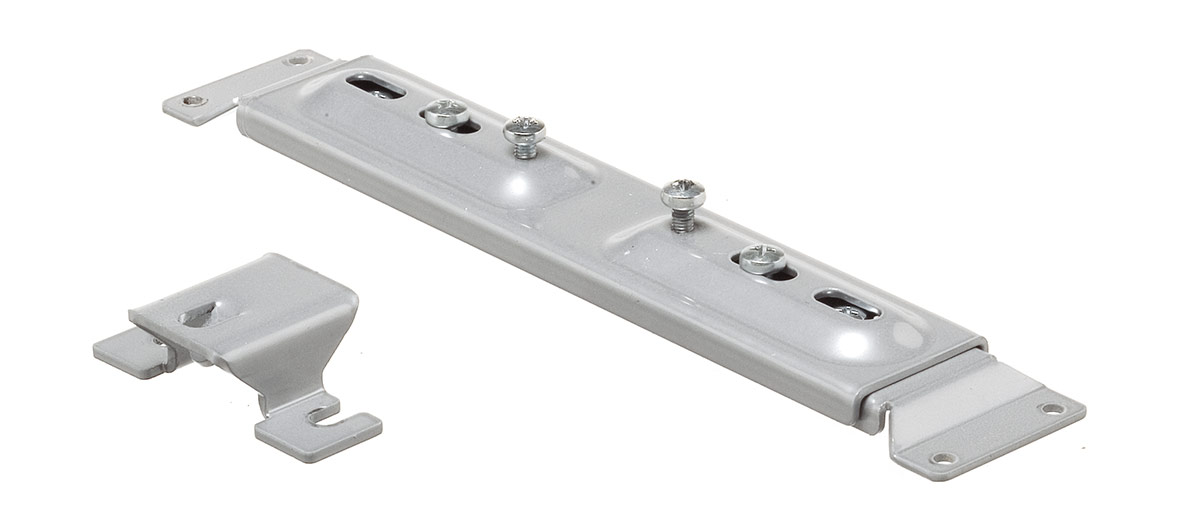

Bracket QCK130N
Depth = 1-5/8"Width = 9-7/8"
Height = 1-3/16"
Bracket QCK140N
Depth = 1-5/8"Width = 13-13/16"
Height = 1-3/16"
Bracket QCK145N
Depth = 1-5/8"Width = 15-3/4"
Height = 1-3/16"
Bracket QCK160N
Depth = 1-5/8"Width = 21-5/8"
Height = 1-3/16"

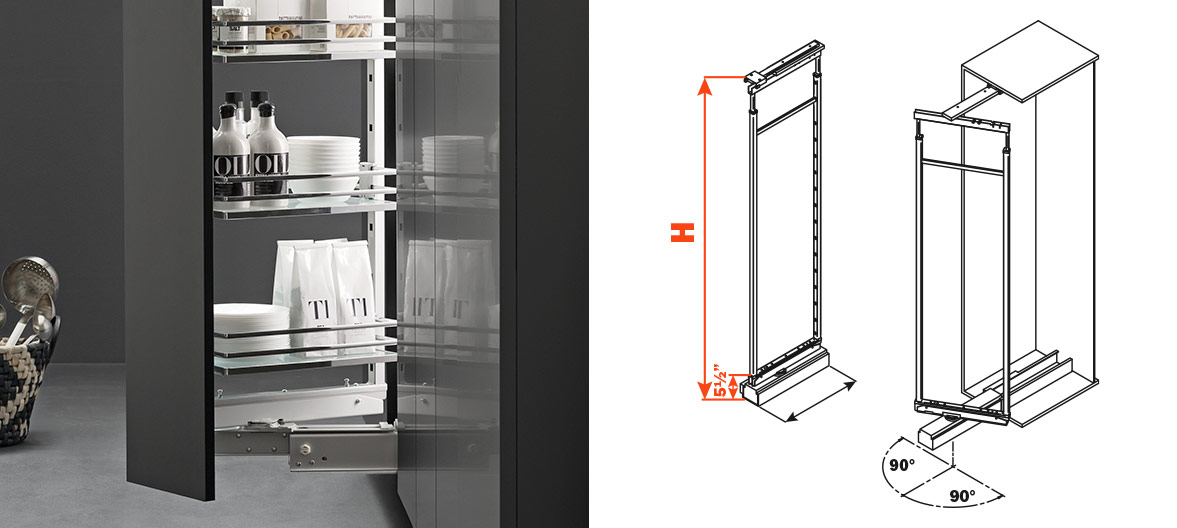

Frame QCE1204
Depth = 19-9/16"Width = 1-3/16"
Full set height: slide + frame = 46-7/32"- 63-17/32"
Recommended # of Baskets = 3
Frame QCE1604
Depth = 19-9/16"Width = 1-3/16"
Full set height: slide + frame = 61-31/32"- 79-9/32"
Recommended # of Baskets = 4
Frame QCE1904
Depth = 19-9/16"Width = 1-3/16"
Full set height: slide + frame = 73-25/32"- 91-3/32"
Recommended # of Baskets = 5

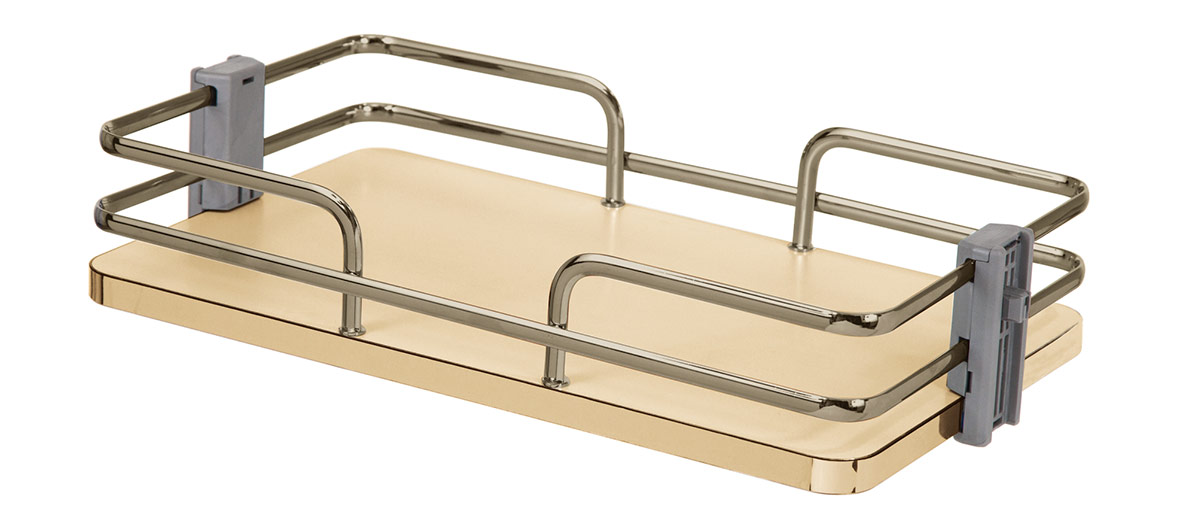

Basket QCC30ASAOM
Depth = 16-3/16"Width = 9-11/16"
Height = 3-11/16"
Basket QCC40ASAOM
Depth = 16-3/16"Width = 13-5/8"
Height = 3-11/16"
Basket QCC45ASAOM
Depth = 16-3/16"Width = 15-5/8"
Height = 3-11/16"
Basket QCC60ASAOM
Depth = 16-3/16"Width = 21-1/2"
Height = 3-11/16"
Technical information
Technical pamphlet - USA
Technical pamphlet - Canada
Check out the functionality and aesthetics of all Salice products
KITCHEN SPACE ORGANIZERS

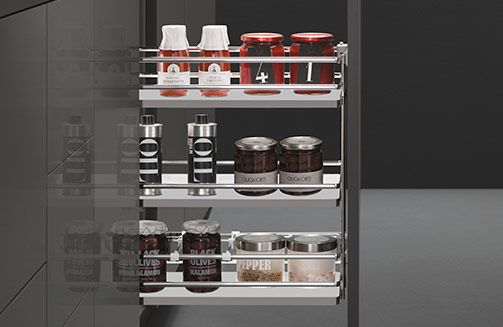

Pull-out base filler
Aesthetically attractive and extremely effective solutions for the kitchen
- Full extension soft close
- For frame and frameless cabinets
- Load capacity 75 Ibs (35 kg)
- 3-way door adjustment
- Comes fully assembled
KITCHEN SPACE ORGANIZERS

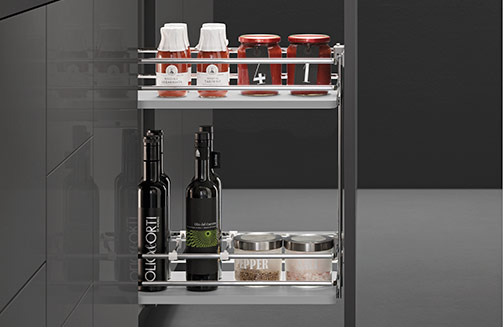

Pull-out organizer
Aesthetically attractive and extremely effective solutions for the kitchen
- Full extension soft close
- For frame and frameless cabinets
- Load capacity 75 Ibs (35 kg)
- 3-way door adjustment
- Comes fully assembled
KITCHEN SPACE ORGANIZERS

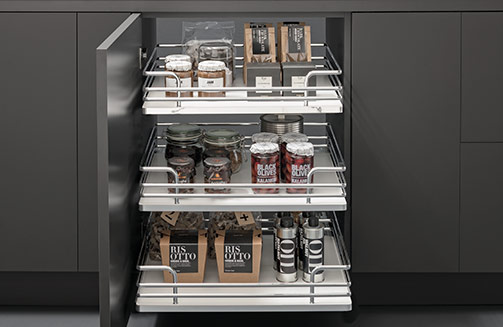

Wire pull out drawers
Aesthetically attractive and extremely effective solutions for the kitchen
- Easy drawer insertion and removal
- Full extension soft close
- For frame and frameless cabinets
- Load capacity 75 Ibs (35 kg)
- Side and bottom mount
KITCHEN SPACE ORGANIZERS

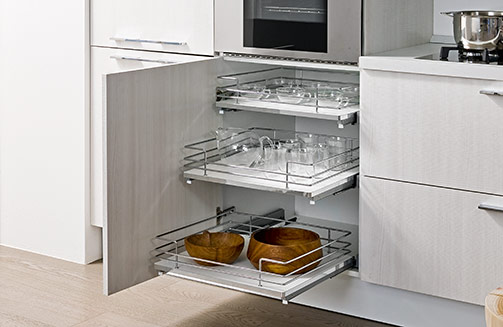

Spacers
Aesthetically attractive and extremely effective solutions for the kitchen
- Adjustable side mounted
- For face frame cabinets
KITCHEN SPACE ORGANIZERS

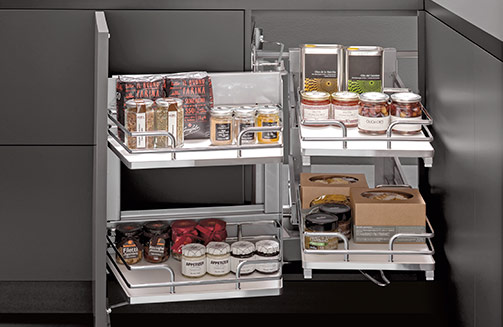

Smart corner
Aesthetically attractive and extremely effective solutions for the kitchen
- Easy assembly
- Full extension soft close
- Open in one movement
- For frameless cabinets
KITCHEN SPACE ORGANIZERS

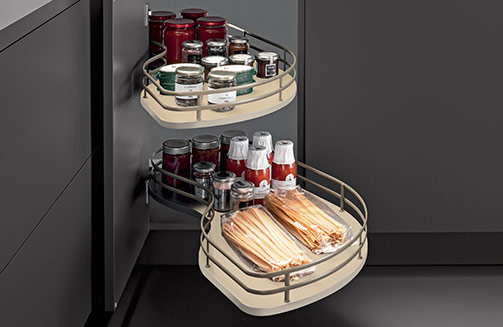

Fly moon
Aesthetically attractive and extremely effective solutions for the kitchen
- Height adjustable shaft
- Easy to install
- Load capacity 44 lbs (20kg) per shelf
KITCHEN SPACE ORGANIZERS

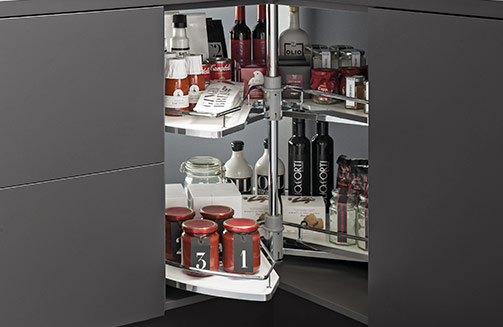

Swivel carousels
Aesthetically attractive and extremely effective solutions for the kitchen
- Independent shelf rotation for easy access
- Non slip melamine surface
- For frame and frameless cabinets
KITCHEN SPACE ORGANIZERS

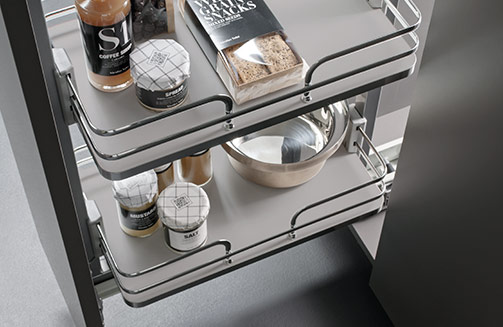

Straight pantry unit
Aesthetically attractive and extremely effective solutions for the kitchen
- Soft close return
- Load capacity 265 lbs (120 kg)
KITCHEN SPACE ORGANIZERS

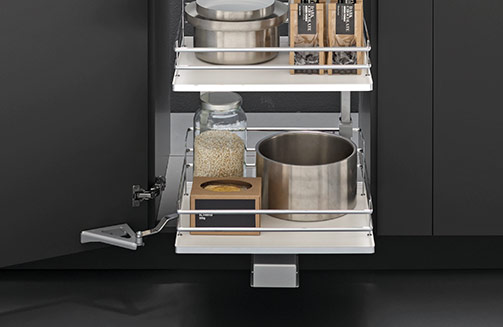

Maxi pantry unit
Aesthetically attractive and extremely effective solutions for the kitchen
- Easy fit system
- Load capacity 175 lbs (80 kg)
- Requires 165° opening hinges
KITCHEN SPACE ORGANIZERS

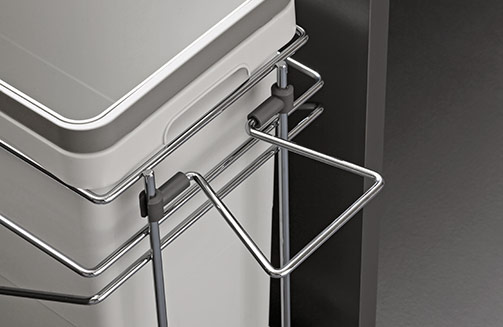

Waste / Recycle
Aesthetically attractive and extremely effective solutions for the kitchen
- Bottom mount or side mount
- Full extension
- Soft close
- Easy installation
- The adjustable door mount bracket allows to be used on various door widths
KITCHEN SPACE ORGANIZERS

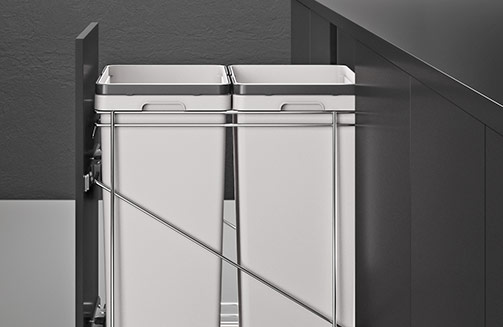

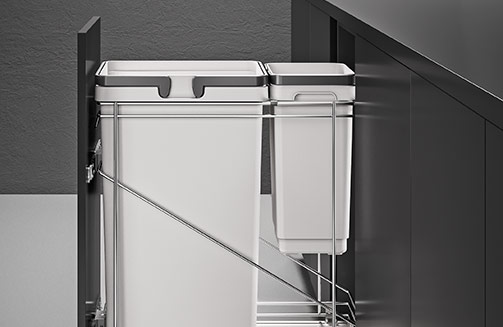

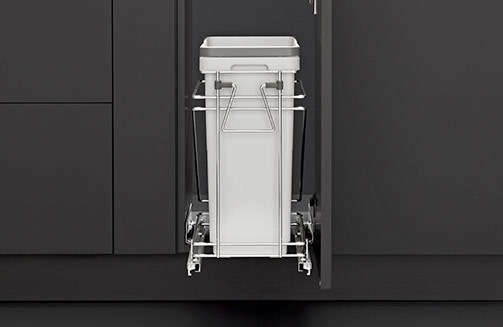

Waste recycle pullouts
Aesthetically attractive and extremely effective solutions for the kitchen
- Soft close
- Wire bottom
- Full extension (500mm)
- The adjustable door mount bracket allows to be used on various door widths
KITCHEN SPACE ORGANIZERS

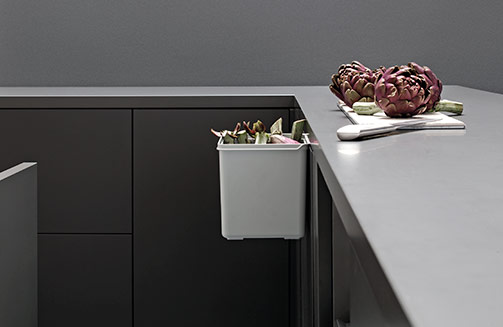

Waste recycle accessories
Aesthetically attractive and extremely effective solutions for the kitchen
- Small bins
- Standard waste bins
- Accessories
KITCHEN SPACE ORGANIZERS

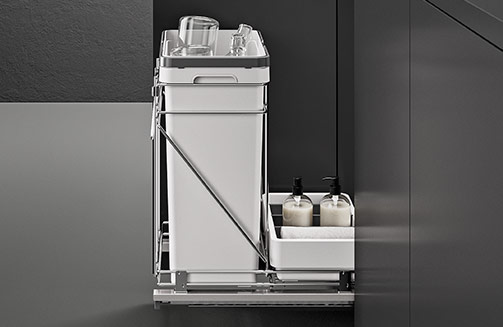

Under the sink pullouts
Aesthetically attractive and extremely effective solutions for the kitchen
- Bottom mount
- Full extension
- Soft close
- Easy installation with only 4 wood screws
- Integrated handle
KITCHEN SPACE ORGANIZERS
Single 50qt waste recycle pullout
Aesthetically attractive and extremely effective solutions for the kitchen
- Adjustable door mount bracket
- Bottom mounted
- Full extension
- Soft close
KITCHEN SPACE ORGANIZERS
Double 50qt waste recycle pullout
Aesthetically attractive and extremely effective solutions for the kitchen
- Adjustable door mount bracket
- Bottom mounted
- Full extension
- Soft close
KITCHEN SPACE ORGANIZERS

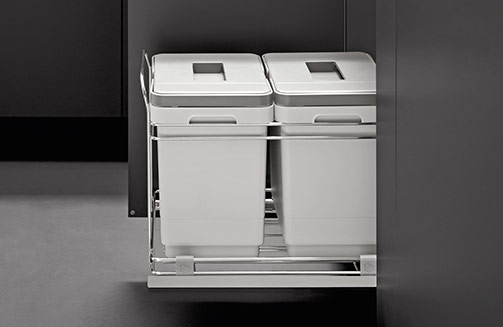

Under the sink pullouts - for 15" base cabinet
